Coaxial horizontal flue 7738112495 is additionally required

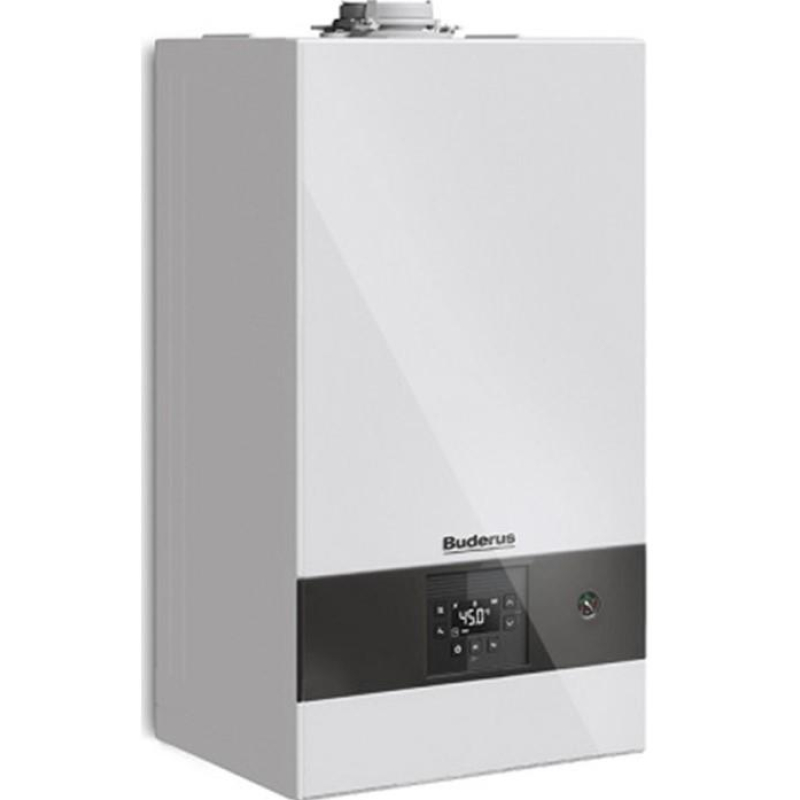

Extremely wide modulation range of 1:10 provides
heat output from 2.4 to 24 kW. This allows Logamax
plus GB122i to meet basic heating and
hot water needs and makes it highly efficient
in terms of energy consumption. The nominal
fuel utilization factor is 109%. The gas
boiler has a high nominal heat output of up to
24 kW in heating mode and 30 kW in hot
water supply mode, which means you can get
enough hot water at any time.
Convenient connection.
The boiler weighs less than 36 kg, and the side panels are removable,
providing the necessary access to the boiler components
during maintenance. This saves you time and money.
Elegant and practical.
The improved, compact, and reliable design allows
Logamax plus GB122i to fit easily and stylishly into any
room, including thanks to the hydraulic connections
located under the appliance and invisible from the front. The boiler also
has a depth of only 300 mm and a height of 710 mm, allowing
it to be installed in the tightest spaces.
Convenient control.
Logamax plus GB122i has a backlit LCD display.
Boiler control is quite simple and
intuitive. EMS bus support and built-in
weather-compensated control function allow
all Logamatic line devices to be used. With the use of the
Logamatic control system, taking into account outdoor and
indoor temperatures, the boiler has an energy efficiency class of A+.
Remote control via the Internet.
With the smart heating controller Logamatic
TC100.2, you can easily control the heating system from a tablet or mobile
phone from anywhere, at any time

Minimum nominal heat output (80/60 °C) - 3 kW

Maximum nominal heat output (80/60 °C) - 24 kW

Maximum nominal heat output (50/30 °C) - 25 kW

At 30% nominal heat output and low-temperature operation - 8.0 kW

Max. supply line temperature - 82°C

Diaphragm expansion tank volume - 6 l

Max. nominal heat load, heating system - 24.5 kW

power connection - 230 V

electrical frequency - 50 Hz

Degree of protection (EN 60529) - "IPX4D, B23/B53

Maximum power consumption - 110 W

net weight - 36 kg

width - 400 mm

height - 710 mm

depth - 300 mm

Heating system supply / return line connection - 3/4"

gas connection 3/4"

Supply and return line connection 1/2"

Nominal heat output 24 kW

Seasonal space heating energy efficiency 94 %

Hot water heating energy efficiency 85 %
