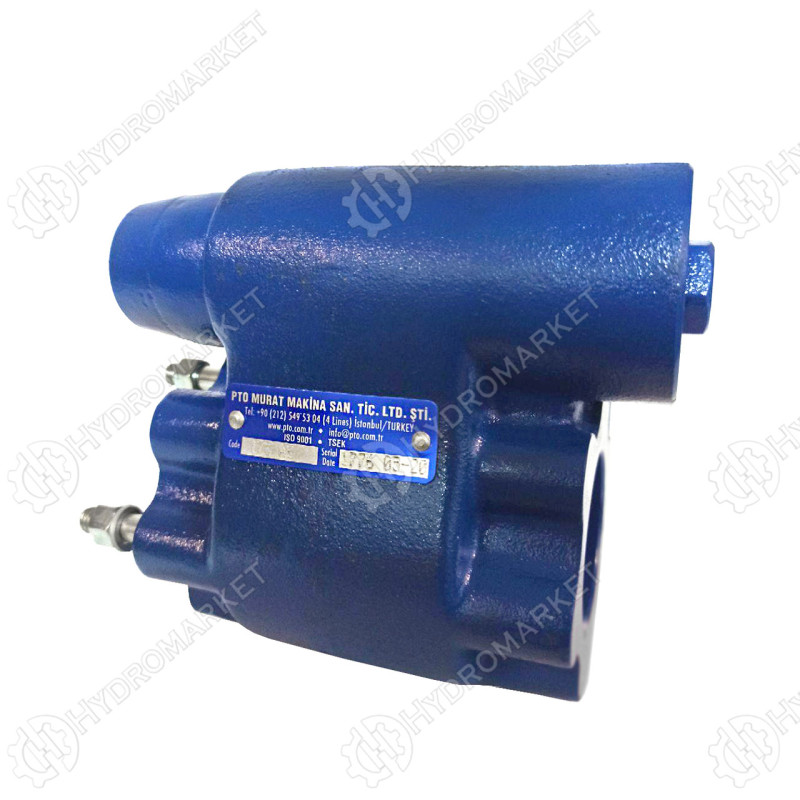

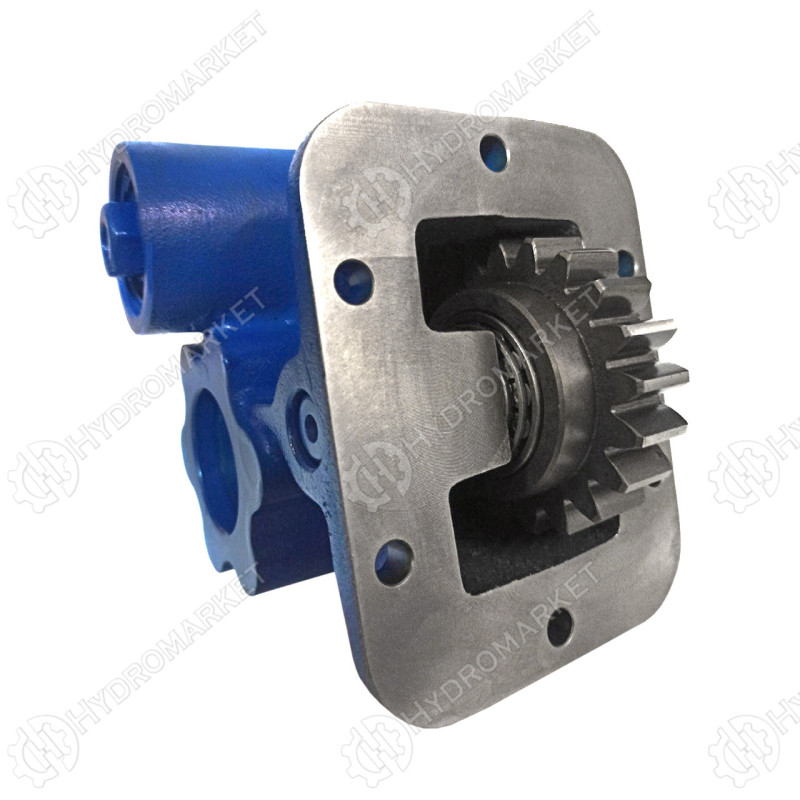

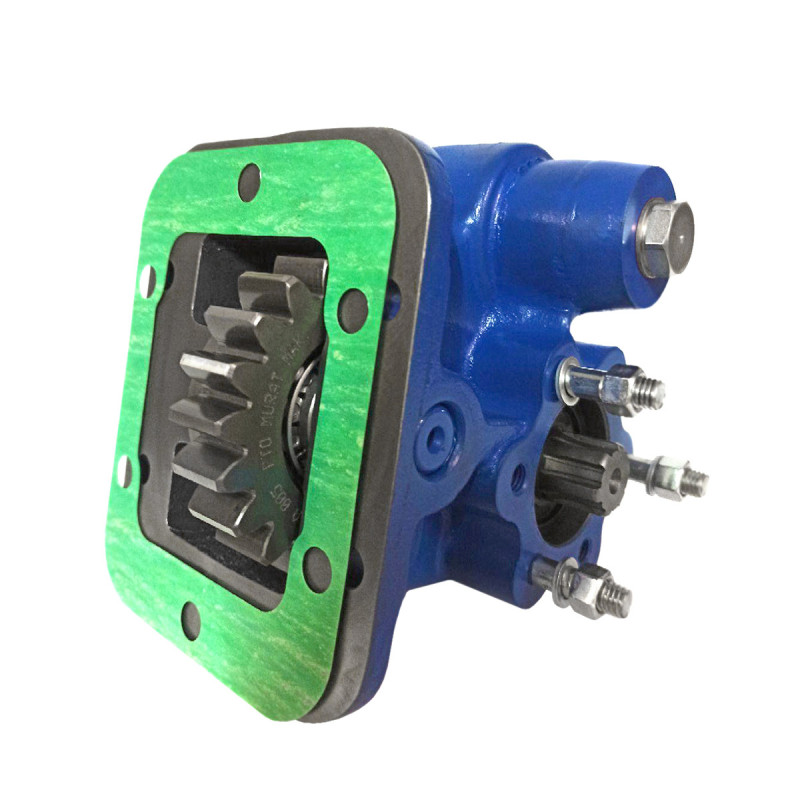

Power Take-Off (PTO) KamAZ 14-100, 15-100 UNI 320 Nm MURAT MAKINA

We offer the Murat Makina 173AE two-gear power take-off (PTO) unit, designed for installation on KamAZ 14-100 and 15-100 gearboxes, and also compatible with EATON 475 SMA. This PTO, manufactured by PTO Murat Makina (Turkey), is created as a reliable solution for mobile hydraulic systems and dump trucks, where economy, stable power delivery, and ease of maintenance are important.

The 173AE power take-off unit is equipped with a pneumatic control system, ensuring precise engagement and disengagement of the hydraulic pump drive. The model features a two-gear design, providing an optimal balance of size and transmission capacity with a low weight of 13 kg, which simplifies installation and reduces the load on transmission components.

Compatibility with Equipment

The gearbox is installed on popular truck models, including:

• KAMAZ 4310, KAMAZ 52212, KAMAZ 5320, KAMAZ 53212, KAMAZ 5410, KAMAZ 54112, KAMAZ 55102, KAMAZ 5511
• IVECO 26.28, IVECO 28.26, IVECO 35
• ZIL 130, ZIL 157
• GAZ 3307, GAZ 3308, GAZ 3309

Key Parameters

• Product Code: 173AE
• PTO Type: 2-gear
• Power: 33 kW
• Torque: 320 Nm
• PTO Installation Location: left / right side
• Control System: pneumatic
• PTO Shaft Rotation Direction: ↺ left / ↻ right
• Pump Shaft Rotation: ↻ right / ↺ left
• Connection Standard: UNI 8953 / 21 UNI 222 / 6x21x25
• Weight: 13 kg

The Murat Makina 173AE model is ideal for use in agricultural, construction, and municipal machinery where it is necessary to transmit power from the gearbox to a hydraulic pump. Pneumatic control ensures a long service life and ease of operation in challenging conditions. In combination with the UNI connection standard, this PTO provides reliable fastening and compatibility with a wide range of pumps and aggregates.

By choosing the Murat Makina 173AE power take-off unit, you get a reliable component from the Turkish manufacturer PTO Murat Makina, tested for operation with KamAZ gearboxes and other compatible transmissions, which will ensure efficient power transmission of 33 kW and torque of 320 Nm for your hydraulic systems.
