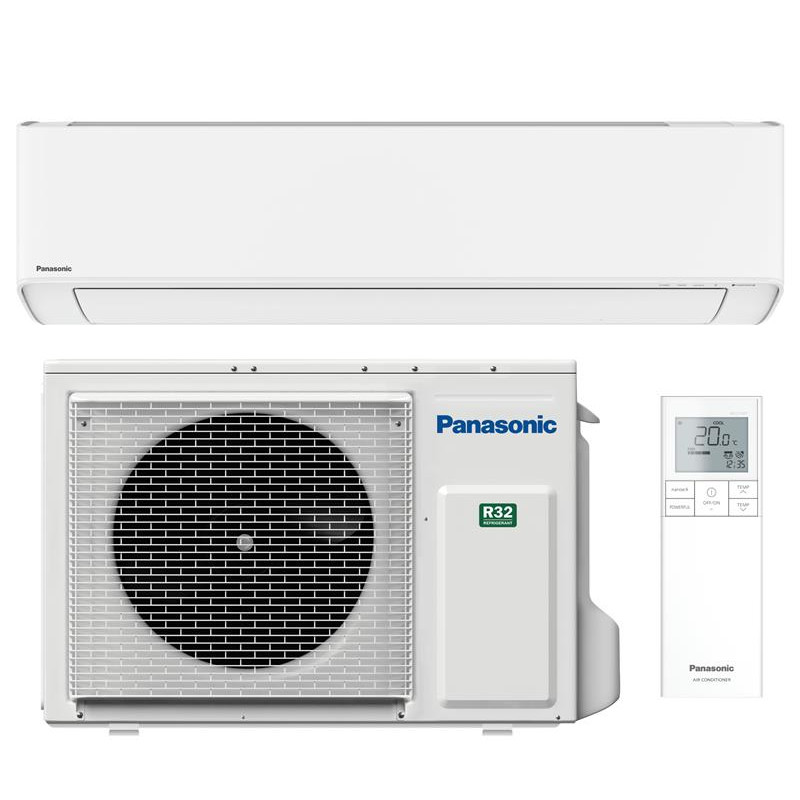

An air conditioning solution for smart homes that will provide your interiors with clean air and ultimate comfort. The new Panasonic Etherea home air conditioner series features nanoe™ X technology, which uses hydroxyl radicals. This revolutionary nanoe™ X air purification system helps remove and deactivate 99% of bacteria, viruses, and inhibit mold growth both in the air you breathe and on surfaces of clothes, blankets, carpets, etc. With advanced control capabilities, exceptional performance, stylish finish, and smart features, Etherea will keep your rooms clean and comfortable. This air conditioner creates comfort and purifies indoor air, all combined with a modern design.

The air conditioner is available in various colors: matte white (Z series), matte silver, "unpolished aluminum" imitation (XZ series), and matte black (XZ-H).

In addition, the system uses new environmentally friendly and highly ozone-safe R32 refrigerant. The air conditioner operates in heating, cooling, dehumidification, and ventilation modes.

Key features of Panasonic CS/CU XZ Etherea:

• High quality manufacturing
• BMS connectivity (ability to connect to a "Smart Home" system)
• Inverter+
• Individual airflow control
• High-quality twin-rotary R2 compressor
• Low noise level (only 19 dBA)
• Highest energy efficiency class - A+++ and A+++
• Stable operation at low temperatures down to -20°C
• Modes - cooling, heating, and dehumidification
• R32 refrigerant - new ozone-safe refrigerant
• 5-year warranty on the compressor
• Self-cleaning of the indoor unit with nanoe™ X to inhibit bacteria, viruses, and mold up to 99%
• nanoe™ X, technology that harnesses the benefits of hydroxyl radicals – greater indoor safety 24/7 (nanoe™ X Mark 3 generator)
• Elegant and stylish design
• Improved SEER parameters for even greater efficiency
• Aerowings 2.0 louvers for maximum comfort
• Easy-to-use remote control
• Built-in Wi-Fi module for quick connection to the Panasonic Comfort Cloud app
• Compatible with Amazon Alexa and Google Assistant
• Details designed for easy installation
• Optional: possibility to install a separate wall-mounted control panel CZ-RD517C

With built-in Wi-Fi and any iOS/Android smartphone, you can control the air conditioner remotely. All you need is to download the special Panasonic Comfort Cloud app and have internet access.

Through the app, the user gets full access to the Panasonic air conditioner's functionality. It is possible to select the operating mode, adjust the air temperature and the intensity of the indoor unit's fan, the user can monitor electricity consumption, and also set an hourly timer.

TECHNICAL SPECIFICATIONS:

Cooling Capacity, Nominal (min. - max.), kW: 5.00 (0.98 - 6.00)

EER, Nominal (min. - max.), W/W: 3.68 (3.92 - 3.16)

SEER: 8.50 (A+++)

Pdesign (cooling), kW: 5.0

Input Power, Nominal (min. - max.), kW: 1.36 (0.25 - 1.90)

Annual Energy Consumption, kWh: 206

Heating Capacity, Nominal (min. - max.), kW: 5.80 (0.98 - 8.00)

Heating Capacity at -7 °C, kW: 4.80

COP, Nominal (min. - max.), W/W: 4.14 (4.26 - 3.35)

SCOP: 4.80 (A++)

Pdesign at -10 °C, kW: 4.2

Input Power, Nominal (min. - max.), kW: 1.40 (0.23 - 2.39)

Annual Energy Consumption, kWh: 1225

Indoor Unit

Power Supply, V: 230

Recommended Fuse, A: 16

Connection Indoor / Outdoor, mm²: 4x2.5

Airflow, Cooling / Heating, m³/min: 17.4 / 19.1

Moisture Removal Volume, L/h: 2.8

Sound Pressure

Cooling (Hi/Lo/Q-Lo), dB(A): 44 / 37 / 30

Heating (Hi / Lo / Q-Lo), dB(A): 44 / 37 / 30

Dimensions, H x W x D, mm: 295 x 1040 x 244

Net Weight, kg: 12

nanoe X Generator: Mark 3

Outdoor Unit

Airflow, Cooling / Heating, m³/min: 39.8 / 36.9

Sound Pressure, Cooling / Heating (Hi), dB(A): 47 / 47

Dimensions, H x W x D, mm: 695 x 875 x 320

Net Weight, kg: 40

Piping Diameter

Liquid, inch, (mm): 1/4 (6.35)

Gas, inch (mm): 1/2 (12.70)

Pipe Length Range, m: 3~30

Height Difference (in/out), m: 15

Pre-charged Pipe Length, m: 7.5

Additional Gas Quantity, g/m: 15

Refrigerant (R32) / CO2 equivalent, kg/T: 1.13 / 0.76

Operating Range

Cooling, Min ~ Max, °C: -10~+43

Heating, Min ~ Max, °C: -20~+24
