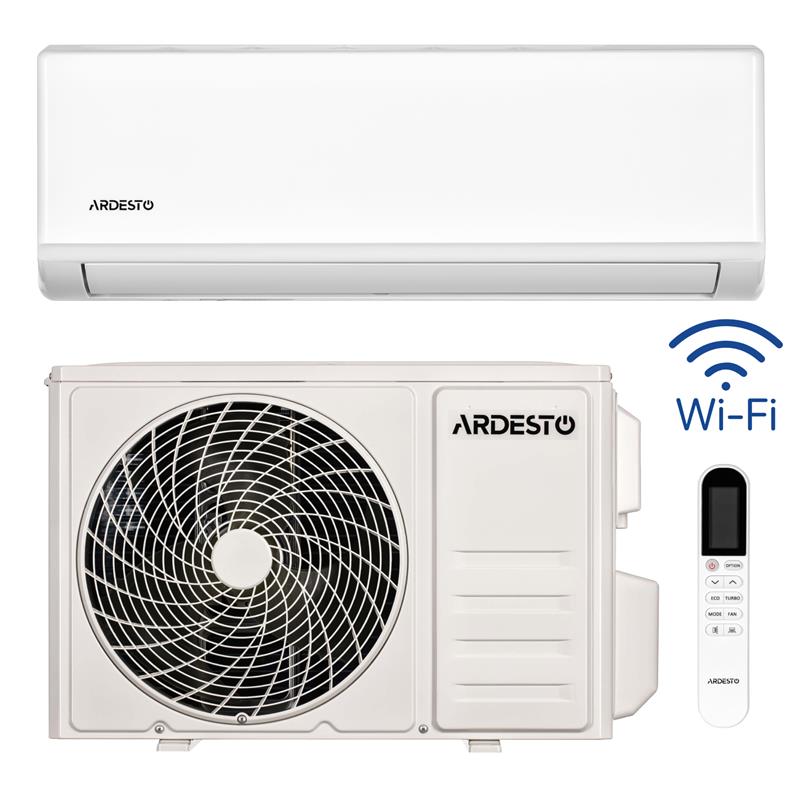

ARDESTO CoolAir Air Conditioners – Comfort in Any Season

The ARDESTO CoolAir air conditioner series is designed for those who value reliability, convenience, and modern technology. These devices provide efficient cooling in summer and heating at temperatures down to -7 °C in winter.

Thanks to the use of environmentally safe R32 refrigerant, the air conditioners are not only energy-efficient but also less harmful to the environment. The built-in Wi-Fi module allows you to control the indoor climate directly from your smartphone – from home or remotely.

ARDESTO CoolAir – Comfort technologies in your home.

TECHNICAL SPECIFICATIONS

CoolAir Series: ARD-ACS12

Indoor Unit: ARD-ACS12/IN

Outdoor Unit: ARD-ACS12/OUT

Power Supply, V/Ph/Hz: 220-240~/1/50

Cooling

Power Consumption, W: 1005

Rated Capacity, BTU/h: 11000

Rated Current, A: 4.8

Energy Efficiency SEER (Class): A

Heating

Power Consumption, W: 975

Rated Capacity, BTU/h: 12000

Rated Current, A: 4.7

Energy Efficiency SCOP (Class): A

Rated Power Consumption, W: 1005

Maximum Current, A: 9.5

Indoor Unit Noise Level (S/H/M/L/Mute), dB(A): 42/40/37/34/31

Indoor Unit

Dimensions (WxDxH), mm: 777×250×201

Packaged Dimensions (WxDxH), mm: 840×315×260

Net / Gross Weight, kg: 7.2/9.2

Outdoor Unit Noise Level, dB(A): 50

Outdoor Unit

Dimensions (WxDxH), mm: 777×290×498

Packaged Dimensions (WxDxH), mm: 818×325×515

Net / Gross Weight, kg: 25.0/29.0

Refrigerant Type / Weight, grams: R32/440

Refrigerant Piping, Liquid / Gas, mm (inch): 6.35(1/4'')/9.52(3/8'')

Maximum Piping Length, m: 15

Maximum Height Difference, m: 5

Operating Temperature Range (Cooling / Heating), °C: 15 to 43 / -7 to 24
