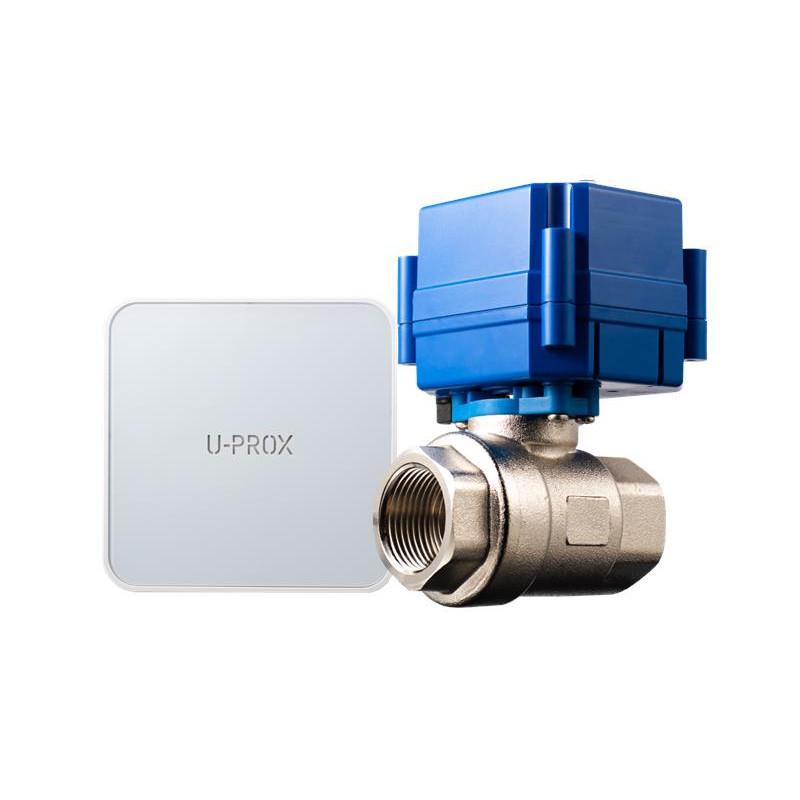

The U-Prox Valve DN15 is a wireless electric actuator for controlling a shut-off valve in a water supply system. The device is designed for automatic water shut-off in case of leakage, sensor activation, or when the system is armed. Manual control is supported, as well as autonomous operation from batteries for up to three years.
Advantages:
-
Compatible with DN15 (½ inch) ball valves, features manual control
-
Up to 5000 open and close cycles
-
Powered by an external 12 V source for the valve actuator
-
Backup power from two CR123A batteries provides up to 3 years of autonomous operation
-
Communication range up to 4800 meters in open terrain
-
Two-way encrypted communication with 256-bit encryption and sabotage protection
-
Automatic closing when armed and opening when disarmed
-
Built-in fault diagnostics and scale protection
-
Supports over-the-air (OTA) firmware updates
-
Quick installation and secure mounting
Specifications
| Parameter | Value |
|---|---|
| Valve type | Ball DN15 with manual control |
| Operating life | Up to 5000 open and close cycles |
| Valve power | External 12 V DC |
| Controller power | 2 × CR123A |
| Autonomous operation | Up to 3 years |
| Operating frequency | 868–868.6 MHz (EU/UA), 916.5–917 MHz (AU) |
| Communication range | Up to 4800 meters |
| Communication type | Two-way, 256-bit encryption |
| Sabotage protection | Yes |
| Automatic operation | Closes when armed, opens when disarmed |
| Diagnostics | Fault detection, scale protection |
| Firmware update | Supported (OTA) |
| Operating temperature | From –10 to +55 °C |
| Dimensions | 84.5 × 84.5 × 24.3 mm |
| Weight | 135 g |
| Warranty | 2 years (excluding batteries) |
