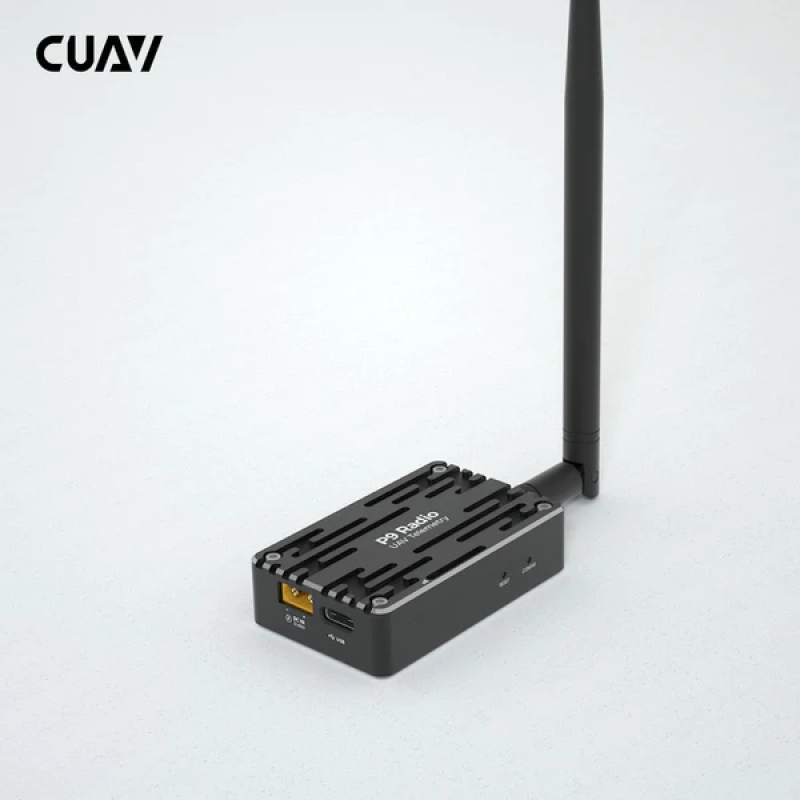

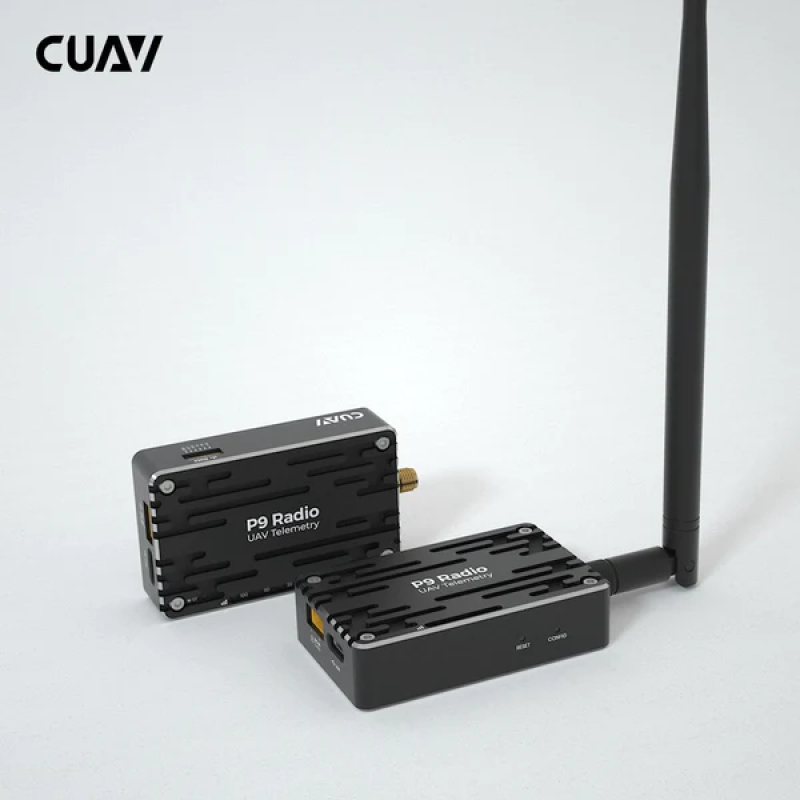

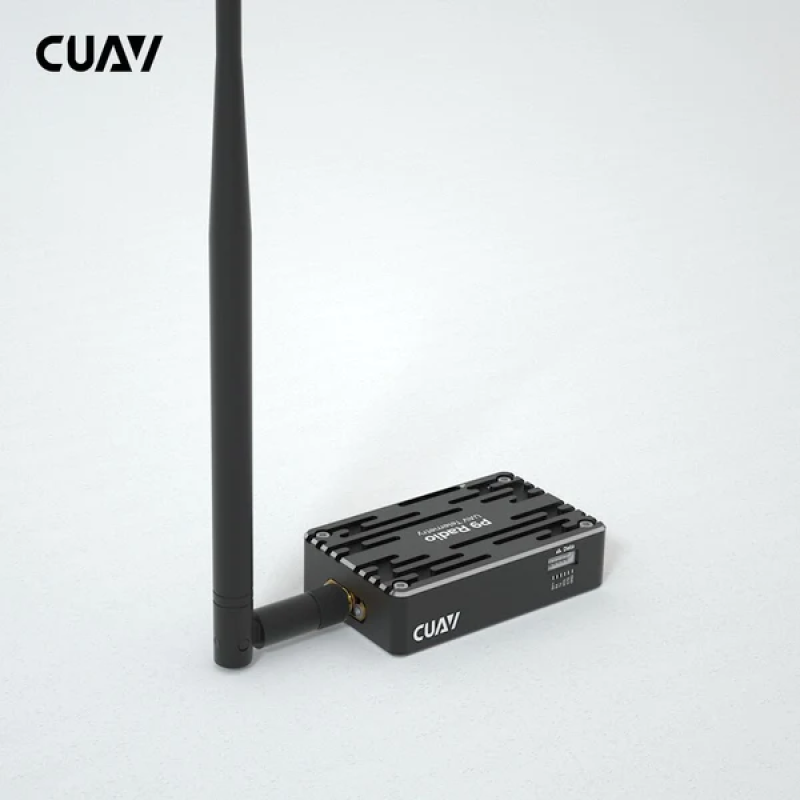

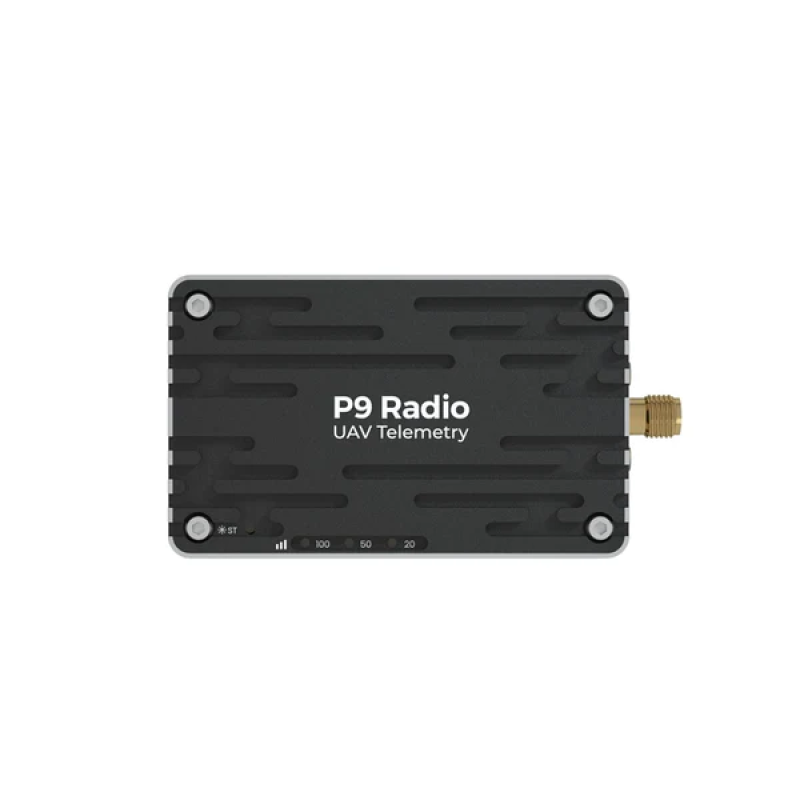

CUAV P9 1W Telemetry Kit — Highly Reliable Radio Communication for Drones

We offer the CUAV P9 1W telemetry kit from the manufacturer: China. This is a ready-made solution for bidirectional data exchange between airborne and ground modules over long distances, suitable for industrial, semi-professional, and research UAVs. This SEO description compiles all technical parameters, characteristics, and kit components for a quick assessment of the CUAV P9 1W's capabilities.

Key Advantages and Features

• Maximum communication range up to 60 km in line of sight with a 276 kbps link — ideal for ultra-long-range communication with an antenna amplifier and clear line of sight.
• Wide power supply voltage range of 12-60 V with an XT30 connector provides versatility for various aircraft power systems.
• Supports wide-spectrum broadcasting and radio relay modes, ensuring flexible application in complex networks.
• Adaptive bandwidth and advanced error correction algorithms ensure stable data transmission in noisy or interfered conditions.
• High-quality aluminum casing enhances durability and resistance to external influences.
• Interchangeability of airborne and ground modules simplifies maintenance, upgrades, and spare parts.

CUAV P9 1W Technical Specifications

• Operating frequency: 902 – 928 MHz
• Radio signal encoding: FHSS (Frequency Hopping Spread Spectrum)
• Data transmission mode: Transparent RS232-TTL (RX, TX, RTS, CTS)
• Error correction algorithms: Hamming, BCH, Golay, Reed-Solomon, Viterbi
• Encryption and protection: 32-bit CRC, ARQ (Automatic Repeat Request)
• Communication range: up to 60 km (with antenna amplification and line of sight)
• Nominal range: 40 km under normal conditions
• Receive sensitivity: -110 dBmW at 115.2 kbaud; -108 dBmW at 172.8 kbaud; -107 dBmW at 230.4 kbaud
• Transmitter power: 100 to 1000 mW (1000 mW default)
• Antenna gain: 5 dBi
• Serial port: RS232-TTL 3.3 V
• Data transfer rate: up to 230.4 kbps (57600 default)
• Operating modes: Auto-assist, radio relay, automatic recovery, packet routing
• Power supply voltage: 12-60 V, XT30 connector
• Power consumption: up to 1 mA (sleep mode); up to 3.5 mA (standby); 35-80 mA (receive); up to 2 A during transmission
• Antenna interface: SMA Jack
• Serial port interfaces: USB Type-C / JST-GHR-06V-S
• Operating temperature: -40°C to +85°C
• Humidity: 5% to 95% (non-condensing)
• Dimensions: 65×40×16.5 mm
• Radio module weight: 55 g
• Antenna weight: 31 g

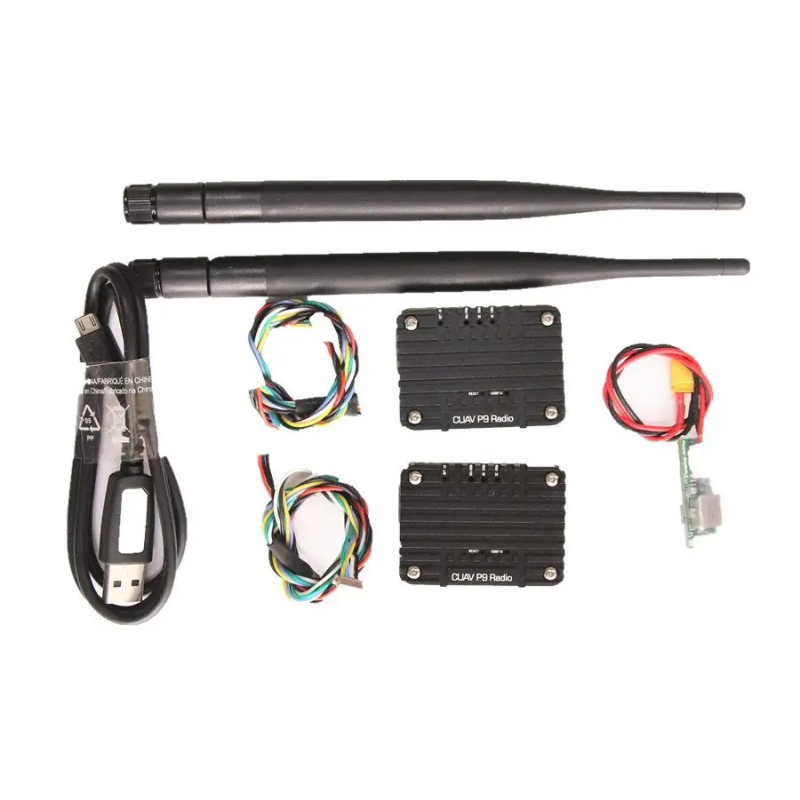

Package Contents

• Box A “Sky Unit”: radio modem, antenna, XT30 power cable, interface cable — 1 pc.
• Box B “Ground Unit”: radio modem, antenna, XT30-XT60 power cable, USB-TypeC cable — 1 pc.

The CUAV P9 1W is an optimal choice for users requiring reliable and long-range telemetry: from industrial aerial photography and agricultural use to search and rescue operations and educational projects. Thanks to its wide power supply range, compatibility with standard serial interfaces, and comprehensive error correction protocols, this kit ensures stable transmission of telemetry data in complex flight conditions. Support for radio relay mode and transparent RS232-TTL makes the CUAV P9 1W compatible with various flight controllers and control systems, and the kit's structure allows for quick module installation and replacement.

Manufacturer: China. Product type: Drones & Quadcopters > Drone Antennas.

Product category (as per website description): Drones & Quadcopters > Drone Components > Drone Spare Parts.
