A mini 8kW solar power plant for a dacha or home can provide:

• autonomous electricity to electrical equipment during daylight hours;
• backup power for household and computer equipment in case of prolonged emergency power outages.

Why is a "turnkey" solar power plant an effective replacement for fuel generators and other backup power sources?

• The system does not require additional technical maintenance and does not need fuel, as the sun is an inexhaustible source of electricity;
• The solar power plant equipment connects to the apartment/house/office power grid. Switching to backup power mode does not require much time or effort;
• Convenient system for monitoring operating parameters;
• Long-term operation of equipment without repair or maintenance;
• Ability to offset utility costs by consuming electricity from solar panels during daylight hours.

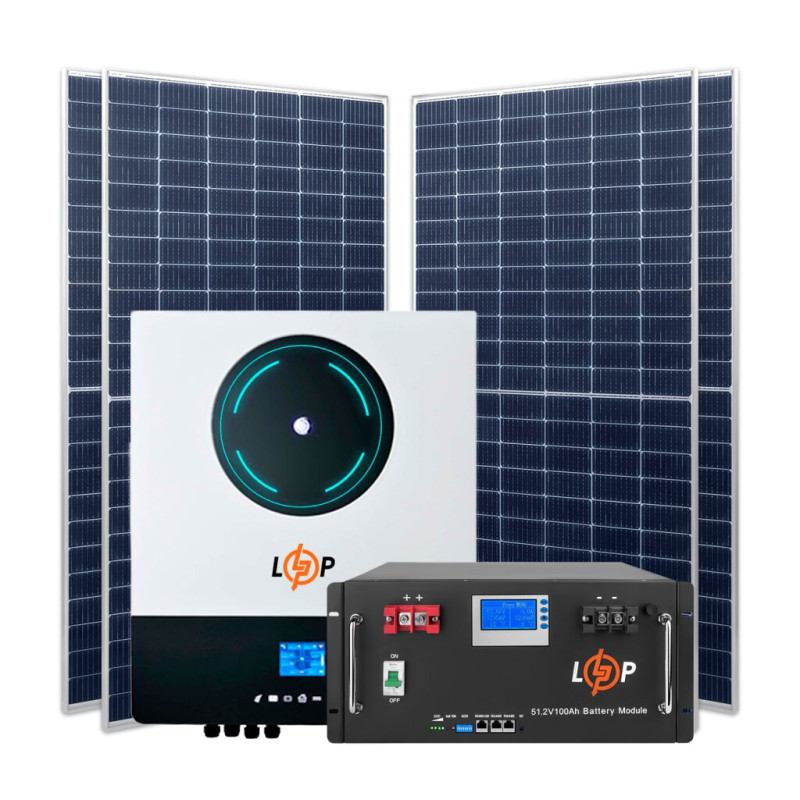

8kW Solar Power Plant - Kit Includes:

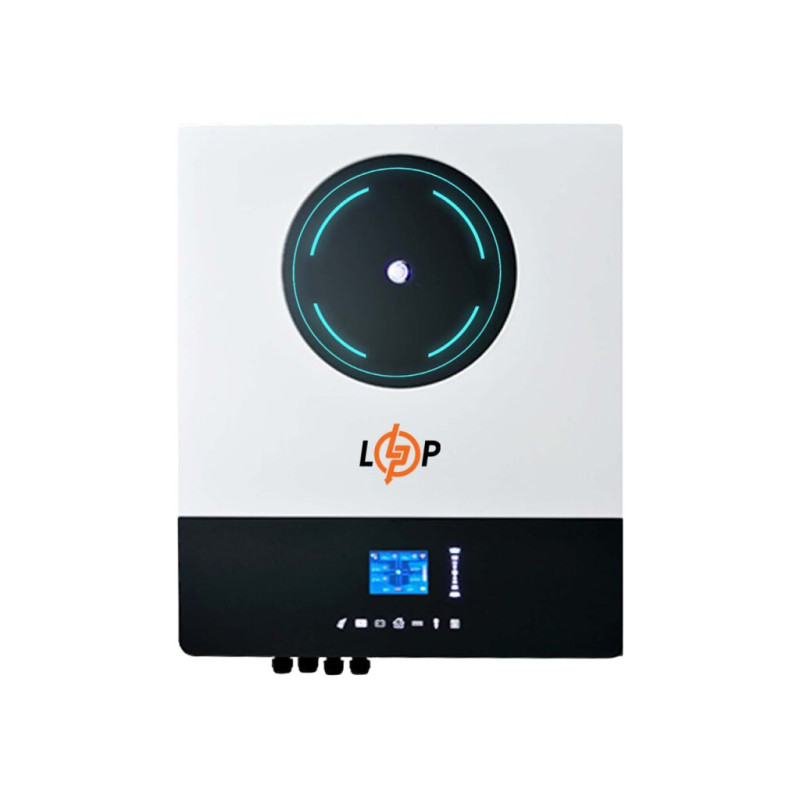

• UPS LogicPower LPW-MAXII- ULTRA 8000VA (8000W) 48V 150A MPPT 9-450V ON-OFF GRID - 1 pc.

• Solar panel LP Longi Solar Half-Cell 550W (35 profile. monocrystalline) - 14 pcs.

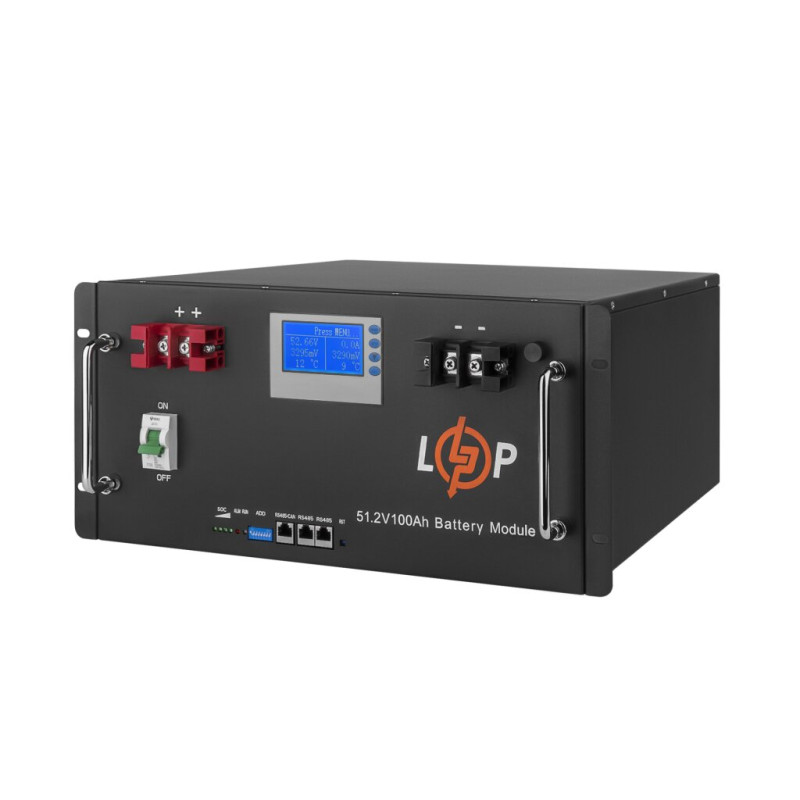

• Battery LP LiFePO4 51.2V - 100 Ah 5120Wh (Smart BMS 100A) with LCD RM - 1 pc.

• Mid-clamp for solar panel mounting 35 mm P - 24 pcs.

• End clamp for solar panel mounting 35 mm - 8 pcs.

• Combined screw-bolt 10x200 mm (set) stainless steel - 36 pcs.

• Socket head cap screw M8-35 - 32 pcs.

• Mounting nut M8 with lock for solar panel mounting - 32 pcs.

• C Solar profile connector 41x41x1.5 mm - 8 pcs.

• Socket head cap screw M8-16 - 16 pcs.

• Flanged serrated nut M8 - 16 pcs.

• C Solar guide profile 41x41x1.5 mm - 36 pcs.

• Cable for solar power plants H1Z2Z2-K 1*4 30 m black (male/female) - 2 pcs.

• Cable for solar power plants H1Z2Z2-K 1*4 30 m red (female/male) - 2 pcs.

• Copper wire for battery connection 25 sq. mm - 100 cm (with terminals) red - 1 pc.

• Copper wire for battery connection 25 sq. mm - 100 cm (with terminals) black - 1 pc.

• Load switch SSQ 140 "1-0-2", 1p 40A - 1 pc.

• Surge arrester ETITEC M T2 PV 1100/20 Y (for PV systems) - 1 pc.

• Circuit breaker ETIMAT 6 2p C 32A (6 kA) - 1 pc.

• 1690890 Disconnector ETI KVL 00 1P 160A (Terminals M8-M8) - 1 pc.

• 4110084 Fuse ETI NH-00 Battery 160A 80V DC - 2 pcs.

• External distribution board ECT 8PT (8 modules, transparent door) - 2 pcs.

Solar power plant: kit for Ukraine, how is the price formed?

The cost of a solar power plant kit for a home depends on the type of battery.

"Premium" category 8kW "turnkey" solar power plants include lithium iron phosphate (LiFePO4) batteries with a capacity of 100 Ah.

Alternative energy sources for home: advantages of using LiFePO4 batteries

• Lifepo4 has 7000 charge-discharge cycles. You won't have to think about replacing the battery for at least 10 years.
• It takes no more than 2 hours to fully charge a lithium iron phosphate battery. In addition, the battery has no "memory effect", meaning the battery can be charged at any time without waiting for a full discharge.
• The capacity loss of lithium iron phosphate batteries is about 20% when stored for more than 10 years. In addition, this type of battery can remain in a discharged state for a long time without serious consequences for further operation.

Can I install a home solar power plant myself?

The solar PV modules included in the kit are fully ready for self-assembly. You do not need to install additional protective devices for the solar panels.

We recommend placing solar panels in areas with plenty of sunlight. Avoid shadows from trees or buildings falling on the working surface of the photocells.

Solar panels can be mounted on the roof, on the ground, or on special welded structures. When installing PV modules, orient them to the south.

The mounting of the solar panel support structures is carried out using appropriate fasteners on aluminum frames. Mounting holes are provided on the back of the frames.

Observe polarity when connecting all DC electrical connections. Carefully check the polarity of the solar panels and batteries with a tester before installation.

For safe operation of the solar power plant, install grounding for the mounting structures, housing, and inverter.
