A mini solar power station for a dacha or home with a capacity of 1.4kW can provide:

• autonomous electricity to electrical equipment during daylight hours;
• backup power for household and computer equipment in case of prolonged emergency power outages.

Why is a "turnkey" solar power station an effective replacement for fuel generators and other backup power sources?

• The system does not require additional technical maintenance and does not need fuel, as the sun is an inexhaustible source of electricity;
• The solar power plant equipment connects to the apartment/house/office power grid. Switching to backup power mode does not require much time and effort;
• Convenient system for monitoring system operating parameters;
• Long-term operation of equipment without repair and maintenance;
• Ability to offset utility costs by consuming electricity from solar panels during daylight hours.

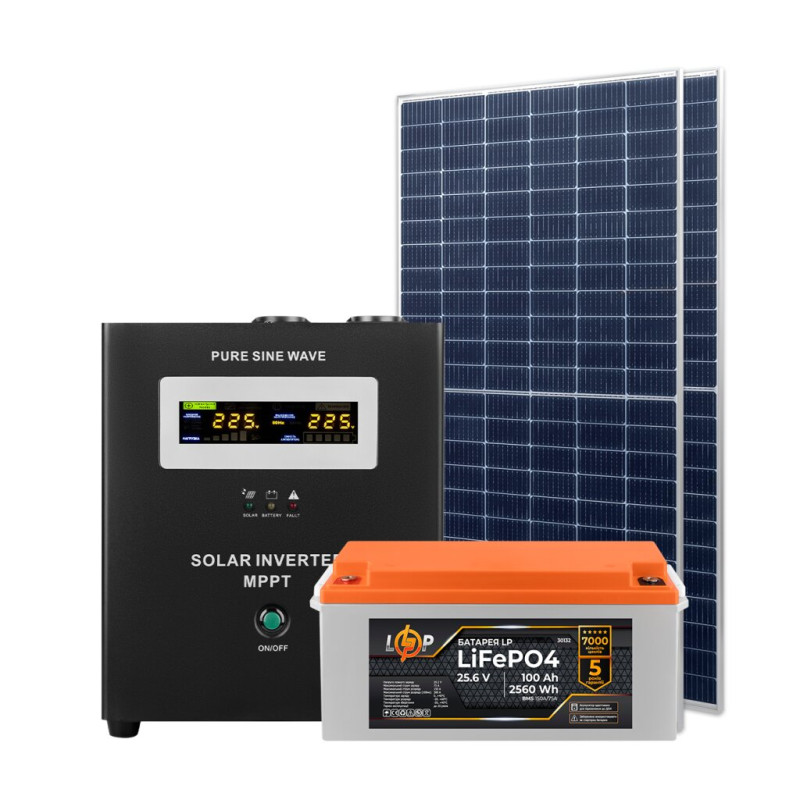

1.4kW Solar Power Station - includes:

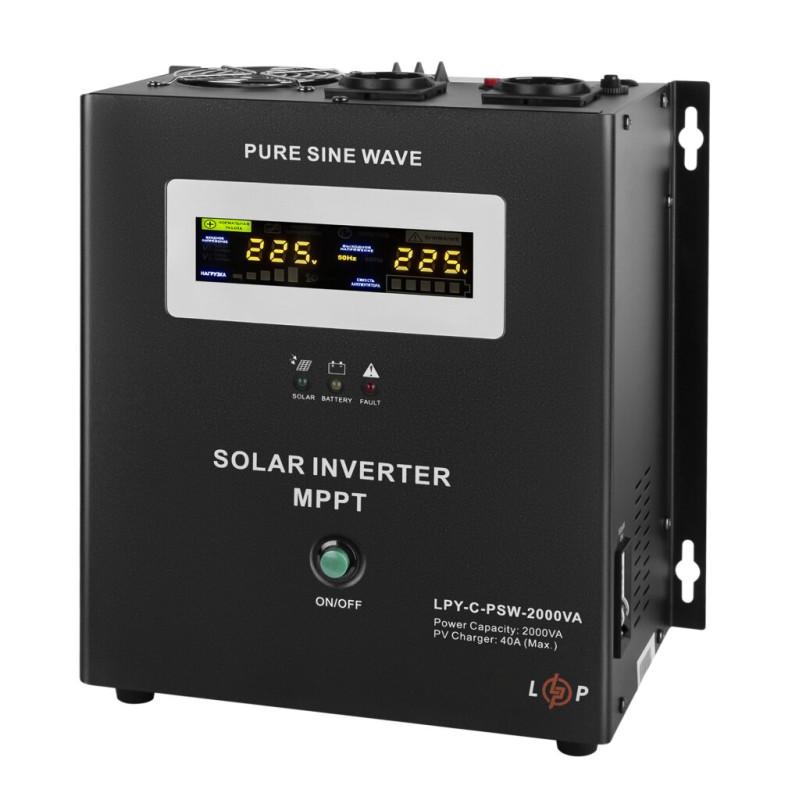

• Solar inverter (UPS) LPY-C-PSW-2000VA (1400W) MPPT24V - 1 pc.

• Solar panel LP Longi Solar Half-Cell 550W (35 profile. monocrystalline) - 2 pcs.

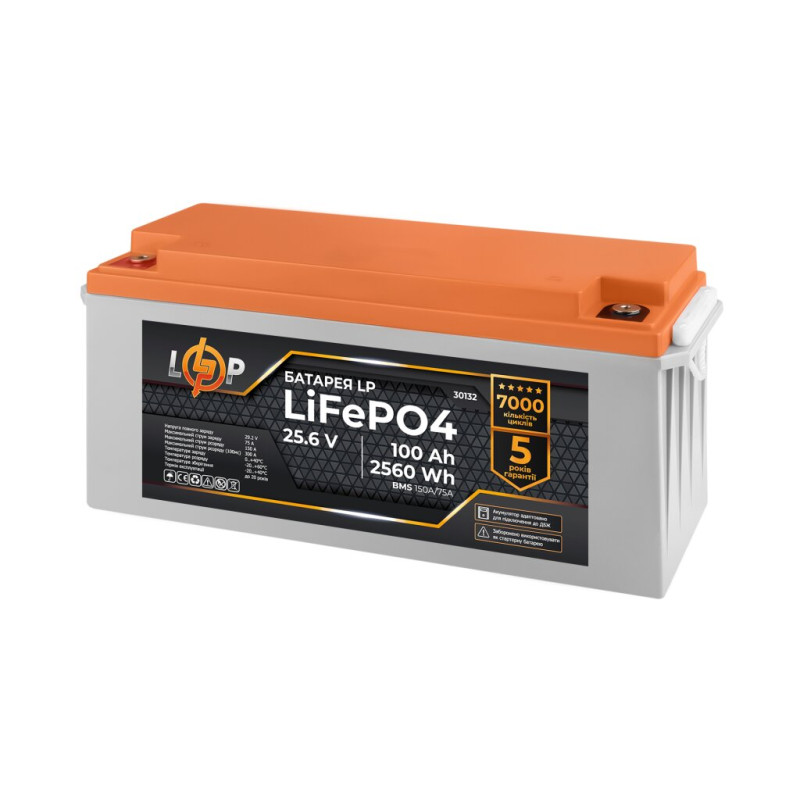

• Battery LP LiFePO4 25.6V - 100 Ah (2560Wh) (BMS 150A/75A) plastic for UPS - 1 pc.

• C Solar guide rail 41x41x1.5 mm - 6 pcs.

• C Solar profile connector 41x41x1.5 mm - 2 pcs.

• Cylinder head screw with internal hexagon M8-16 - 4 pcs.

• Flange nut serrated M8 - 4 pcs.

• Inter-module clamp for mounting solar panels 35 mm P - 2 pcs.

• End clamp for mounting solar panels 35 mm - 4 pcs.

• Cylinder head screw with internal hexagon M8-35 - 6 pcs.

• Mounting nut M8 with retainer for mounting solar panels - 6 pcs.

• Cable for solar power stations H1Z2Z2-K 1*4 30 m black (male) - 1 pc.

• Cable for solar power stations H1Z2Z2-K 1*4 30 m red (female) - 1 pc.

• Cable for solar power stations H1Z2Z2-K 1*4 1.5 m black (male/female) - 4 pcs.

• Double connector T-branch MC4 (pair) - 2 pcs.

• Wooden box with lid for solar power plant - 1 pc.

Solar power station: kit for Ukraine, how is the price formed?

The cost of a solar power station kit for a home depends on the type of battery.

"Premium" category 1.4kW "turnkey" solar power stations include lithium iron phosphate batteries (LiFePO4) with a capacity of 100 Ah.

Alternative energy sources for home: advantages of using LiFePO4 batteries

• The charge-discharge cycle life of LiFePO4 is 7000. You won't have to think about replacing the battery for at least 10 years.
• A full charge of a lithium iron phosphate battery takes no more than 2 hours. In addition, the battery has no "memory effect", meaning the battery can be charged at any time without waiting for a full discharge.
• The capacity loss of lithium iron phosphate batteries is about 20% when stored for more than 10 years. In addition, this type of battery can remain in a discharged state for a long time without serious consequences for further operation.

Can I install a home solar power plant myself?

The solar photo modules included in the kit are fully ready for self-installation. You do not need to install additional protection for solar panels.

We recommend placing solar panels in areas with plenty of sunlight. Avoid shadows from trees or buildings falling on the working area of the photocells.

Solar panels can be mounted on the roof, on the ground, and on special welded structures. When installing photo modules, orient them to the south.

The mounting of the supporting structures of solar panels is carried out using appropriate fasteners on aluminum frames. Mounting holes are provided on the back of the frames.

Observe polarity when connecting all DC electrical connections. Carefully check the polarity of solar panels and batteries with a tester before installation.

For safe operation of the solar power station, install grounding for the mounting structures, casing, and inverter.
