UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery
The LogicPower backup power kit, consisting of a pure sine wave UPS 24V LPY-W-PSW-1500VA+(1050W)10A/15A + LP LiFePO4 25.6V - 160 Ah (4096Wh) (BMS 200A/100A) plastic LCD battery for UPS, is designed and put into operation to provide uninterrupted power supply for electric gas boilers, video surveillance systems, computer equipment, and other devices operating in 24/7/365 mode. The kit can be used as an uninterruptible power supply for a bomb shelter.
The pure sine wave uninterruptible power supply with a power of 1500/1050 VA/W performs two main functions: voltage stabilization (input - 140-275V, output - 220±10%V) and conversion of DC from the battery to an AC voltage source of 220V. The UPS system is controlled by a microprocessor. The battery provides power in backup mode.
The uninterruptible power supply system for an apartment - the UPS+battery kit - is equipped with a LiFePO4 battery.
Connection Diagram for UPS + Battery Backup Power Kit
220V power grid – uninterruptible power supply with external battery – power consumer.
- UPS connection to the grid – standard Euro plug
- Battery connection type – terminals
- Power consumer connection type – standard Euro socket
The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.
ATTENTION! If your connection scheme includes equipment with high inrush currents, the power load reserve factor will increase.
LogicPower LiFePO4 batteries have several operational advantages: low self-discharge, fast charging, high cycle life, and compact size.

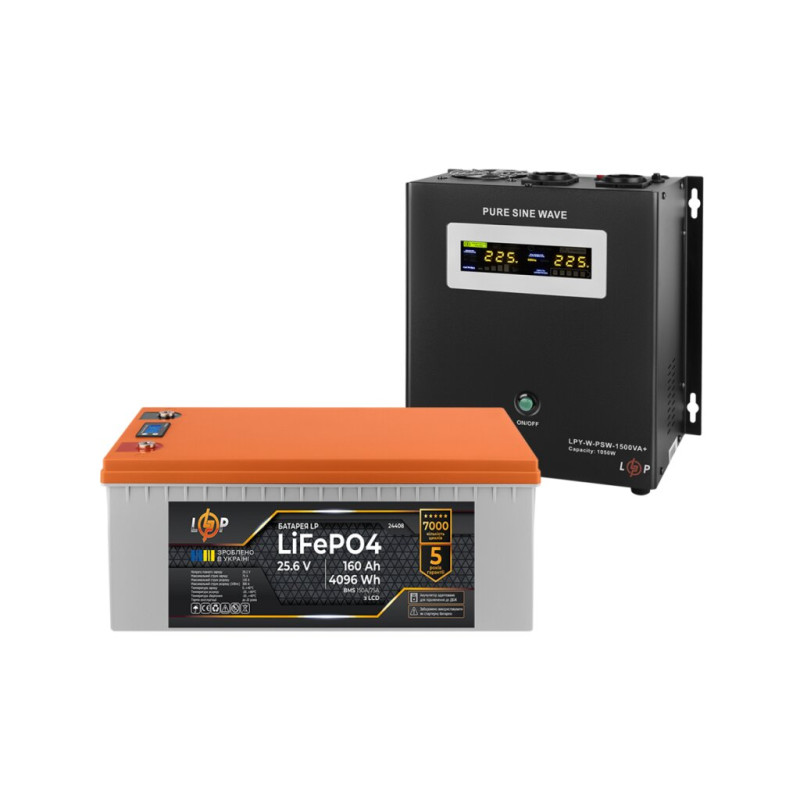

The kit includes:
-
Pure sine wave UPS 24V LPY-W-PSW-1500VA+(1050W)10A/15A - 1 pc.
-
LP LiFePO4 25.6V - 160 Ah (4096Wh) (BMS 150A/75A) plastic LCD battery for UPS - 1 pc.
