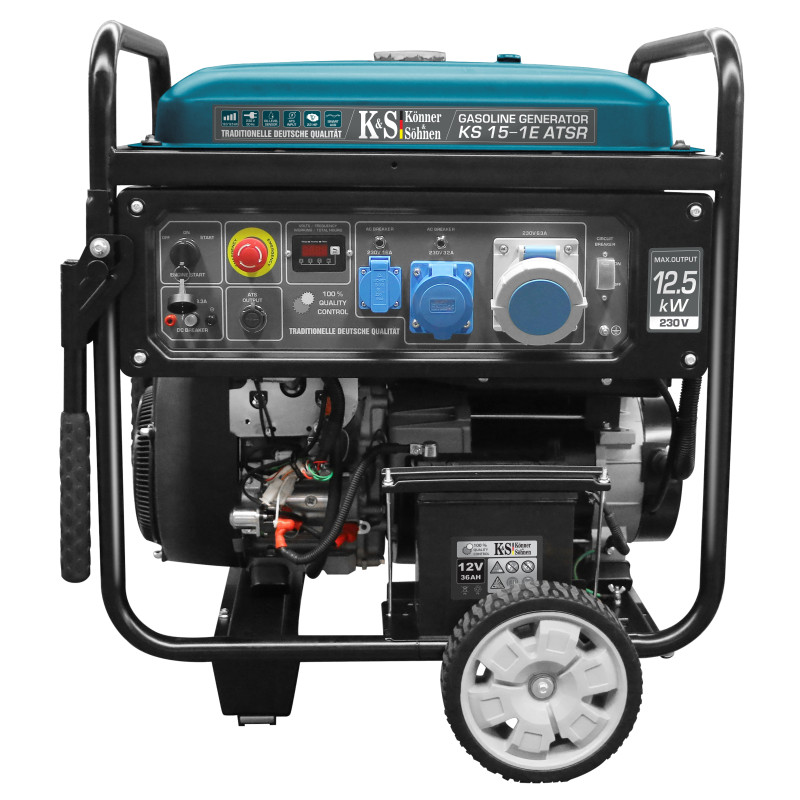

Powerful two-cylinder generator KS 15-1E ATSR with ATS connection capability
The convenient, ergonomic control panel is equipped with an emergency stop button and a multi-functional LED display, allowing monitoring of generator operation: voltage, frequency, and hours worked
Each model is equipped with sockets that allow for maximum power output from the device; the sockets are fused and come with appropriate plugs
A spacious 55-liter fuel tank ensures long and continuous operation. Powerful 1-cylinder four-stroke air-cooled engine (18.5 hp)
The engines comply with all global and European quality standards, including the modern EURO-V environmental standard
Each engine has an individual number, allowing control over production quality and service. The convenient ergonomic control panel allows easy operation of the entire device and requires no additional skills; it is equipped with sockets designed for maximum generator power output, an LED display, and an emergency stop button. The generator has the capability to connect an ATS (Automatic Transfer Switch) unit
The ATS output has an 8-pin connector. TM "Konner & Sohnen" generators are equipped with a high-quality synchronous alternator with 100% copper winding
Only copper winding can withstand maximum loads without any damage, guaranteeing long-term reliable operation of the generator set. "Konner & Sohnen" generators are equipped with an enlarged steel fuel tank (55 L), which extends the generator's operating time without refueling
A fuel level indicator is located on the tank for ease of use.

• Voltage, V 230.
• Maximum power, kW 12.5.
• Rated power, kW 12.0.
• Frequency, Hz 50.
• Max current, A 53.
• Sockets 1x63A (230V), 1x32A (230V), 1x16A (230V).
• Fuel tank capacity, L 55.
• LED display
• Hour meter, frequency, voltage, low oil indicator.
• Noise level, Lpa (7m)/Lwa, dB 72/97.
• 12V output, A 12/8.3.
• Engine model KS 780.
• Engine type 2-cylinder gasoline, 4-stroke air-cooled.
• Engine power, hp/kW 22.0/16.18.
• Oil sump capacity, L 1.5.
• Engine displacement, cm3 750.
• Voltage regulator Intelligent AVR system.
• Start type Electric.
• Battery capacity, A·h 36.
• Net dimensions, mm 797х705х805.
• Gross dimensions, mm 807?715?905.
• Net weight, kg 155.
• Gross weight, kg 170.
• Protection class IP23M.
• Power factor, cos 1
