The kit is designed for effective detection and recognition of human faces indoors. The equipment provides the ability to detect and identify personal characteristics. In addition, the system offers functionality for creating and maintaining a network database that stores data on recognized individuals.

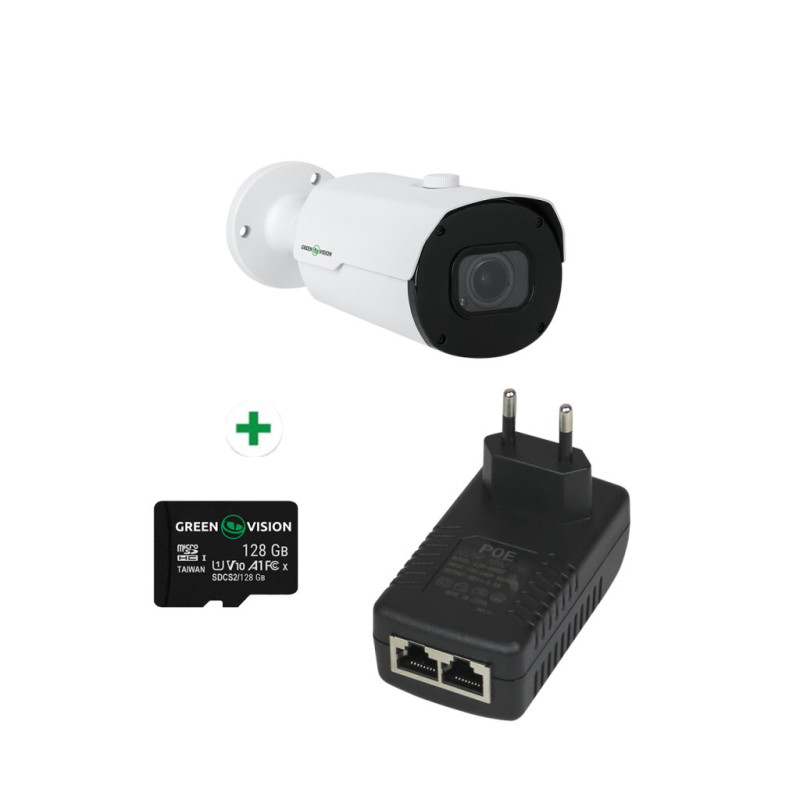

The video surveillance kit with face and personal feature recognition includes:

• GreenVision GV-173-IP-IF-COS50-30 VMA (Ultra AI) 5MP POE SD-card Outdoor IP Camera

• 48V-0.5A POE Injector.

• GreenVision micro SDHC memory card with 128 GB capacity and Class10 U3 write speed

Kit Features:

• Face Recognition. The system has high accuracy in detecting and recognizing faces, making it suitable for various applications such as security, access control, or attendance tracking.

• Personal Indicators. In addition to identifying individuals, the camera can analyze and store personal characteristics: gender, age, and other parameters.

• Face Database. The system supports the creation and maintenance of a network database, including processes for adding, updating, and deleting data on recognized individuals.

• Ability to tag and track individuals belonging to different categories. For example, "black" and "white" lists can be created in the database for visitor control.

• Function for counting people passing through an entry point. The system provides accurate accounting of both the total number of people entering and exiting, and counting by each characteristic. This allows for more detailed analysis and management of visitor flow, as well as using data for more effective security management.

• Creation of a heat map based on the recorder's archive of records for a specified period. The map visualizes the density of people in certain areas, allowing to highlight places of greatest visitor concentration, helping to visually identify areas of increased interest or customer flow.

• Built-in intelligent functions help detect motion, control line crossing, detect objects left or appearing in a specific area, etc.

How to properly install a video surveillance camera

For effective face detection and identification, it is recommended to place the camera in the central part of the entrance/exit, following the specified placement scheme.

The higher the camera's resolution, the further it can be installed from the face recognition point (d).

For effective face detection, the face image must have sufficient contrast and be well-lit.

The GV-tool program allows you to choose the most effective camera placement for face recognition.
To calculate the camera's location, you need to enter the following key characteristics: mode, sensor type (matrix), focus, and camera resolution.

Based on the entered parameters, the program generates a report with data for the most correct installation of the video surveillance camera.

The GV-tool program can be downloaded in the "Downloads" section.

Additional features of the video surveillance kit with face recognition

The camera is equipped with one alarm input and output, to which additional devices can be connected. This functionality allows the camera to react to various events and enables control of additional devices.
This expands the system's functionality and allows customizing the camera's reaction to various events within the video surveillance kit's field of view.

Instant notification of specific events:

• perimeter intrusion detection;
• line crossing detection;
• stationary object detection function;
• detection function for people moving in a predefined area;
• cross-counting function for the time objects or people move across virtual lines;
• the "heat map" function highlights areas with the highest concentration of people. This will increase monitoring efficiency and ensure a quick response to potential threats or problems.

If a light-speech annunciator — GV-AVS-01 Microphone — is connected to the alarm and audio outputs, the installed video surveillance system will signal an alarm at the facility using light signals.
This kit is a powerful tool for implementing a versatile video surveillance system with extended functionality.
