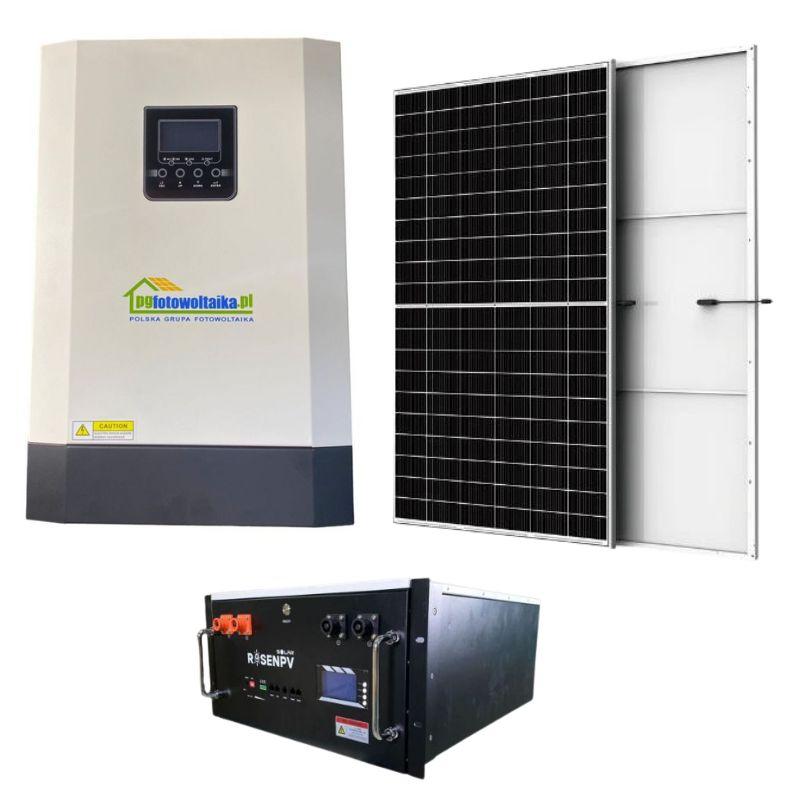

"Power Autonomy" Kit - OFF-GRID PGF OG-5500 MPPT 5.5KW Solar Photovoltaic Inverter + WiFi + Rosen Solar Mono Cells Solar Panel (8 pcs) + LiFePO4 51.2V 200 Ah Battery

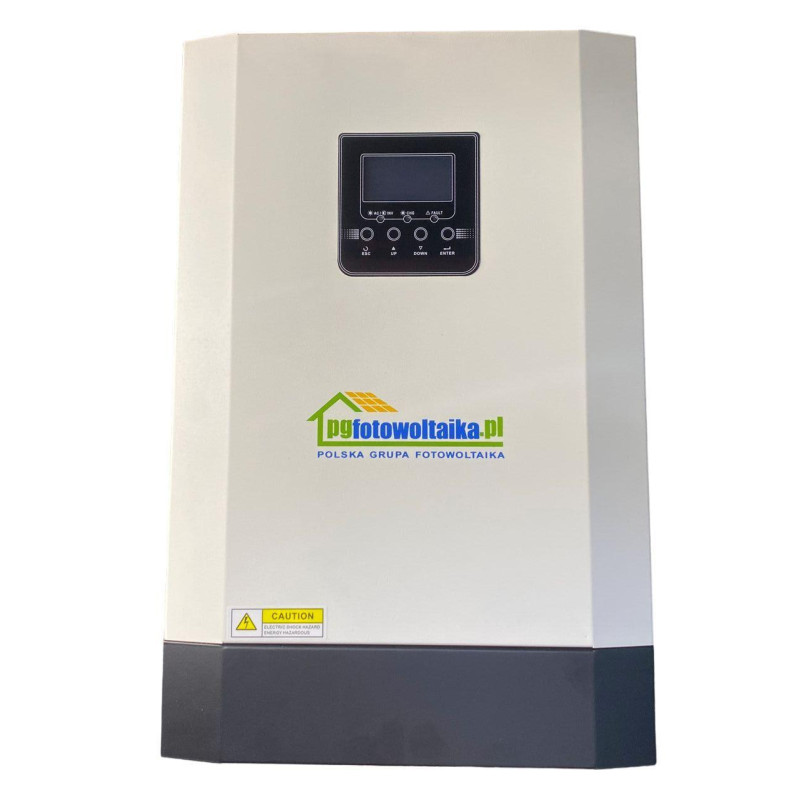

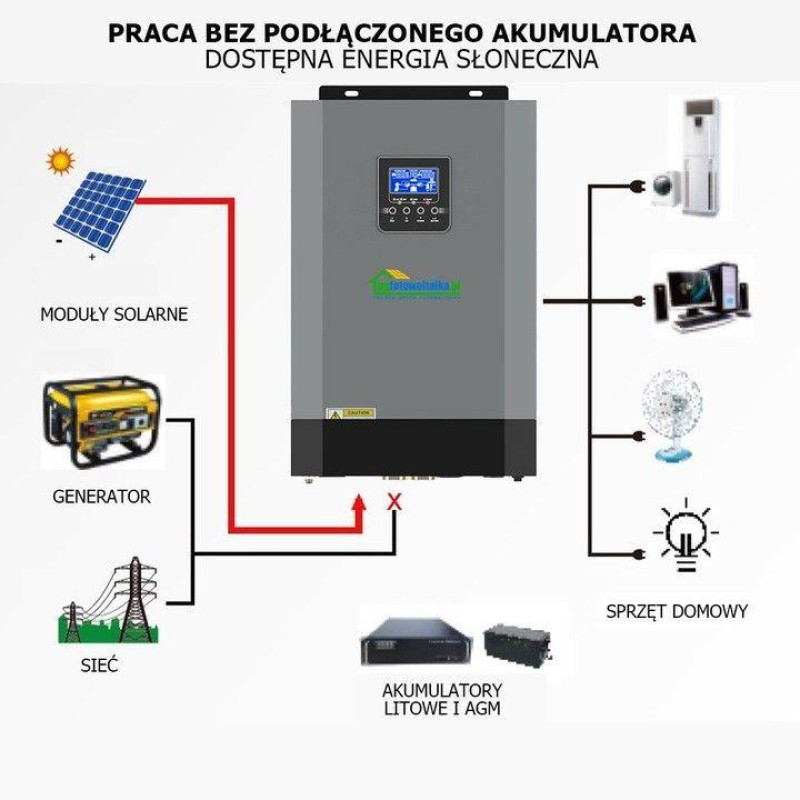

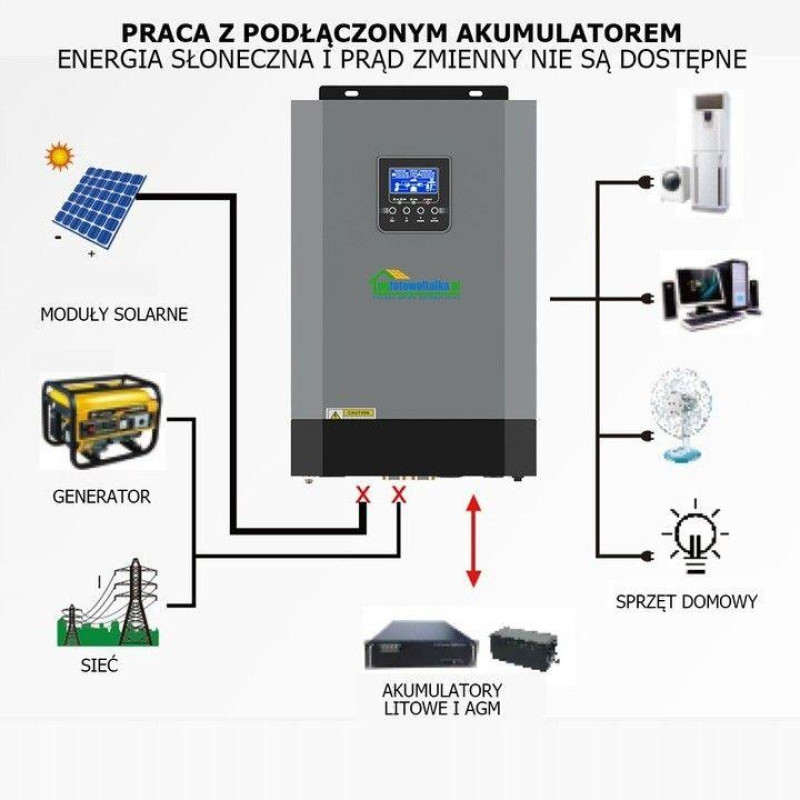

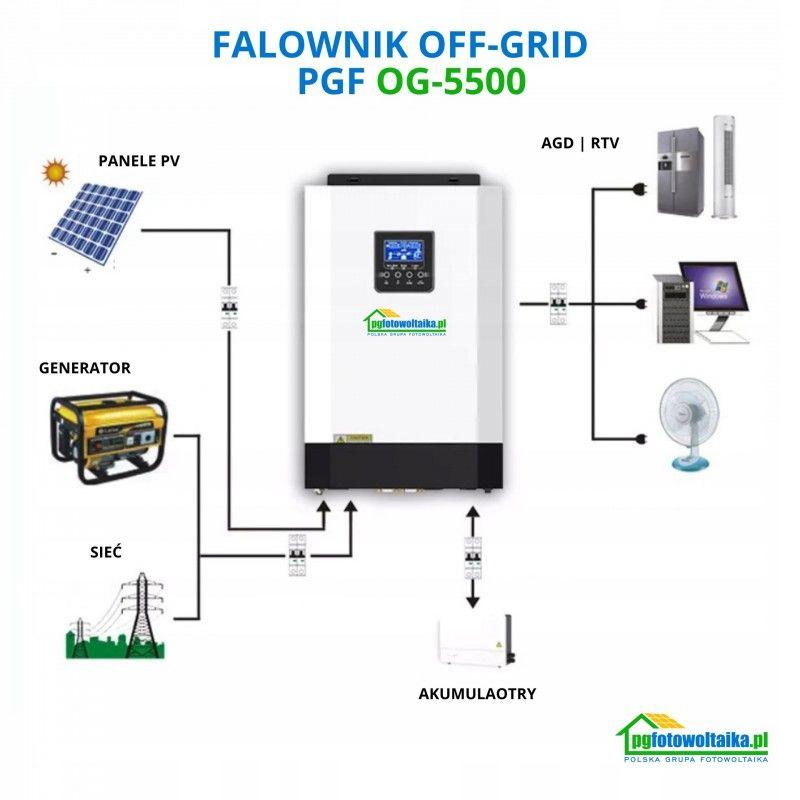

Brand: AGM. The "Power Autonomy" kit combines an OFF-GRID PGF OG-5500 MPPT inverter with 5.5 kW power and built-in WiFi, a set of 8 Rosen Solar Mono Cells monocrystalline solar panels, and a high-voltage LiFePO4 51.2V 200 Ah lithium iron phosphate battery. This is a versatile solution for providing autonomous or backup power to a home, dacha, or facility with increased energy consumption. The inverter is designed as a multifunctional device that combines the functions of an inverter, a solar charger, and a battery charger; the name includes MPPT, and the description also mentions the possibility of the solar charger functioning with PWM (pulse-width modulation), which provides flexibility for configuration with various solar array setups.

Technical Data

Grid Mode

• Input voltage waveform – sine wave (from grid or generator)
• Nominal input voltage – 230V AC
• Low cutoff voltage – 170V AC (UPS), 90V AC (typical electrical devices)
• Maximum AC input voltage – 300V AC
• Nominal input frequency – 50 Hz / 60 Hz (auto-sensing)
• Output short-circuit protection - grid mode: overcurrent protection; battery mode: electronic protection
• Transfer time – 10 ms (typical UPS); 20 ms (typical – electrical devices)
• Output power derating – when input voltage drops below 170V AC, output power is limited

Inverter Mode

• Nominal output power – 5.5 kVA / 5.5 kW - 5500 W
• Input voltage waveform – pure sine wave
• Nominal output voltage – 230V ±5%
• Output frequency – 50 Hz
• Peak efficiency – 94%
• Instantaneous peak power – 2x nominal power for 5 s – 11000 W
• Nominal input voltage – 48V DC
• DC voltage for cold start – 48V DC
• Self-consumption – data not specified

The OFF-GRID PGF OG-5500 MPPT inverter is optimal for systems requiring stable 230V sine wave power with the ability to handle short-term peak loads up to 11 kW. The presence of an MPPT converter in the name indicates its ability to efficiently utilize energy from solar panels, and the mention of PWM in the basic description indicates the availability of charging modes that can be useful for various battery and solar array configurations.

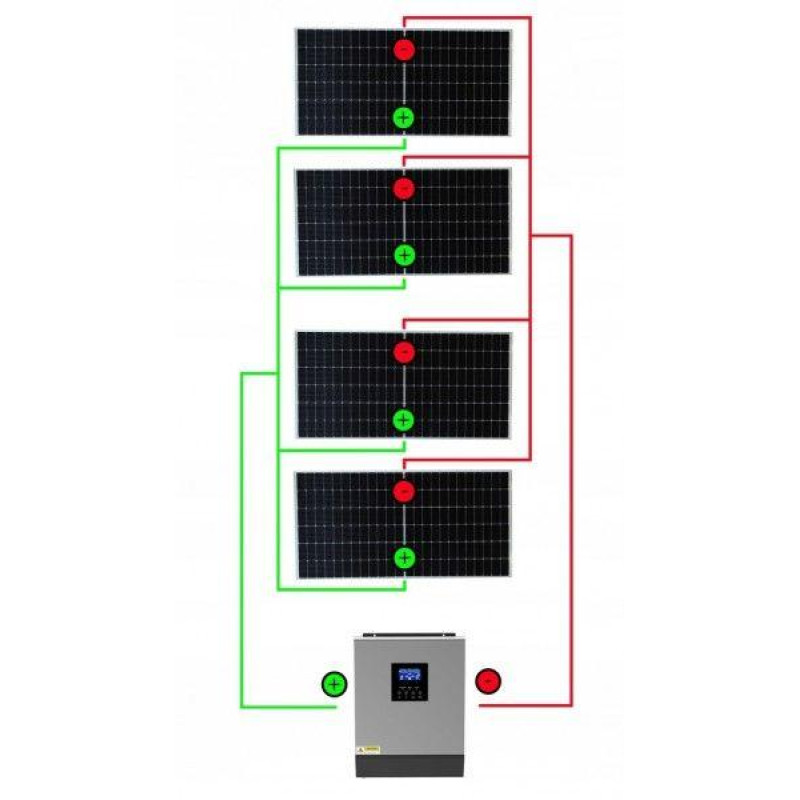

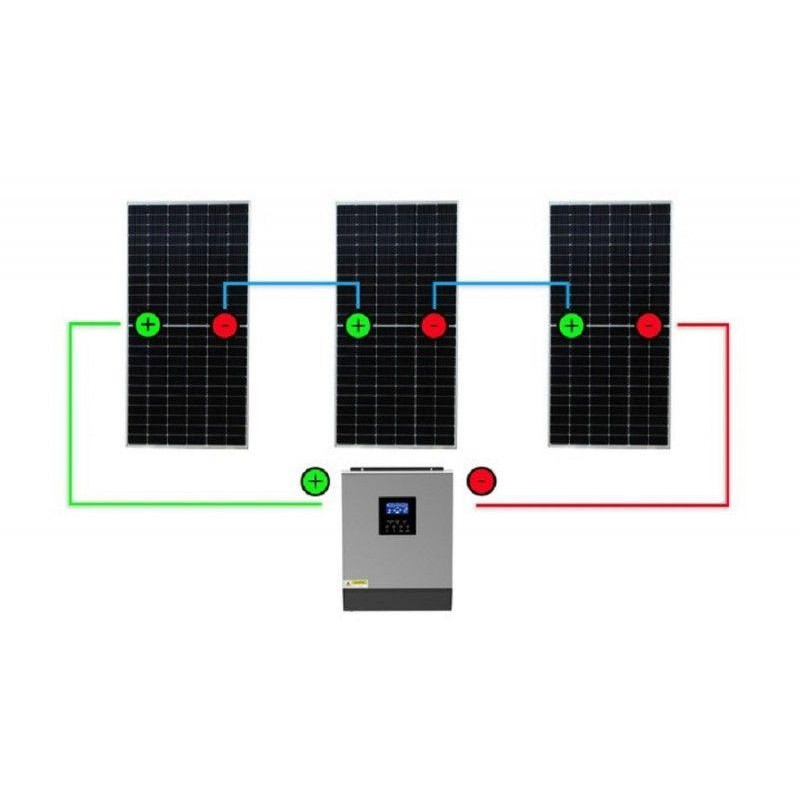

The kit includes 8 Rosen Solar Mono Cells solar panels, which provide a stable energy supply at the inverter input, and a LiFePO4 51.2V 200 Ah battery, which ensures long-term energy storage with a high cycle life. This set is suitable for autonomous power supply for lighting, household appliances, security system elements, and other critical loads.

Product ID: 45211. Category: Energy Independence > Portable Charging Stations. Manufacturer: AGM. The kit features a comprehensive approach to autonomous power supply: an inverter with WiFi for remote monitoring, efficient Rosen Solar solar panels, and a reliable LiFePO4 51.2V 200Ah battery.

If more detailed technical setup, solar panel connection parameters, or recommendations for battery system configuration are needed — this kit has sufficient functionality for individual optimization to suit your tasks.
