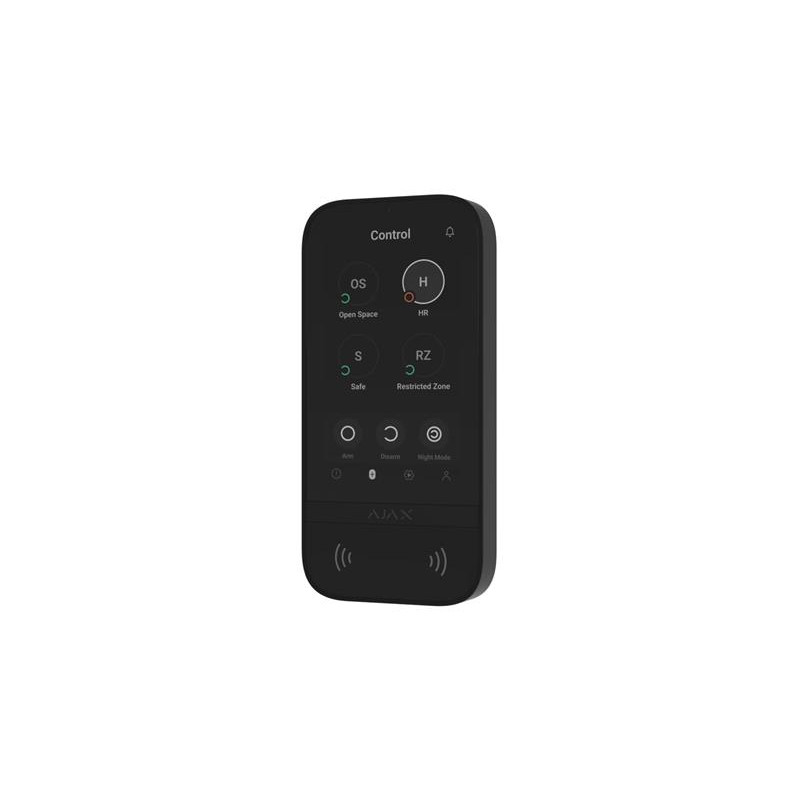

The Ajax KeyPad TouchScreen is a wireless touchscreen keypad for managing the Ajax security system. It supports Jeweller and Wings radio protocols. The capacitive touchscreen has a 5-inch diagonal with a resolution of 480 × 854 pixels. The keypad allows contactless access using cards and key fobs, and also supports Bluetooth low energy (BLE). It is powered by 6 AA batteries and can also operate from an external power source with a voltage of 10.5–14 V and a current of up to 0.5 A. The keypad dimensions are 171.5 × 82.1 × 26 mm, and it weighs 327 g. It is available in white.

The design of the Ajax KeyPad TouchScreen was developed in a stylish casing with an emphasis on compactness, attractive appearance, and a strict form factor that will easily fit into any interior.

The Ajax KeyPad TouchScreen activates when a hand is brought near it and features automatically adjustable backlighting. The interface displays controls in the style of the Ajax application, facilitating user navigation. The touchscreen allows for quick display of the current security status of any device group.

The KeyPad TouchScreen provides audible and visual signals for alarms, door openings, and entry/exit delays. The volume of the audible indication can be adjusted via the application. The keypad also informs users about potential malfunctions when arming, helping to identify the causes of errors and issues.

In addition, the Ajax KeyPad TouchScreen features automatic wake-up, brightness adjustment, convenient management of device groups, and the ability to display malfunction notifications when arming.

The keypad also has a separate screen for controlling automation devices, where up to 6 buttons can be placed to control individual devices or groups of devices.

For security and authorization, the keypad supports the use of Pass cards and Tag key fobs, which are recorded in the Ajax application's event log. The administrator can manage access to the contactless authorization device. Furthermore, three types of security codes can be used: keypad codes, personal codes, and unregistered user codes.

The Ajax KeyPad TouchScreen supports Jeweller and Wings radio protocols to ensure stable wireless communication. The keypad features authentication for spoofing protection, long-range communication with the hub up to 1700 meters, communication encryption for data leak protection, and device polling at a specified interval.

It is important to note that the Ajax KeyPad TouchScreen has a built-in panic button that can be configured to notify about various events. If a user is forced to disarm the security system, a duress code can be used, which notifies the security company of an alarm.

The keypad supports various types of authentication and control via smartphone using the Ajax application. Only users approved by the system administrator have access.

The Ajax KeyPad TouchScreen is equipped with a 5-inch touchscreen with high-quality imaging and a resolution of 480 × 854 pixels. The backlight brightness is automatically adjusted, allowing comfortable use day and night. The screen is also protected against scratches and abrasions.

The Ajax KeyPad TouchScreen can operate for up to 1.5 years on pre-installed batteries. There is also an option to connect an external power source to extend autonomy. The package includes the keypad, 6 AA batteries, a SmartBracket mounting panel, a mounting kit, and a quick guide.

The Ajax KeyPad TouchScreen is compatible with the Ajax wireless system and works with various hubs, such as Hub 2 (2G), Hub 2 (4G), Hub 2 Plus, Hub Hybrid (2G), Hub Hybrid (4G), and the ReX 2 range extender.

Installation and setup of the keypad are very simple: just add it to the system by scanning the QR code. The SmartBracket mounting panel helps to securely fasten the device, and configuration is possible even remotely.

Specifications:
