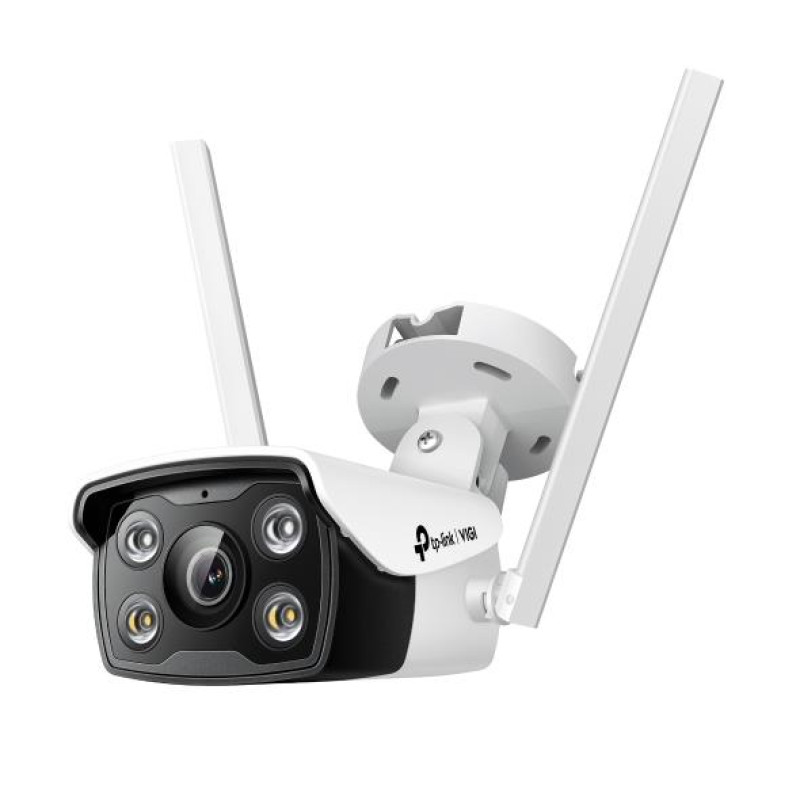

Product Code: FA99-VIGI-C340-W4-99
In Stock
4 299 грн.
Buy this product in 1 click:
Main specifications
Warranty:
36 months
Weight (kg):
0.60
All specifications
We will deliver this product:
Payment
Description
- 4 MP resolution: allows you to see even the smallest details.
- 24/7 color image: enables video surveillance even in darkness thanks to a highly sensitive sensor and built-in spotlights.
- Wi-Fi: simplifies network connection.
- Moisture protection: IP66 ingress protection rating allows the camera to be used in the harshest conditions.
- Smart detection (people, motion, line crossing, intrusion, and tampering): sends notifications when someone crosses a line, enters a protected area, or interferes with the camera's operation.
- Smart IR illumination: allows you to see objects that are far from or too close to the camera at night.
- Wide Dynamic Range (WDR): balances contrast between overly bright and overly dark areas.
- Digital Noise Reduction (3D DNR): reduces image graininess and enhances video clarity.
- H.265+: crystal-clear compressed image without loss of quality, saving hard drive space and reducing network load.
- VIGI App: security in the palm of your hand.
| CAMERA | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Lens | 4 mm (fixed) |
| Aperture | 4 mm: f/1.6 |
| Lens Mount | M12 |
| Viewing Angle | Horizontal - 79°, Vertical - 43°, Diagonal - 93° |
| Night Mode | IR filter |
| IR Working Distance | 30 m |
| Illumination Distance | 30 m |
| Minimum Illumination | 0 lux with IR or white light illumination |
| Weatherproof Rating | IP66 |
| Digital Noise Reduction | 3D Digital Noise Reduction (3D DNR) |
| WDR | Digital Wide Dynamic Range (DWDR) |
| NETWORK | |
|---|---|
| Security | Password protection, HTTPS encryption, IP address filtering, digest authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wireless Speed | 802.11b - 11 Mbps 802.11g - 54 Mbps 802.11n - 150 Mbps |
| Frequency | 2.4 GHz |
| Wireless Security | WPA/WPA2-PSK |
| API | ONVIF |
| Simultaneous Live View | 3 main streams and 3 sub-streams |
| GENERAL | |
|---|---|
| Package Contents | Camera Quick Start Guide Waterproof Cable Gland Power Adapter Mounting Accessories (screws, anchors, hex key) |
| Operating Temperature | –30...+60 °C |
| Certifications | CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
| Dimensions (W x D x H) | 80 × 70.6 × 173.4 mm |
| Material | Plastic |
| Weight | 195 g |
| General Features | Dual streams, mirror, privacy masks, password reset via email, HTTP listening |
| Power Supply | 12 V DC ±5%, 5.5 mm coaxial power plug |
| Power Consumption | 12 V DC: 7 W max |
| VIDEO / IMAGE | |
|---|---|
| Video Compression | Main Stream: H.265+/H.265/H.264+//H.264 Sub-Stream: H.265/H.264 |
| Frame Rate and Image Quality | Main Stream Frame Rate (per second): 1, 5, 10, 15, 20, 25, 30 Resolution: 1920×1080, 2048×1280, 2304×1296, 2560×1440 Sub-Stream Frame Rate (per second): 1, 5, 10, 15, 20, 25, 30 Resolution: 320×240, 352×288, 640×480 |
| Video Streaming | Main Stream Sub-Stream |
| Image Settings | Software-adjustable parameters: display, brightness, contrast, saturation, sharpness, exposure, Wide Dynamic Range (WDR), white balance |
| Image Enhancement | Backlight Compensation (BLC) 3D Digital Noise Reduction (3D DNR) IR overexposure protection |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 to 512 Kbps |
| SMART FEATURE-SET | |
|---|---|
| Smart Event | Human detection, intrusion, and line crossing |
| Basic Event | Motion detection and tampering, exception (unauthorized access) |
| Linkage Method | Trigger notification: ONVIF, HTTPS |
| Region of Interest | 1 region |
| AUDIO | |
|---|---|
| Audio Communication | Two-way |
| INTERFACES | |
|---|---|
| Network Interface | 10/100 Mbps RJ45 self-adaptive Ethernet port |
| Audio Input | Built-in microphone |
| Audio Output | Built-in speaker |
| Button | Reset |
| On-board Storage | microSD card slot up to 256 GB |
