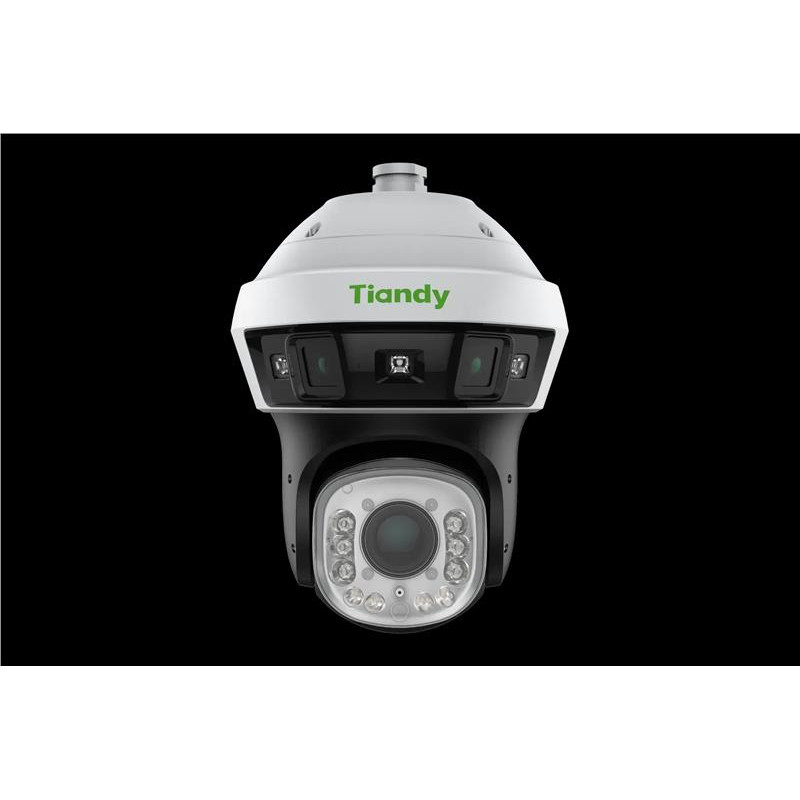

The 4MP panoramic IP camera, based on a 1/1.8" CMOS sensor in the panoramic module and a 1/2.7" CMOS sensor in the main camera, delivers high-quality images. Thanks to illumination up to 150 meters, the image remains clear even at night. The camera is powered by 24V or via PoE technology. The lens is 3.3mm for the panoramic camera and 4.8mm~120mm for the main camera. Light sensitivity for Panoramic: 0.0001lux; Main: 0.001Lux. The panoramic camera features DWDR, while the main camera has 120dB WDR. These are key characteristics for video surveillance of any object. A wide temperature range and durable housing material provide excellent protection against various environmental conditions. Thanks to the Onvif protocol, you can integrate this camera not only with Tiandy recorders but also with recorders from other manufacturers.

Sensor Panoramic: 1/1.8" CMOS; Main: 1/2.7" CMOS
Resolution Panoramic: 3840×1568@25fps; Main: 2560×1440@25fps
Zoom ratio Panoramic: -; Main: 25X
Focal length Panoramic: 3.3mm; Main: 4.8mm~120mm
Light sensitivity Panoramic: 0.0001lux; Main: 0.001Lux
WDR Panoramic: DWDR; Main: 120dB
IR illumination range Panoramic: -; Main: 150m
White light Panorama: 3 Detail: 4
White light range Panoramic: 30m; Main: 30m
Video analytics Missing object, Loitering detection, Running, Parking, Early warning, Queue detection, Heatmap, Hard hat detection, Human/vehicle recognition, Abnormal video, Abnormal sound, Auto-Tracking, Line crossing, Double line crossing, Perimeter, Left object
Compatibility RTSP, P2P, Onvif: ONVIF Profile S/T/G/M
Image enhancement HLC, BLC, Anti-fog
Built-in microphone No
Audio interfaces 1/1
Audio compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio bitrate 8kHz/32kHz/48kHz
Alarm interfaces 2/1
Memory card slot Built-in Micro SD card slot, up to 512 GB
ANR Yes
Power supply AC24V±25%DC24V±10%
Consumption 29W, 55W
Protection class IP66
Operating temperatures -30?~65?(IR OFF) -30?~40?(IR ON)
