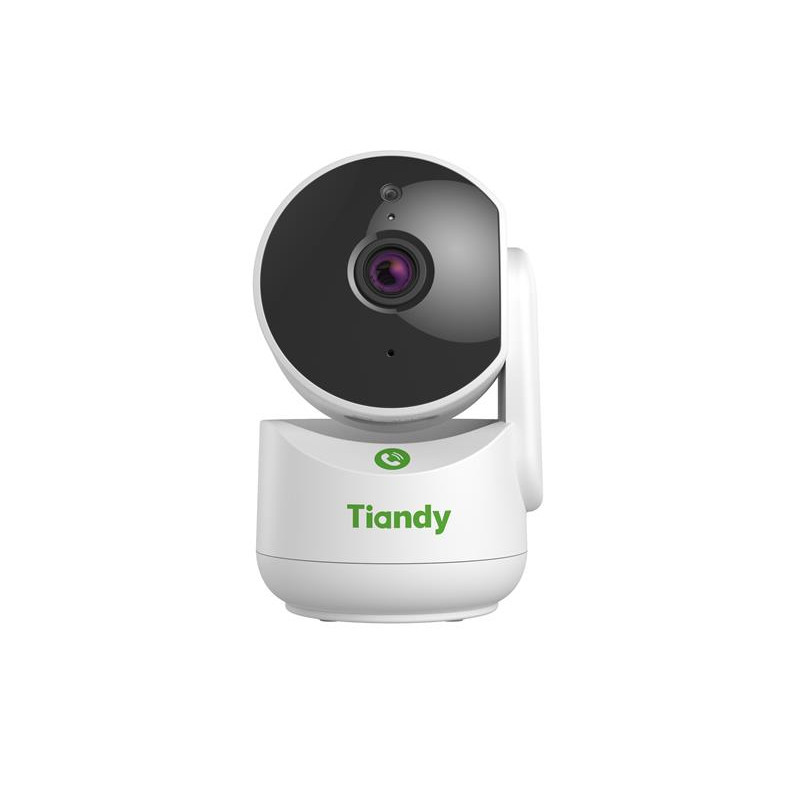

Tiandy TC-H342A is a smart 4-megapixel PTZ Wi-Fi surveillance camera with high image detail and intelligent functions in a compact body. It provides smooth recording at resolutions up to 2560×1440, supports color night vision, and pan-and-tilt control. Thanks to the built-in microphone and speaker, the camera allows for two-way audio communication, and convenient Wi-Fi connectivity simplifies installation. It is an ideal solution for home, office, or yard where flexibility, autonomy, and reliability are required.
The camera is equipped with a 1/2.8″ CMOS sensor and a fixed 4mm lens with an F2.0 aperture, providing a wide viewing angle of almost 80° horizontally. During the day, it delivers clear color images, and at night — thanks to Color Maker technology — it allows for color vision in very low light (from 0.02 Lux), and also has IR illumination up to 15m. The camera supports 350° horizontal rotation and up to 90° tilt, enabling tracking of moving objects — even automatically.
The device implements advanced video analytics functions: digital WDR, 3D noise reduction, backlight compensation (BLC, HLC), privacy zone masking, motion detection, "anti-fog" function, and auto-tracking. The camera records video to a microSD memory card up to 512GB and supports simultaneous connection of two users. Power is supplied via DC 5V, and power consumption is only up to 7W.
The durable plastic casing withstands temperatures from –10°C to +45°C, humidity up to 95%, and also has protection against overvoltage (500V) and electrostatic discharge (6000V). Thanks to Wi-Fi (2.4GHz) wireless connectivity, compatibility with the EasyLive Plus app, and flexible PTZ settings, Tiandy TC-H342A is one of the best solutions for intelligent indoor and outdoor video surveillance.
?? Tiandy TC-H342A Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/2.8″ CMOS |
| Resolution | 4MP (2560×1440) @20fps |
| Lens | Fixed 4mm, F2.0 |
| Viewing Angle (Hor/Ver/Diag) | 78.9° / 41° / 92.9° |
| Min. Illumination | 0.02 Lux (color), 0 Lux with IR |
| IR Illumination | 4 LEDs up to 15m |
| White Illumination | 1 LED up to 8m |
| Color Night Vision | Yes (Color Maker) |
| Video Codecs | S+265, H.265, H.264B/M/H |
| Pan / Tilt | 0–350° (45°/s), –90–90° (30°/s), up to 255 presets |
| Smart Functions | DWDR, 3D DNR, BLC, HLC, masking, defog, alarm, auto-tracking |
| Audio | Built-in microphone and speaker; two-way communication |
| Storage | microSD/SDHC/SDXC up to 512GB |
| Wireless Connectivity | Wi-Fi 2.4GHz b/g/n, up to 30m |
| Network Protocols | TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, ONVIF (S/T), SDK, RTSP, CGI |
| Online Users | Up to 2 |
| Compatibility | EasyLive Plus, Easy7 VMS |
| Power | DC 5V ±25%, up to 7W |
| Protection | Overvoltage 500V, ESD 6000V |
| Temperature / Humidity | –10°C to +45°C; ≤95% RH |
| Dimensions | 74×74×118mm |
| Weight | 0.38kg |
