The T13-750W-12-H frequency converter is a functionally complete electronic device designed for regulating and visually monitoring the operating parameters of an asynchronous three-phase motor with a power not exceeding 750 W.

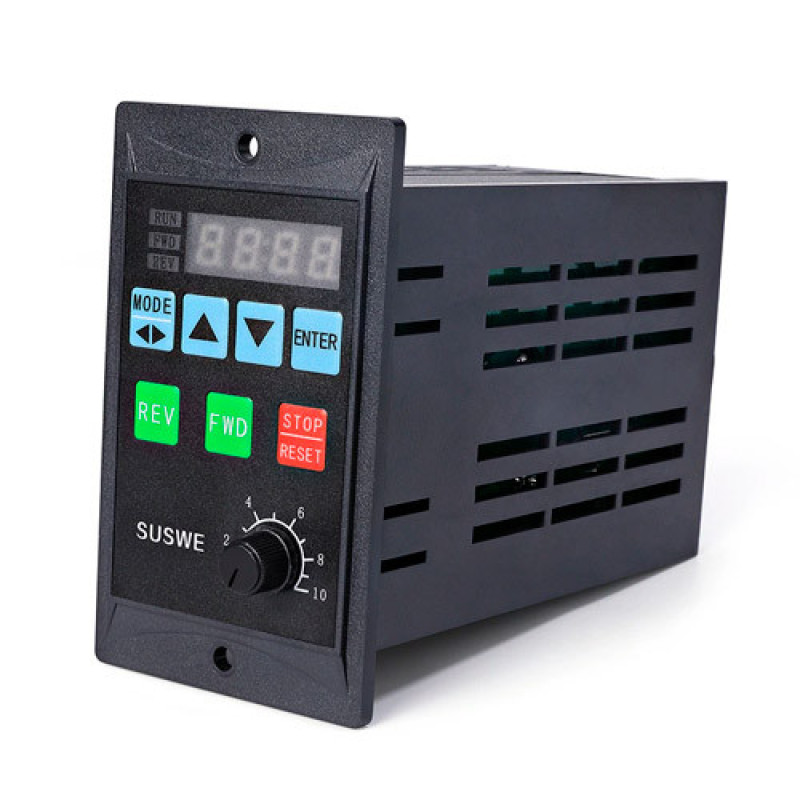

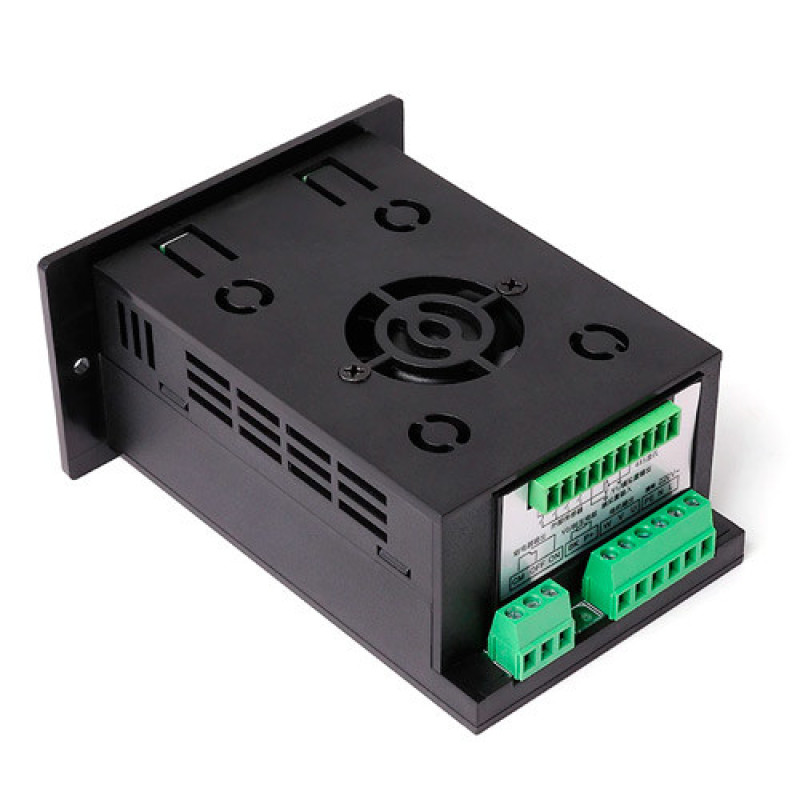

It consists of a plastic enclosure with panel-type mounting, inside which a board with electronic components is placed. The front side of the enclosure features:

A digital display for showing speed and setting operating parameters
Buttons for parameter adjustment and selection
A potentiometer for speed control

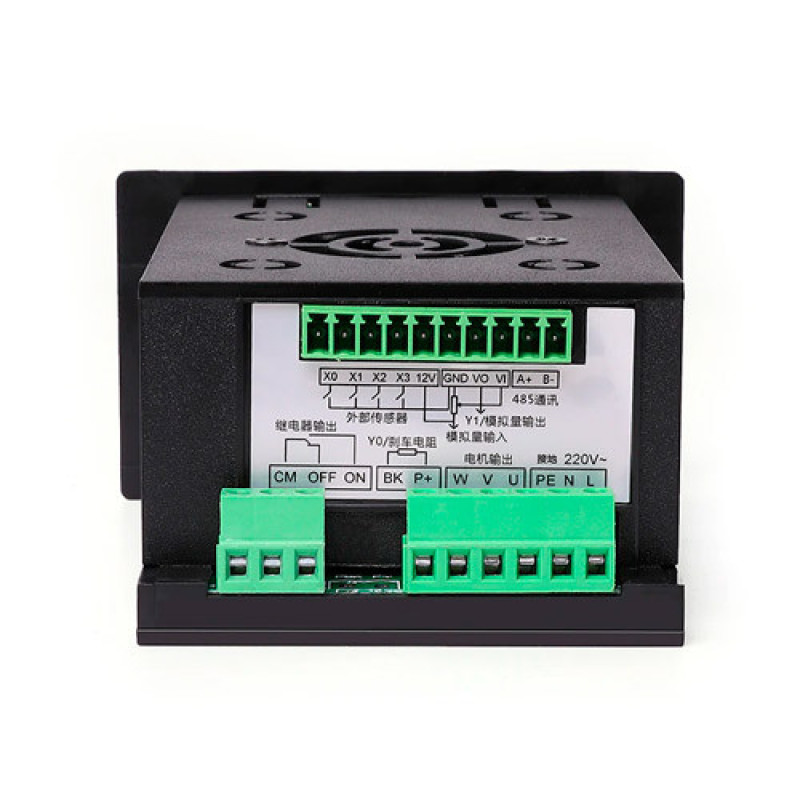

The rear side features terminal blocks for connecting the electric motor, power supply voltage, and input/output signals.
Please note! The inverter is designed to operate from a single-phase 220 V power supply network and with a three-phase electric motor, with windings connected only in a "delta" configuration — for 220 V. Under no circumstances connect the power supply voltage to the U, V, W terminals, as they are intended for the electric motor. This error can damage the device.

Power: 750 W
Supply voltage: 200 – 240 V AC, 50/60 Hz
Output frequency adjustment range: 1 – 99 Hz
PWM carrier frequency: 8 kHz
Maximum output current: 3.86 A
Self-consumption:
