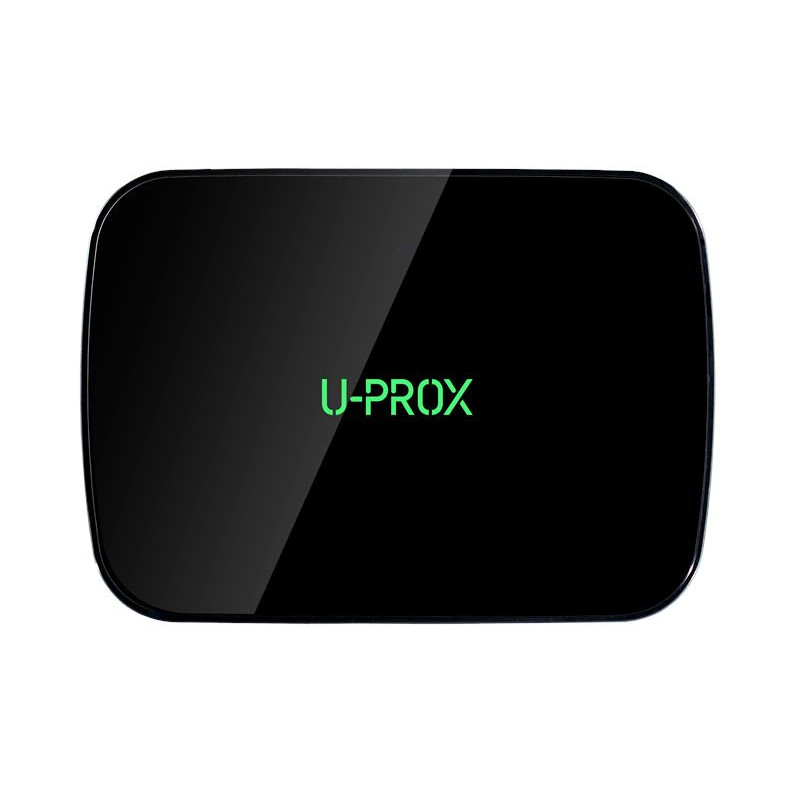

U-Prox MPX L is an intelligent security control panel that provides comprehensive protection for your home or office. With support for up to 250 wireless devices, including motion sensors, opening sensors, keypads, and key fobs, the system is easily scalable to meet your needs. Support for 30 security groups allows for flexible configuration of security zones.
The control panel is equipped with two radio transmitters with automatic sensitivity adjustment and anti-jamming protection, ensuring stable operation even in challenging conditions. Thanks to 256-bit encrypted communication, your information remains protected.
U-Prox MPX L supports photo verification with U-Prox PIRCam wireless sensors, allowing you to receive images when an alarm is triggered. This significantly enhances the level of control and security.
The device is easily configured via a mobile app or web interface and supports over-the-air (OTA) software updates. The built-in 2500 mAh battery provides up to 24 hours of autonomous operation in case of main power outage.
?? Technical Specifications
| Characteristic | Value |
|---|---|
| Number of security groups | 30 |
| Number of wireless devices | Up to 250 (sensors, keypads, key fobs) |
| Number of users | Up to 250 |
| Programmable outputs | Up to 150 |
| Radio frequency | 868.0–868.6 MHz |
| Communication range | Up to 4800 m (open space) |
| Communication channels | Wi-Fi 2.4 GHz, LTE (4G), GSM (2G), 2 SIM cards |
| Encryption | 256-bit, two-way communication |
| Power supply | 12 V, 0.35 A |
| Backup power | 2500 mAh battery, up to 24 hours of autonomous operation |
| Operating temperature | -10°C to +45°C |
| Dimensions | 167 × 120 × 25.4 mm |
| Weight | 245 g |
| Housing color | White or black |
