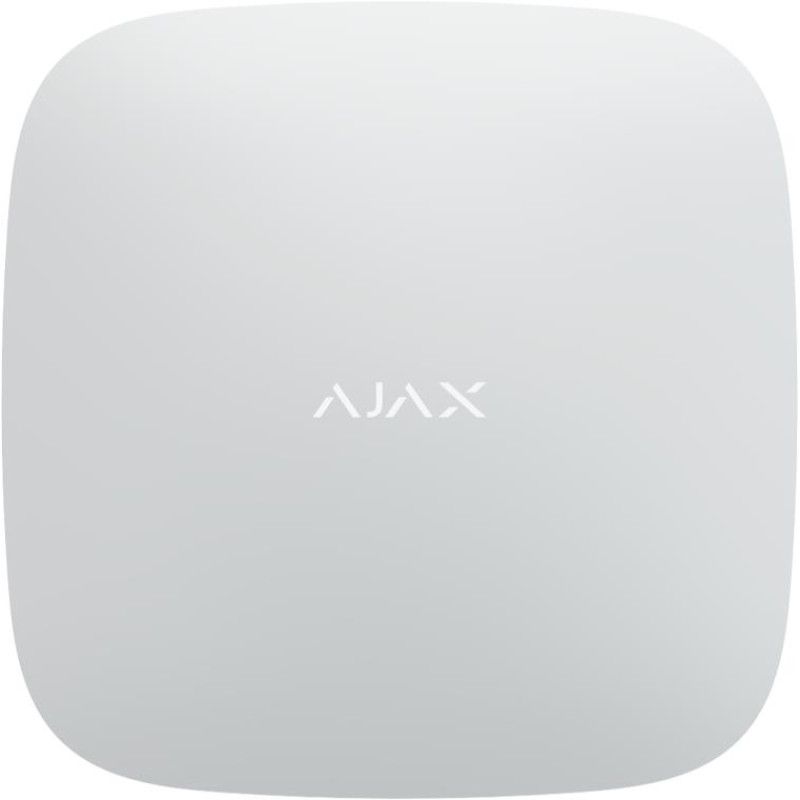

The operating principle of Ajax smart technologies is based on an intelligent network hub that significantly expands the capabilities of each device. This hub controls device operation and collects data using advanced wireless communication technology known as Jeweller. Additionally, it can analyze threats, filter false alarms, and send notifications about real dangers. To ensure system security against sabotage, an impenetrable Ajax Hub is used, providing reliable protection for the secured premises.

Installing the Ajax smart system is quick and easy thanks to interactive instructions and special SmartBracket mounts. This allows the system to be installed in just 15 minutes. It is important to note that sensor availability, trigger zone, and radio noise level can be checked remotely. Also, new devices can be easily connected to the system using QR codes and a single click.

The Ajax smart system has significant potential. Jeweller wireless technology allows the network to be extended up to 2000 meters in open space or across several floors in a business center. The ARM processor provides the power to solve critical tasks. The system operates on Ethernet and can use GSM as a backup communication channel. The Ajax Hub can serve up to 100 devices, and up to 50 users or security companies can be connected to the system using Contact ID.

The Ajax smart system offers hassle-free operation. Even with poor connection quality, the system will still operate using low-speed GPRS communication. Two-way communication with devices allows for continuous checking of their operation and simple adjustments. Firmware and software updates occur automatically and free of charge. System control is possible via a key fob or free smartphone apps (iOS/Android) or through a web browser. The Ajax Hub stores the history of all system events and also provides real-time video streaming from connected cameras.

The Ajax system also provides a high level of protection against failures and sabotage. Connectors and buttons are hidden within the tamper-protected casing. If external power is disconnected, the system automatically triggers an alarm. The Ajax Hub operates on backup power for up to 15 hours. Sensors are periodically checked, ensuring uninterrupted system operation. Jamming detection and prevention systems, channel encryption, and authentication are used to protect against device counterfeiting. The Ajax Hub ensures frequency purity and automatic reconfiguration in case of failure. Additionally, the GSM module provides a backup communication channel in case of internet disconnection.

Ajax is an example of sophisticated engineering. It has an ultra-thin 50-230V AC power source built into the casing, and the Ajax Hub is less than 4 cm thick. All these functions and operational features of Ajax make it an ideal option for reliable and secure protection of premises.

Technical specifications:
Color: White / Black
Dimensions: 162.7x162.7x35.9 mm
Weight: 320 g
Power supply: 110-250 V
Radio signal power: 25 mW
Operating temperature range: From 0 °C to +50 °C
Communication channels: GSM (850/900/1800/1900 MHz), Ethernet
SIM card support: Mini SIM 2G
Sensor communication protocol: Jeweller (868.0-868.6 or 868.7-869.2 MHz depending on sales region)
Sensor communication range: Up to 2000 m (in open space)
Backup battery: Li-Ion 2 Ah (up to 15 hours of autonomous operation *)
Video surveillance: RTSP-enabled video cameras
Available applications for platforms: iOS 9 and above, Android 4.1 and above
Maximum number of users: 50
Maximum number of connected devices: 100
