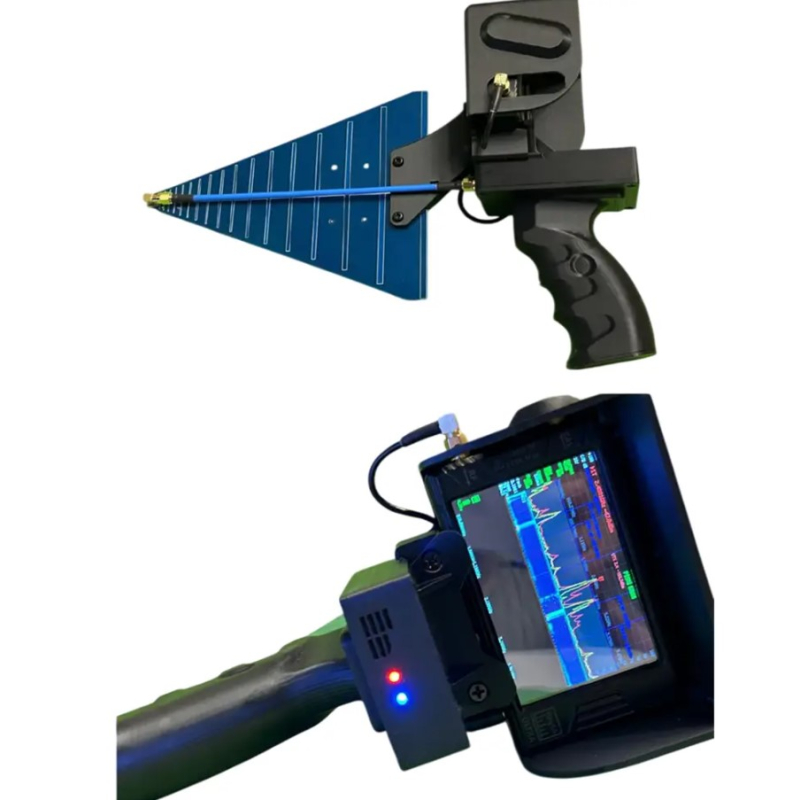

The KHRUSH handheld device (800 - 6000 MHz) is designed to detect and warn of the presence of enemy UAVs, as well as other devices emitting radio signals. It allows receiving and analyzing radio signals in the frequency range from 800 to 6000 MHz. The device is passive, emits nothing, and is not detected by enemy SIGINT assets. The KHRUSH device is designed for handheld mobile use. The product uses the TinySA Ultra Plus ZS-407 radio frequency spectrum analyzer.

NATO Stock Number 5865-61-018-8646

Specifications of KHRUSH handheld (800 - 6000 MHz)

• Analyzer model: TinySA Ultra Plus ZS-407 spectrum analyzer
• Maximum detection range for quadcopter-type UAVs at an altitude of 50-500 meters: 1 to 5 km
• Maximum detection range for fixed-wing UAVs at an altitude of 1000-5000 meters: 5 to 15 km
• Accuracy of UAV direction determination: directional log-periodic antenna (UAV direction determination, approximately 60 degrees)
• Display diagonal: 10 cm / 3.95", 480x320 pixels
• Battery life: 24±5% hours (with additional battery)
• Power supply:
  • Built-in Li-Polymer 4000 mAh battery in the analyzer;
  • Internal Li-Ion battery ≥ 5000 mAh;
  • Additional external 10000 mAh battery.
• Current consumption:
  • 495...520 mA from USB-C (display brightness 100%)405...430 mA from USB-C (display brightness 6%)
• Charger: 5 V (USB-C)
• Connectors: Antenna - SMA Female, calibration - SMA Female
• Holder material: PET (PETG)
• Operating temperature: - 20 °C... + 40 °C
• Operating humidity: ≥85%
• Housing color: black or olive
• Overall dimensions: 320x140x260 mm
• Weight: 700

Purpose of KHRUSH handheld (800 to 6000 MHz)

The device is used for the following areas of military activity:

• Detection and identification of winged reconnaissance UAVs with direction determination capability.
• Detection and identification of winged attack UAVs with direction determination capability.
• Detection of radio frequency signals with direction determination capability for FPV, DJI, AUTEL quadcopters:
  • UAV control channels;
  • UAV video transmission channels;
  • telemetry.
• Checking frequency ranges for interference or EW activity (both friendly and enemy):
  • by satellite navigation signals (Starlink GPS module suppression);
  • by communication frequencies and receiving frequencies of UHF and VHF repeaters;
  • UAV control channels;
  • UAV video reception channels.

Price of KHRUSH handheld (800 to 6000 MHz)

By purchasing this product on the Bezpeka Club marketplace, you can always be sure of the best price, as we regularly monitor market prices for all security system products. The product price includes pre-sale consultation, technical support, and an official warranty.
