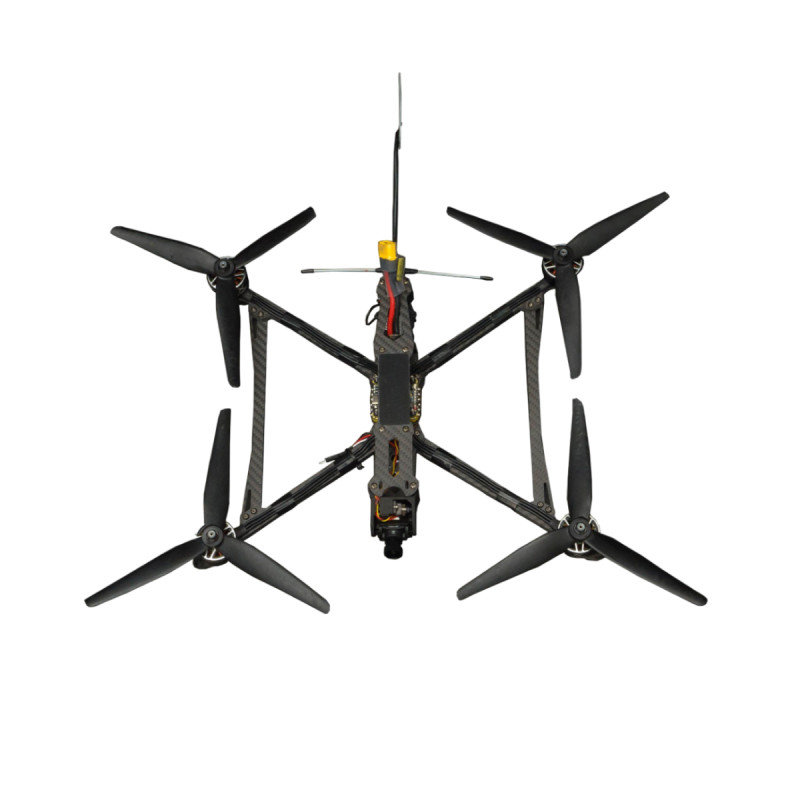

Predator Ultra Drone from the 3dtech brand is a high-performance FPV aircraft designed for professional tasks, tactical missions, surveillance, and long-range video transmission. This device belongs to the category: Drones & Quadcopters > FPV Drones. Its durable carbon frame, modern electronics, and extensive customization options make the Predator Ultra a versatile solution for enthusiasts and professionals with high demands.
Specifications
- Payload capacity: 2.5 kg
- Flight duration: 13 min
- Tactical range: 20 km
- Cruising speed: up to 70 km/h
- Control type: ELRS / TBS*
- Control frequencies: 390-510 / 720-1020 MHz**
- Image transmission: day / night / thermal analog camera
- Video channel frequencies: 4.9-6.1 / 3.3 / 1.3 GHz*
- Flight altitude: 50 to 1000 m
- Power battery (production configuration): Li-on 6S2P 8000 mAh
Package Contents
- Frame: 8 inches (carbon)
- Flight controller board / ESC: F405, ESC 60A
- Motors: 2812 900kv
- VTX: 4.9-6.1G 2.5W
- Camera: day 1200 TVL. Optional night / thermal
- Video antenna: 5.8G, RHCP, long
- Control antenna: 915 mHz; optional multi-band (tunable to different frequencies)
- Propellers (props): 8040
- Strap: 2 pcs
- Battery: Li-on 6S 2P 12600mAh / 8400mAh (not included in price)
- Manual: 1 pc
Additional Features
- Multi-band control antenna for extended coverage and mission adaptation
- Adapted FailSafe for safe return and emergency landing
- 6-band ELRS firmware with custom frequency option for flexible control setup
- PID and filtering tuned to payload weight for flight stability with various loads
- VTX power control from the remote — quick adjustment of transmitter output power
Optional Equipment (options)
- Initiation boards v1 (2 fuses, contact sensor, self-activation system)
- Initiation boards v2 (remote activation)
- Night camera
- Analog thermal camera
- Drop system
- Swivel camera
- Antennas for non-standard frequencies
LI ION BATTERY 6S2P (battery details)
- 5200 mAh Sony Murata
- Max discharge current: 60A (160A)
- Weight: 580 g
- 8400 MAH Molicel
- Max discharge current: 90AV (180A)
- Weight: 840 g
The Predator Ultra Drone combines an 8" carbon frame with an F405 and ESC 60A kit, powerful 2812 900kv motors, and a 4.9-6.1G 2.5W VTX. Paired with a 5.8G RHCP antenna and an optional multi-band control antenna, this ensures the selection of the optimal frequency for a specific mission. Camera options (day 1200 TVL, night, thermal) expand the range of applications from night surveillance to search and rescue operations. A payload capacity of 2.5 kg allows for the installation of additional modules while maintaining stability thanks to PID and filtering settings.
The Predator Ultra is designed for tactical flights up to 20 km with a cruising speed of up to 70 km/h and an operating altitude of 50–1000 m. Components and options allow for adapting the configuration to specific tasks. Batteries (Li-on 6S 2P 12600mAh / 8400mAh) are sold separately and are not included in the standard price.
If you need a durable, flexible FPV drone with professional sensors and transmitters, the Predator Ultra Drone from 3dtech will be a reliable choice for flights, surveillance, and technical tasks.
