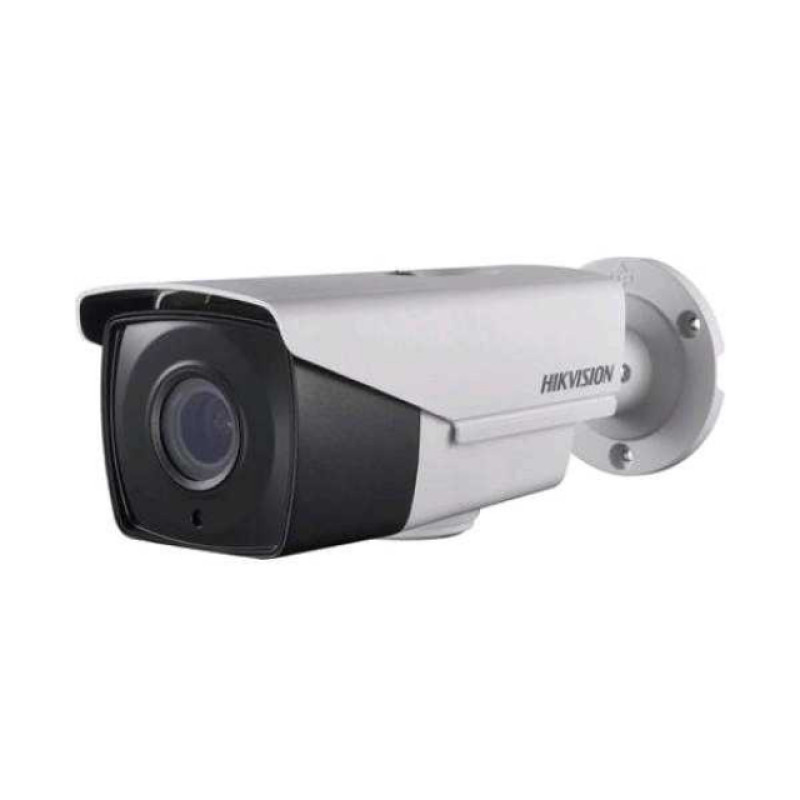

Hikvision DS-2CE16F7T-IT3Z. 3 MP Turbo HD WDR Video Camera
Hikvision DS-2CE16F7T-IT3Z — 3 MP Turbo HD WDR Video Camera
Brand: Hikvision. Category: Electronics > Video Surveillance > Video Cameras. This professional 3.0 MP Turbo HD WDR video camera is designed for 24/7 outdoor and indoor video surveillance, providing clear images in challenging lighting conditions and at night.
Brief Overview
The camera is equipped with a high-performance WDR CMOS matrix (WDR High-performance CMOS), supports day/night mode (ICR), and guarantees a high-quality picture under contrasting lighting. The maximum resolution of 3.0 MP allows capturing important details. Thanks to low illumination down to 0.01 Lux at F1.2 in day mode and 0 Lux with IR illumination, the device maintains high frame informativeness even in twilight and complete darkness.
Features and Benefits
- The motorized f=2.8-12 mm lens allows changing the focal length without physical access to the camera; the viewing angle varies from 26.8° to 83° for flexible control of the surveillance area.
- EXIR IR illumination up to 40 meters for clear night shooting without overexposure and with uniform frame illumination.
- OSD menu for convenient adjustment of image parameters and camera functions.
- 1-TurboHD output for connecting to compatible recorders and video surveillance systems.
- IP66-rated housing is suitable for outdoor operation and protects against dust and moisture.
| Parameter | Value |
|---|---|
| ID | 19765 |
| Model | DS-2CE16F7T-IT3Z |
| Resolution | 3.0 MP |
| Matrix | WDR High-performance CMOS |
| Mode | Day/night (ICR) |
| Sensitivity | 0.01 Lux/F1.2 (day), 0 Lux with IR |
| Lens | Motorized f=2.8-12 mm |
| Viewing Angle | 26.8°-83° |
| OSD Menu | Yes |
| Video Output | 1-TurboHD |
| IR Illumination | EXIR, up to 40 m |
| Protection Rating | IP66 |
| Power Supply | DC 12V / 6 W |
| Dimensions | 86×82×220 mm |
| Weight | 680 g |
Where and How to Use
The Hikvision DS-2CE16F7T-IT3Z is ideal for objects with increased image quality requirements: private homes, commercial and warehouse premises, parking lots, store and office facades. The motorized lens facilitates field-of-view adjustment after installation, and the IP66-rated housing ensures reliable operation in rain and dust conditions.
Installation Tips
- Position the camera to maximize the 2.8–12 mm focal length range and avoid blind spots.
- When installing for night mode, check the EXIR illumination coverage up to 40 meters to ensure the required surveillance range.
- Connect the camera to a compatible TurboHD recorder to save video in high quality.
The Hikvision DS-2CE16F7T-IT3Z combines high resolution, effective night shooting, and a protected housing, making it a versatile solution for modern video surveillance systems.
