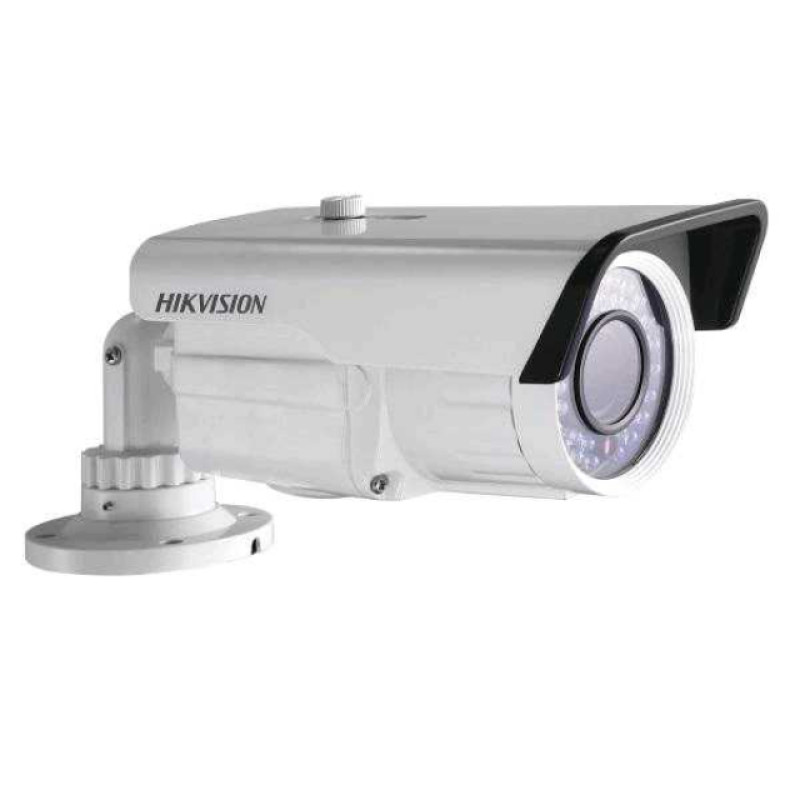

Hikvision DS-2CE16C5T-AVFIR3 — 1.3 MP Turbo HD Video Camera

Brand: Hikvision. Category: Electronics > Video Surveillance > Video Cameras. This DS-2CE16C5T-AVFIR3 model combines a high-quality sensor, convenient optical characteristics, and broad functionality for installation in video surveillance systems in both residential and commercial facilities.

Brief Overview

The 1.3 MP Turbo HD day/night (ICR) video camera with a 1/3" Progressive Scan CMOS sensor provides a clear picture in daylight and effective operation in low-light conditions. Sensitivity is 0.001 Lux/F1.2 in day mode and 0 Lux with IR illumination enabled, allowing for informative video even in complete darkness.

Technical Specifications

• Resolution: 1.3 MP (Turbo HD)
• Sensor: 1/3" Progressive Scan CMOS
• Day/Night Mode: ICR (Infrared Cut Filter Removal)
• Light Sensitivity: 0.001 Lux/F1.2 (day), 0 Lux with IR
• Lens: f=2.8-12 mm (viewing angle 78°-28°)
• Digital Technologies: 3D-DNR (Digital Noise Reduction), SMART IR for illumination level correction
• Menu: OSD menu for camera parameter settings
• IR Illumination: up to 40 m
• Signal Outputs: HD/Composite (analog composite)

Advantages and Applications

This video camera is ideal for outdoor and indoor monitoring: residential buildings, yards, entrances, shops, warehouses, and offices. Thanks to the variable focal length of 2.8–12 mm, you get flexibility in adjusting the viewing angle — from a wide panoramic view to narrow detailed control. SMART IR provides uniform illumination of objects at night for clearer images at distances up to 40 meters.

Integration and Setup

The camera supports standard HD/Composite outputs, making it compatible with most Turbo HD recorders and analog systems. The OSD menu allows for quick adjustment of operating parameters without the need for additional software. 3D-DNR functions help reduce digital noise in low light, which improves recording quality and reduces the load on the video storage system.

Installation Recommendations

To achieve optimal video quality, it is recommended to install the camera at a height that allows for proper coverage of the desired viewing area and to adjust the focus according to the distance to the monitored objects. When installing outdoors, care should be taken to protect cables and mounting points from atmospheric influences.

Summary

The Hikvision DS-2CE16C5T-AVFIR3 is an affordable and reliable solution for video surveillance with Turbo HD support, night vision up to 40 m, a variable 2.8–12 mm lens, and a set of useful features (3D-DNR, SMART IR, OSD). The video camera is designed for a wide range of security and video monitoring tasks and ensures stable operation in both day and night conditions.
