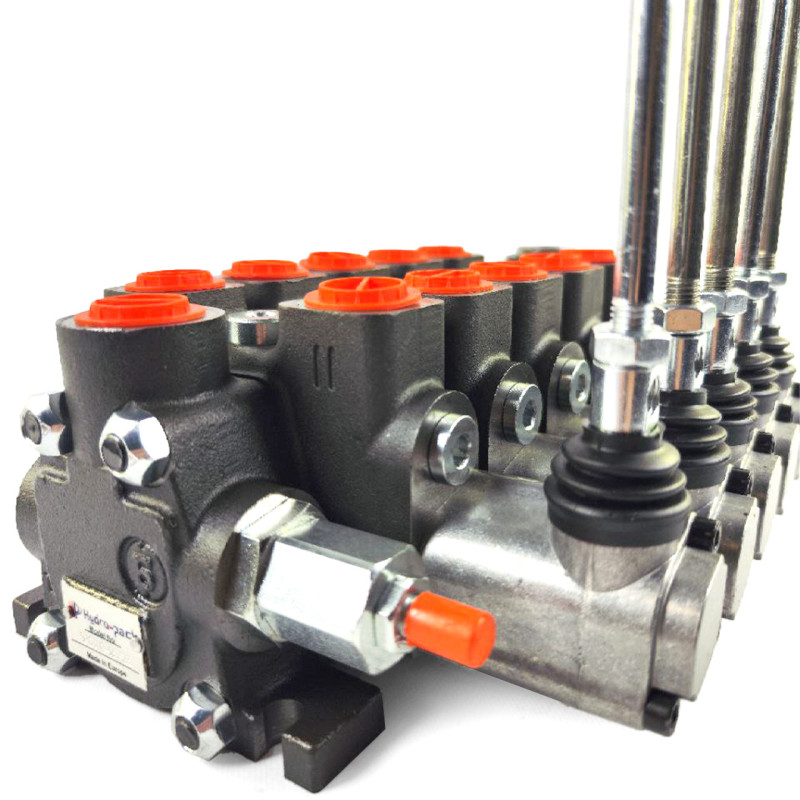

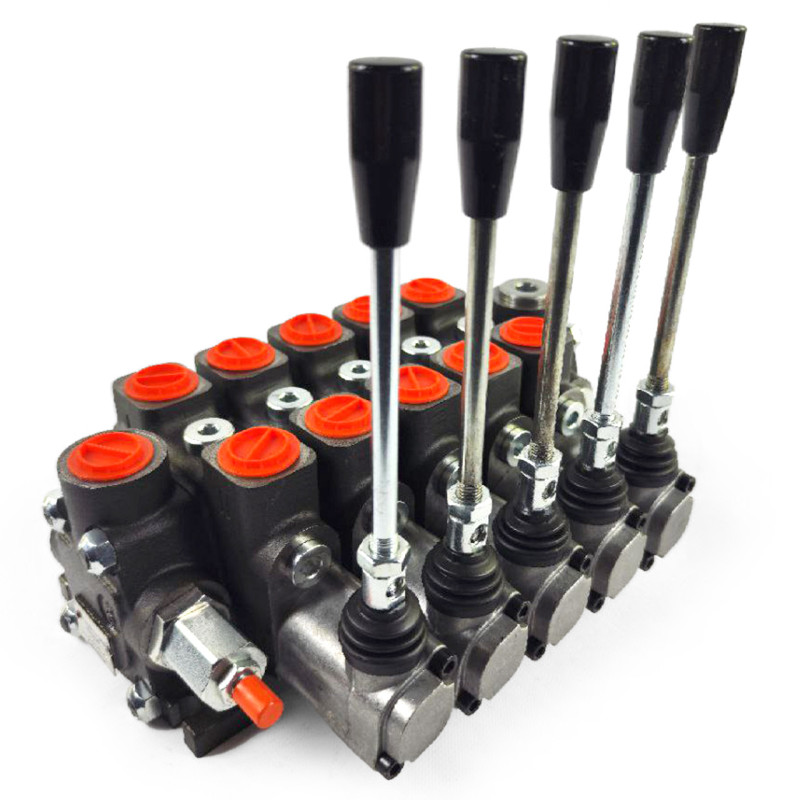

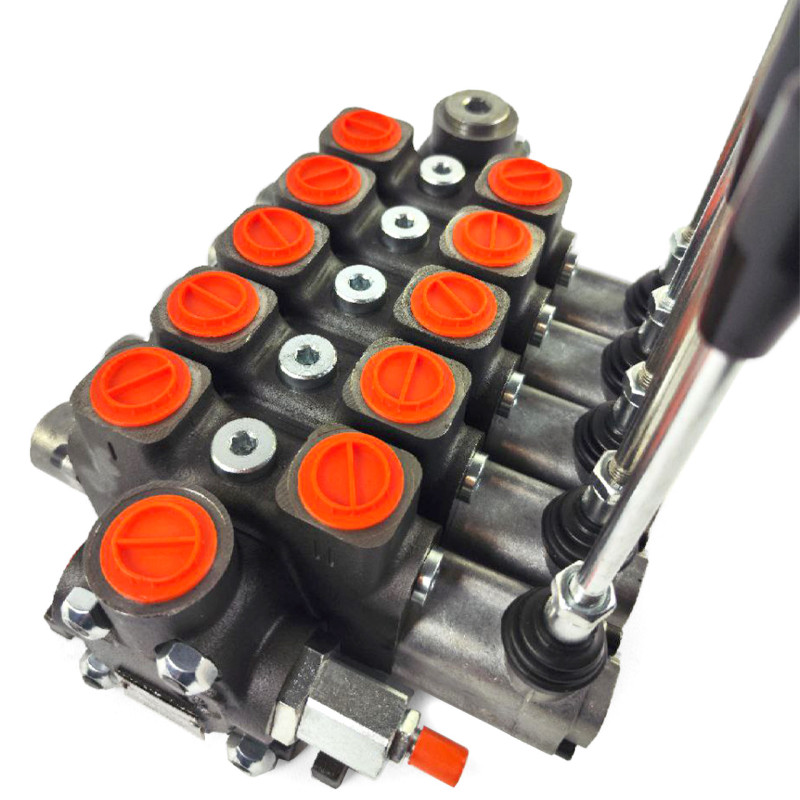

Badestnost 5PC100 Sectional Hydraulic Distributor — 5 Sections, 80-100 l/min

The Badestnost 5PC100 sectional hydraulic distributor (manufacturer: Bulgaria) is designed for starting, stopping, and precisely regulating the flow of working fluid between hydraulic pumps and actuators — hydraulic cylinders and hydraulic motors. The distributor features manual control with spools that switch between three positions using a convenient handle, ensuring simple and reliable hydraulic system control without additional electric drive. Installation is performed by fastening with three M8 bolts, guaranteeing secure fixation in the machine body or as part of the hydraulic system.

The 5PC100 model is distinguished by its modular design: the sectional principle allows for changing the number of sections and combining them according to equipment requirements or operator tasks. Each section has an independent operating mode and its own functions, making this distributor a versatile choice for various special machinery: loaders, crane manipulators, combines, tractors, and other agricultural and construction equipment.

Key Advantages

• Modular design — flexible increase or decrease in the number of sections;
• Manual three-position control — simplicity and reliability of operation;
• Reliable fastening with three M8 bolts — resistance to vibrations and loads;
• Compatibility with typical hydraulic systems of loaders, tractors, and combines.

Technical Specifications of Badestnost 5PC100 Hydraulic Distributor

• Number of sections: 5
• Nominal flow rate: 80 l/min
• Maximum flow rate: 100 l/min
• Ambient temperature: -40°C...+60°C
• Working fluid temperature: -15°C...+80°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 20...100 mm²/s
• Maximum operating pressure: P=210; T

Manufacturer: Badestnost (Bulgaria)

Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors

This hydraulic distributor is ideal for modernizing and repairing hydraulic systems of various equipment where a simple and reliable flow distribution method is required. Installation does not require complex adjustments: after mechanical fastening and line connection, it is necessary to check the tightness of connections and the compatibility of the working fluid with the manufacturer's requirements. Regular maintenance, maintaining the cleanliness of the working fluid, and viscosity control will extend the device's service life and ensure stable operation of the hydraulic system.

By ordering the Badestnost 5PC100 sectional distributor, you receive a reliable component from a well-known brand from Bulgaria, which combines ease of use and the possibility of flexible configuration for specific tasks. If necessary, we will help you select the number of sections and configuration for your equipment.
