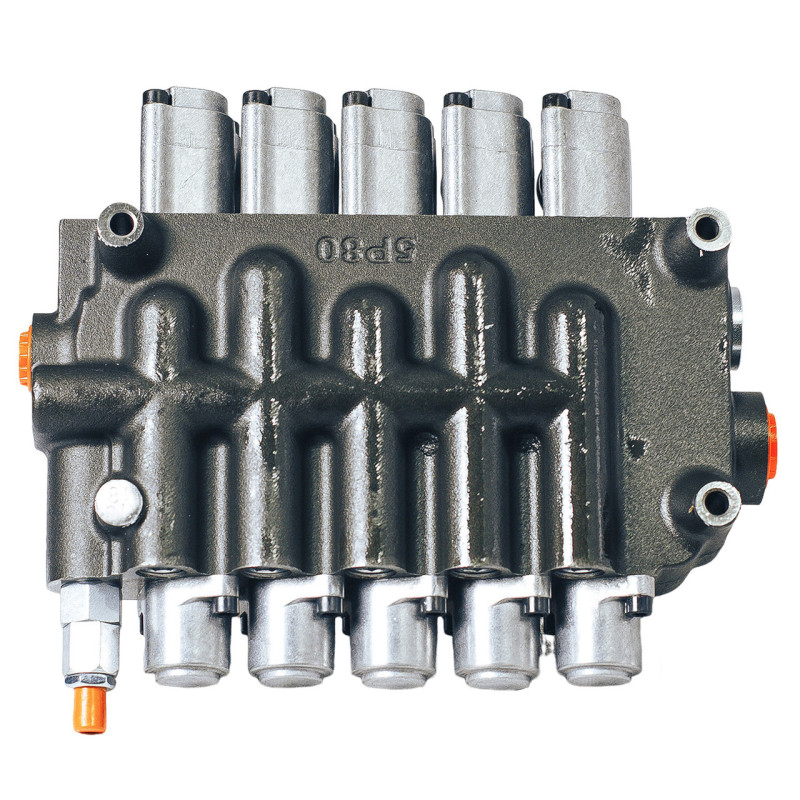

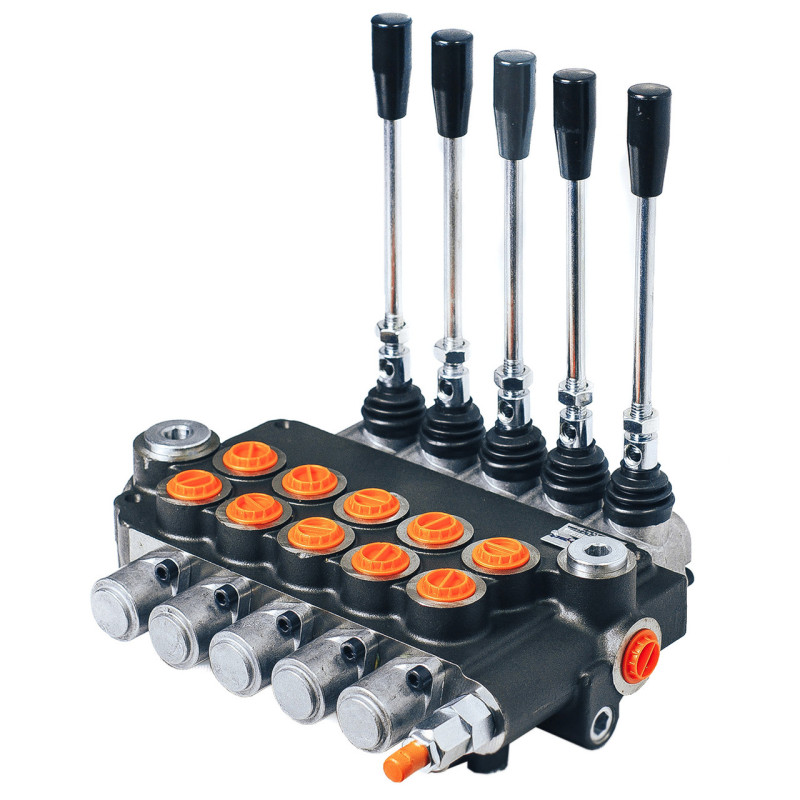

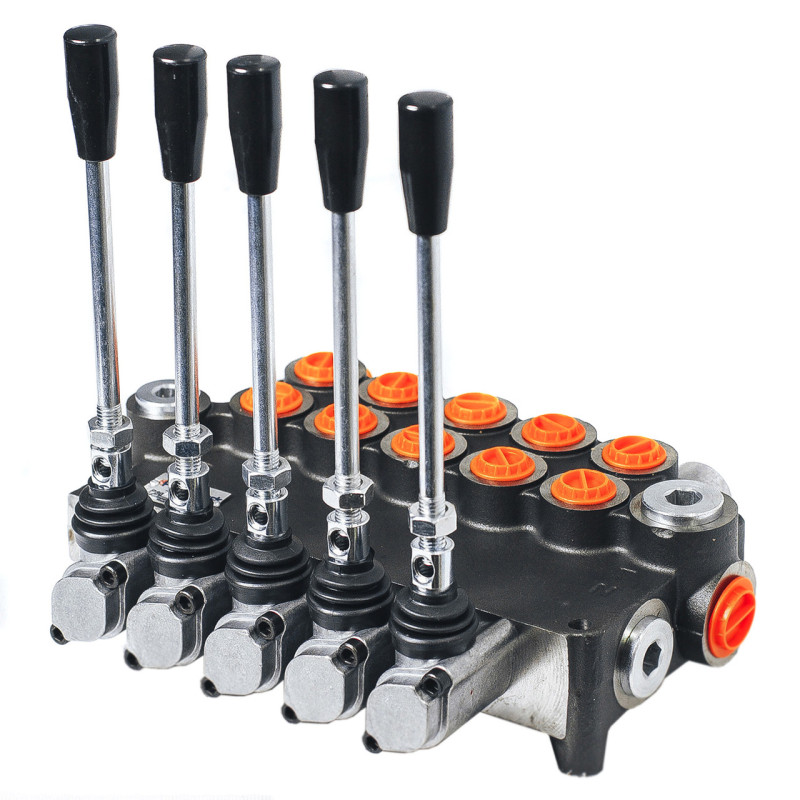

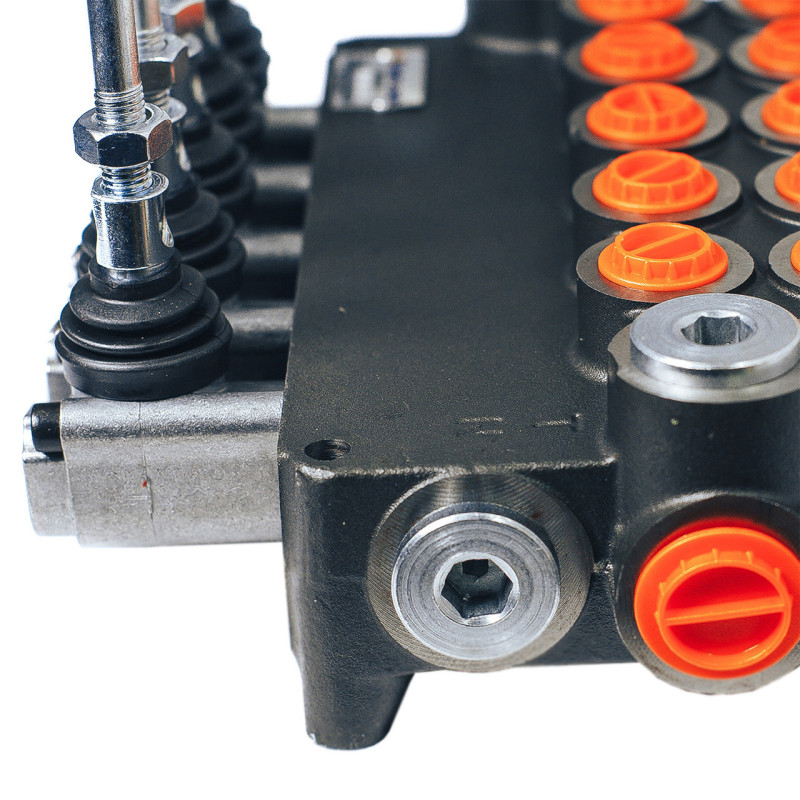

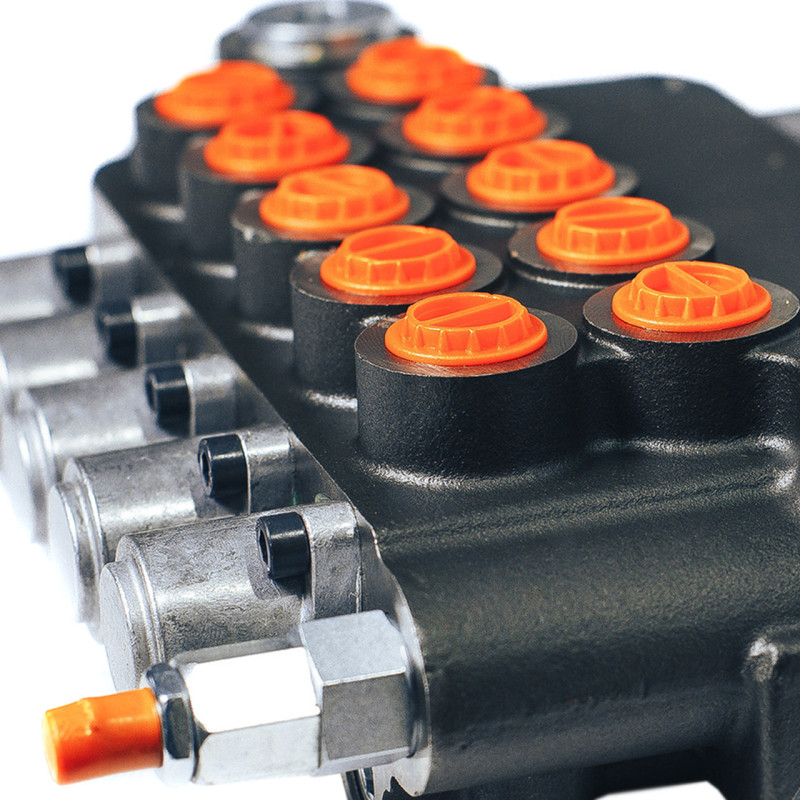

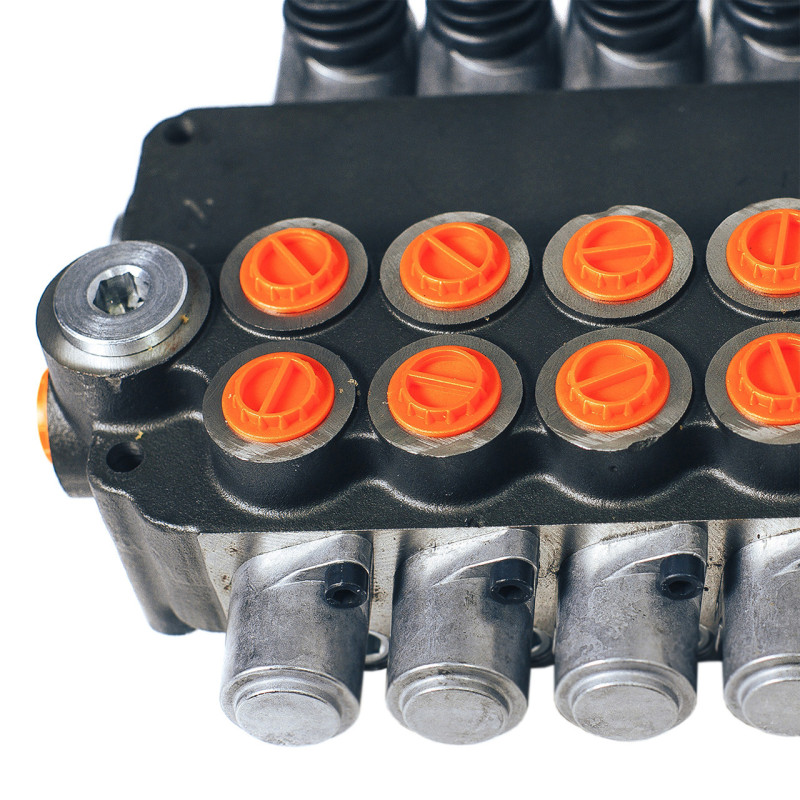

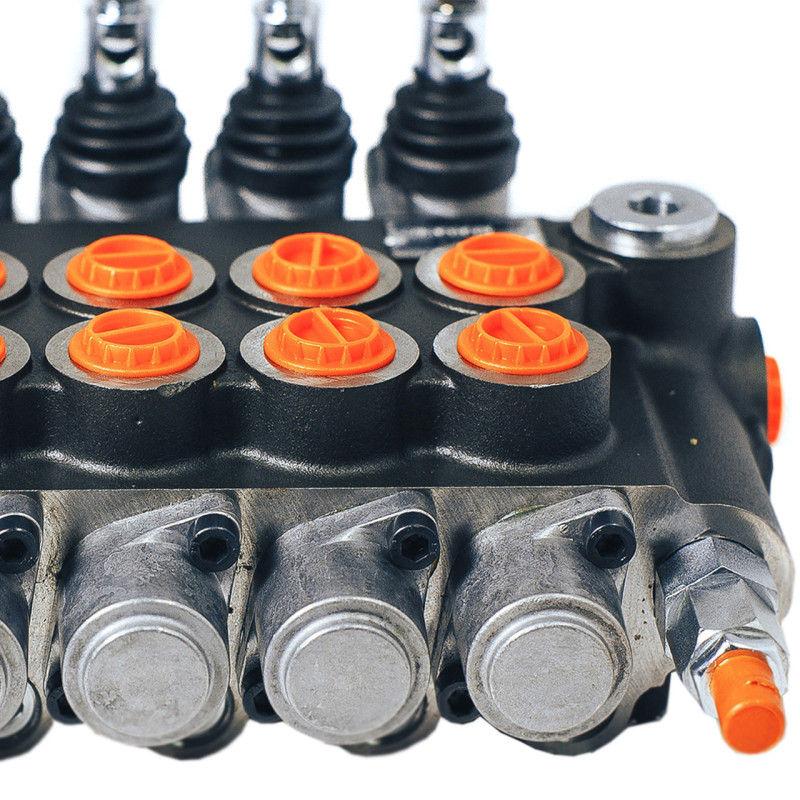

Monoblock Hydraulic Distributor 5P80 Badestnost (Bulgaria)

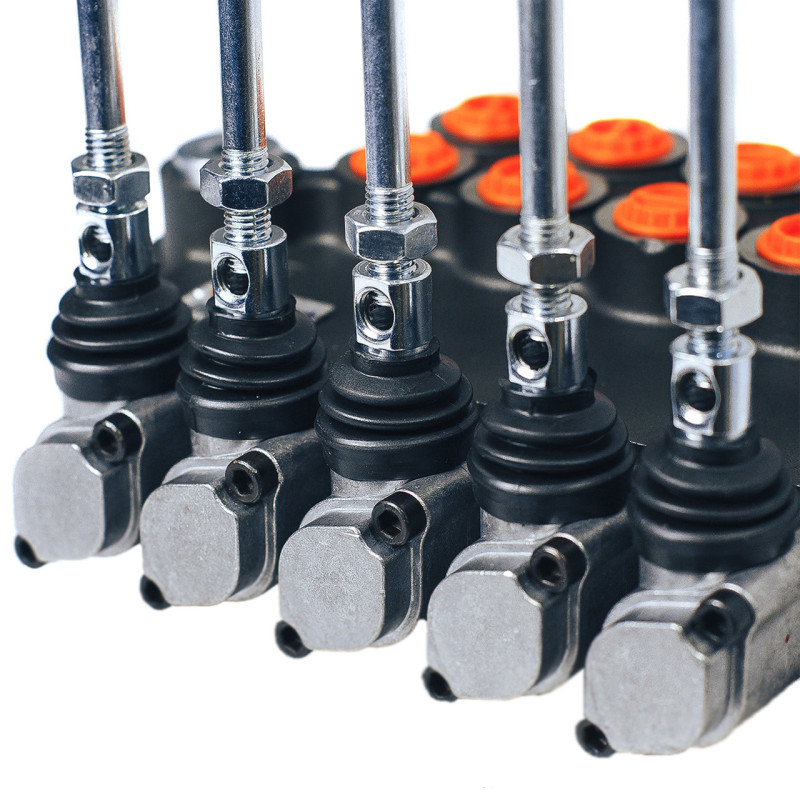

Badestnost 5P80 is a monoblock hydraulic distributor with manual control, designed to start, stop, and regulate the flow of working fluid between a hydraulic pump and actuators (hydraulic cylinders, hydraulic motors). The distributor has 5 working sections and is designed for a flow rate of 80 l/min. The body is made of EN-GJL300 cast iron; plungers (spools) are made of carburized steel with hard chrome plating for increased wear resistance. Control is manual using levers that provide three-position switching; mounting is performed using three M8 bolts.

Purpose and Application

Monoblock hydraulic distributors of the 5P80 series are widely used in mobile hydraulics, particularly in construction and agricultural machinery. They allow the operator to precisely control the direction and intensity of the flow, fix positions for safe and convenient operation, and ensure reliable performance under heavy loads. The design and materials used guarantee durability under intensive operation.

Key Parameters

• Number of working sections: 5


• Flow rate: 80 l/min


• Ambient temperature: -40°C...+60°C


• Hydraulic fluid: mineral oil / hydraulic oil


• Viscosity: 12...800 mm²/s


• Working fluid temperature: -15°C...+80°C


• Filtration: 10 per NAS 1638


• Max. operating pressure: P = 315 bar; at T = 50°: A, B = 300 bar


• Leakage (A,B-T): 6 cm³/min at 100 bar, 46 cSt


• Spool stroke: +/- 7 mm


• Actuation force: < 220 N


• Detailed information: PDF, PDF2

The monoblock design and manufacturing materials ensure durability and wear resistance in challenging operating conditions. The distributor is easy to install and maintain: a simple mounting method (three M8 bolts) allows for quick installation and replacement of the unit on equipment. The technical characteristics and permissible operating modes make the 5P80 a versatile solution for machines requiring simultaneous control of several hydraulic lines with an average flow rate of up to 80 l/min. Thanks to reliable materials (EN-GJL300 for the body and carburized steel with chrome plating for the plungers), low leakage and stable operation under pressure are ensured.

Manufacturer: Badestnost (Bulgaria). Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors. This distributor is suitable for use in a wide range of mobile and stationary equipment where reliable mechanical distribution of working fluid flows is required. If you need additional technical data or assistance with selecting compatible hydraulic system components, please contact us; we will help you choose the optimal solution for your tasks.
