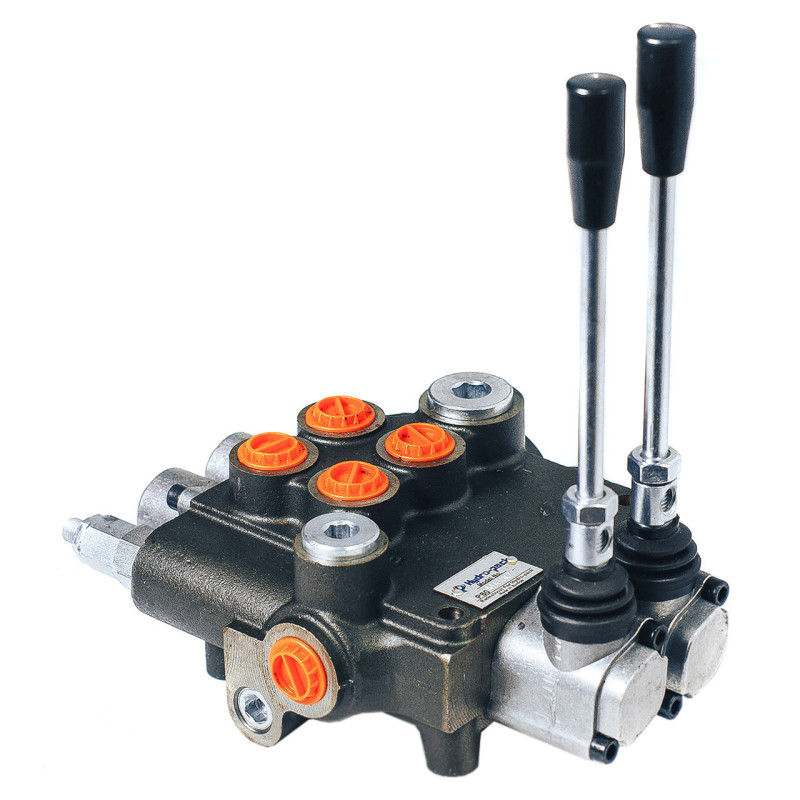

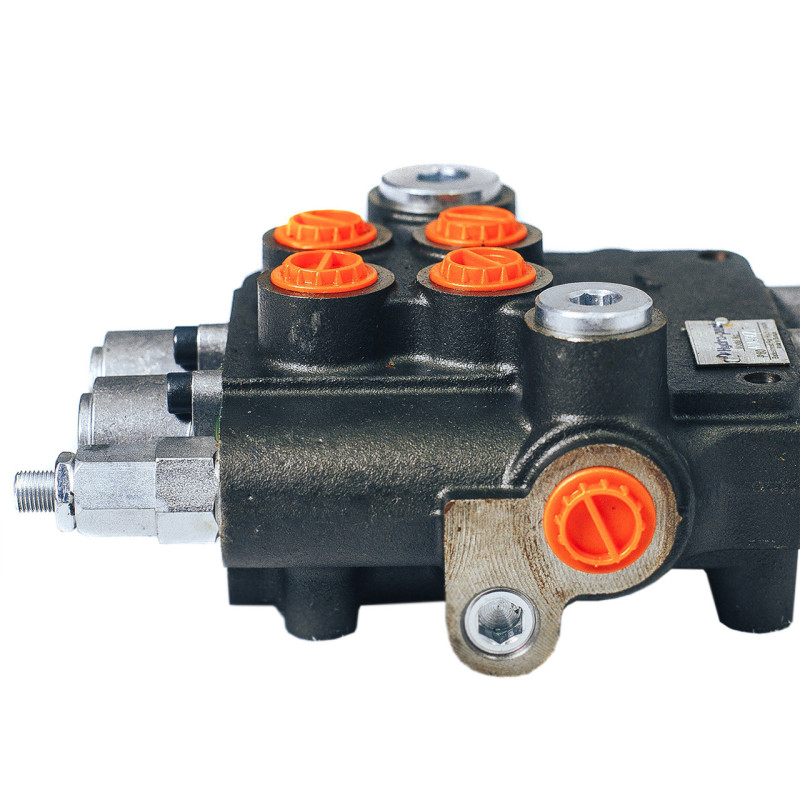

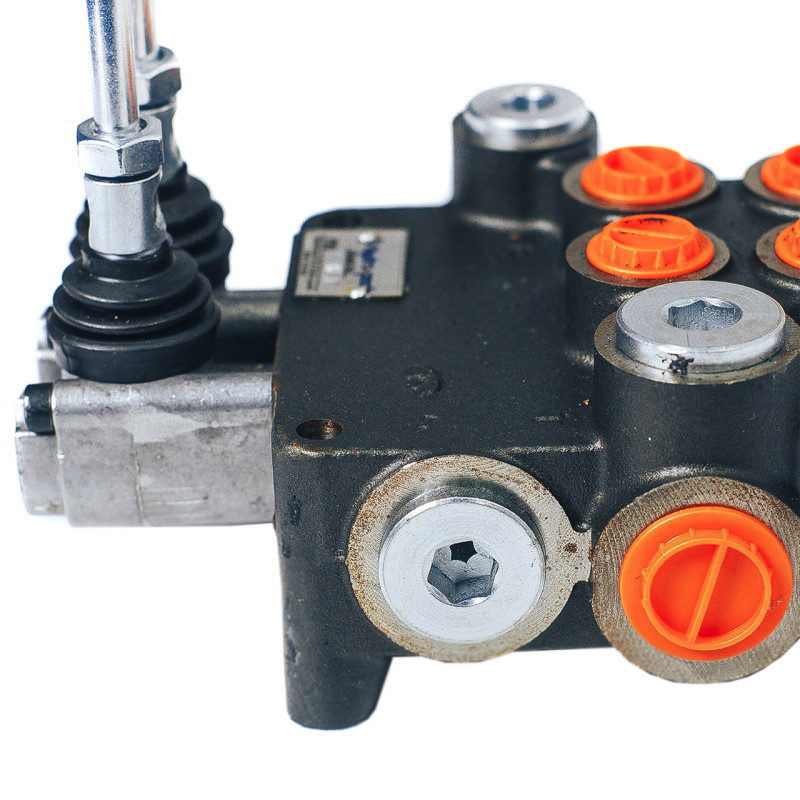

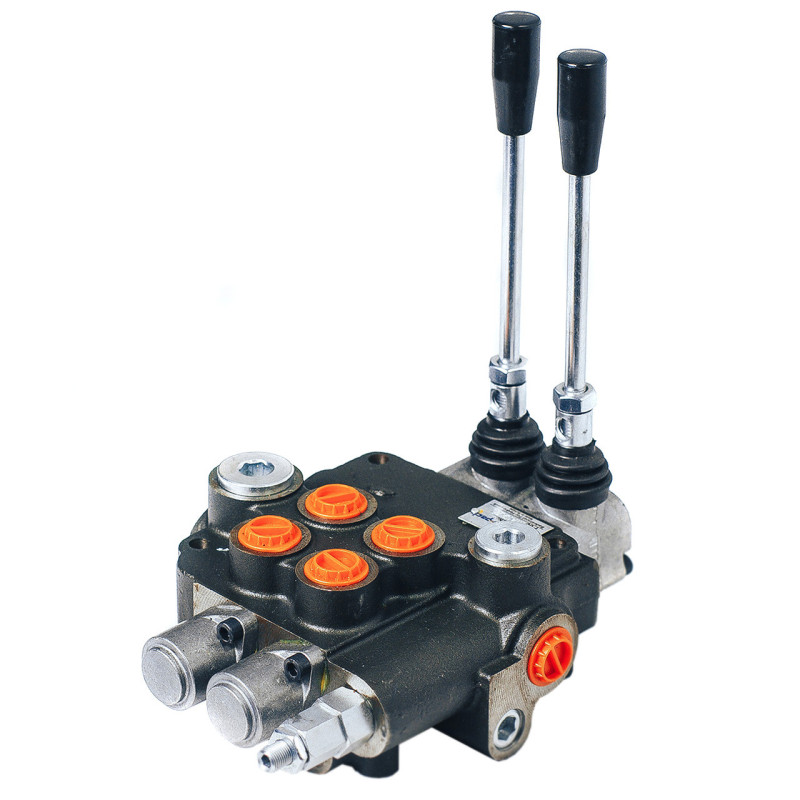

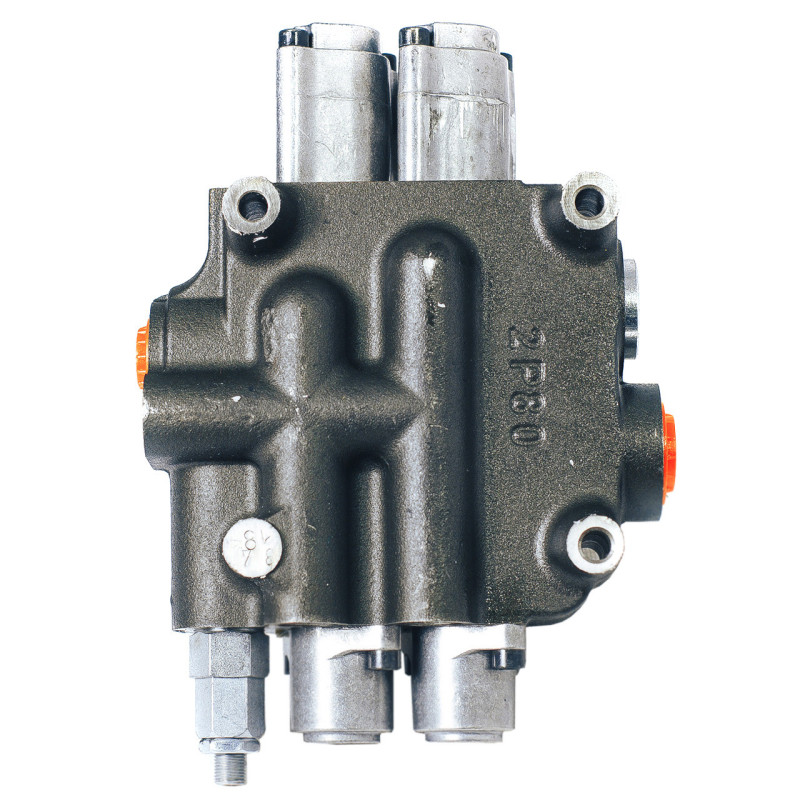

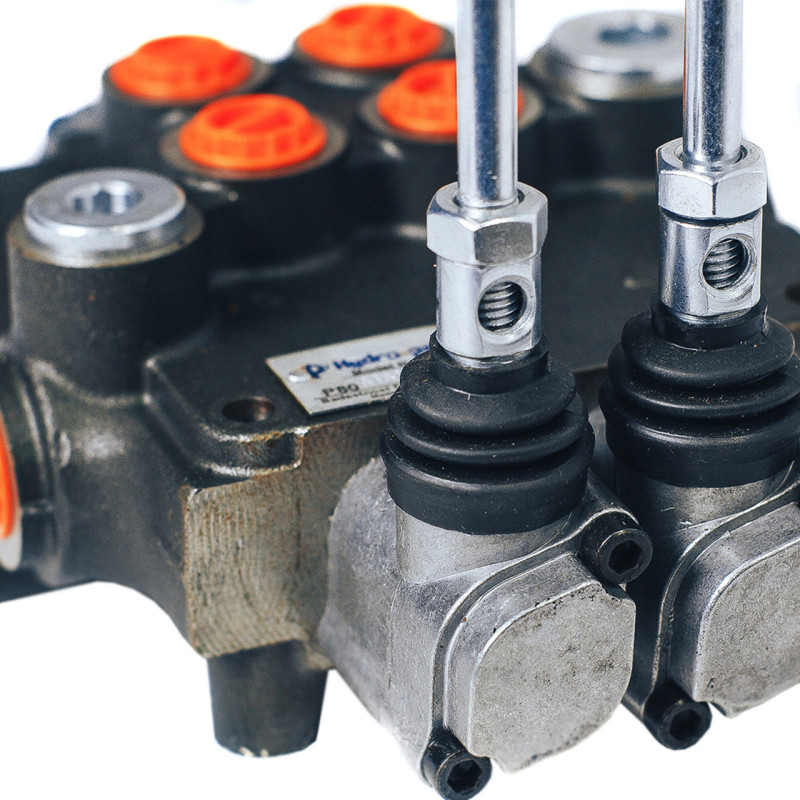

Monoblock Hydraulic Distributor 2P80 Badestnost (Bulgaria)
The Badestnost 2P80 monoblock hydraulic distributor is a manual spool flow distributor manufactured in Bulgaria and designed for use in mobile and stationary hydraulic systems. The 2P80 model provides starting, stopping, and controlling the direction and intensity of working fluid flow between the hydraulic pump and actuators (hydraulic cylinders, hydraulic motors). The body is made of EN-GJL300 cast iron, the spools are manual with three fixed positions for precise control, and the plungers are made of case-hardened steel with hard chrome plating for increased wear resistance and durability. Mounting is done with three M8 bolts, making installation simple and reliable.
Application and Advantages
The 2P80 distributor is widely used in mobile hydraulics: construction equipment, agricultural machinery, trailed and mounted mechanisms. The operator gains control over flow direction, the ability to fix the spool position for safe operation, and optimal throughput for moderate hydraulic systems. The monoblock design and manual control ensure ease of maintenance and a long service life with regular technical care.
Key Parameters
- Number of working sections: 2
- Flow rate: 80 l/min
- Ambient temperature: -40°C…+60°C
- Hydraulic fluid: mineral oil / hydraulic oil
- Viscosity: 12…800 mm²/s
- Fluid temperature: -15°C…+80°C
- Filtration: 10 according to NAS 1638
- Maximum operating pressure: P = 315 bar; at T = 50°C for lines A, B = 300 bar
- Leakage (A,B-T): 6 cm³/min at 100 bar, 46 cSt
- Spool stroke: +/- 7 mm
- Actuation force: < 220 N
- Mounting: three M8 bolts
- Materials: body — EN-GJL300 cast iron; plungers — case-hardened steel with hard chrome plating
- Manufacturer: Badestnost (Bulgaria)
- Additional information and technical materials: PDF, PDF2
The 2P80 model is designed to provide the necessary sealing and control precision in a wide range of tasks: lifting mechanisms, rotary devices, and drives for working units. By using proven materials and a classic spool-type design, this hydraulic distributor guarantees long-term operation with proper use and timely maintenance.
| A | B | C | D | P1 | P2 | T1 | T2 |
|---|---|---|---|---|---|---|---|
| 80 mm | 94 mm | 160 mm | 103 mm | + | + | + | + |
Product category: Hydraulic Systems > Hydraulic Distributors. All technical parameters, materials, and operating conditions are taken into account in the description, allowing for an informed decision when selecting equipment for your hydraulic system.
