Monoblock Hydraulic Distributor 2P40 Badestnost (Bulgaria)

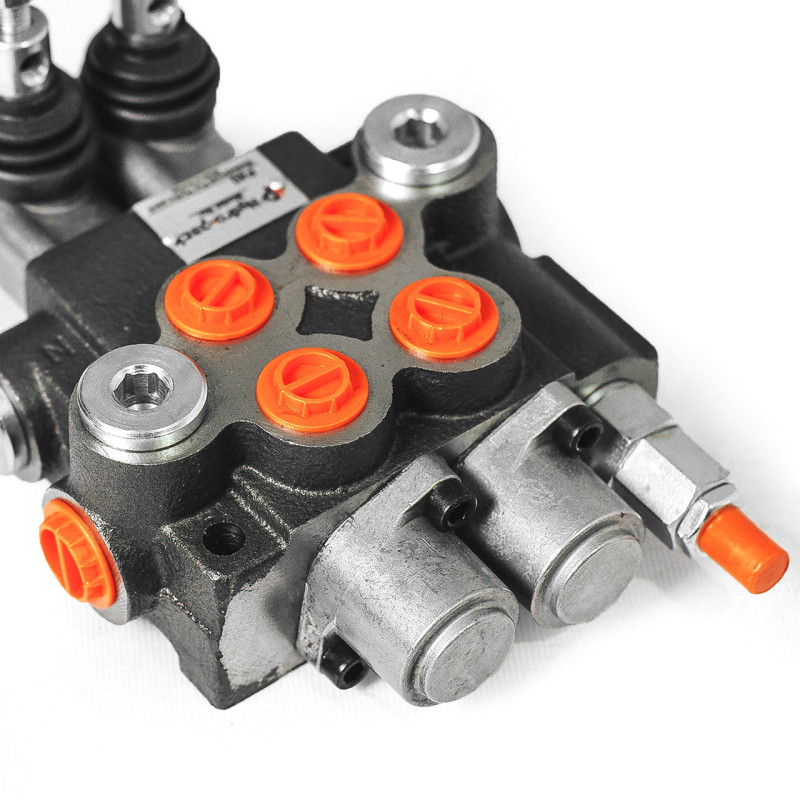

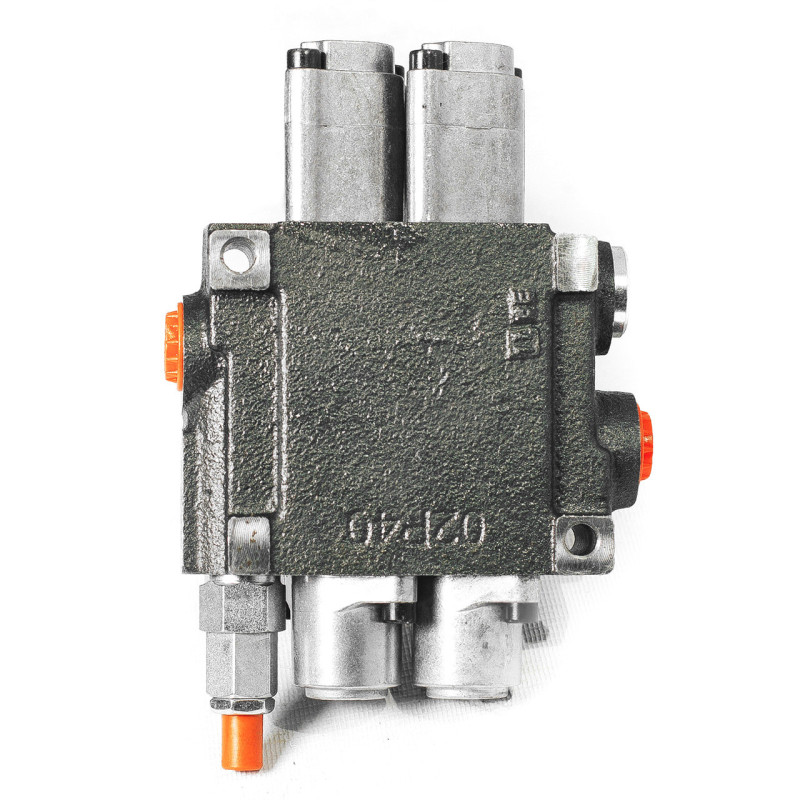

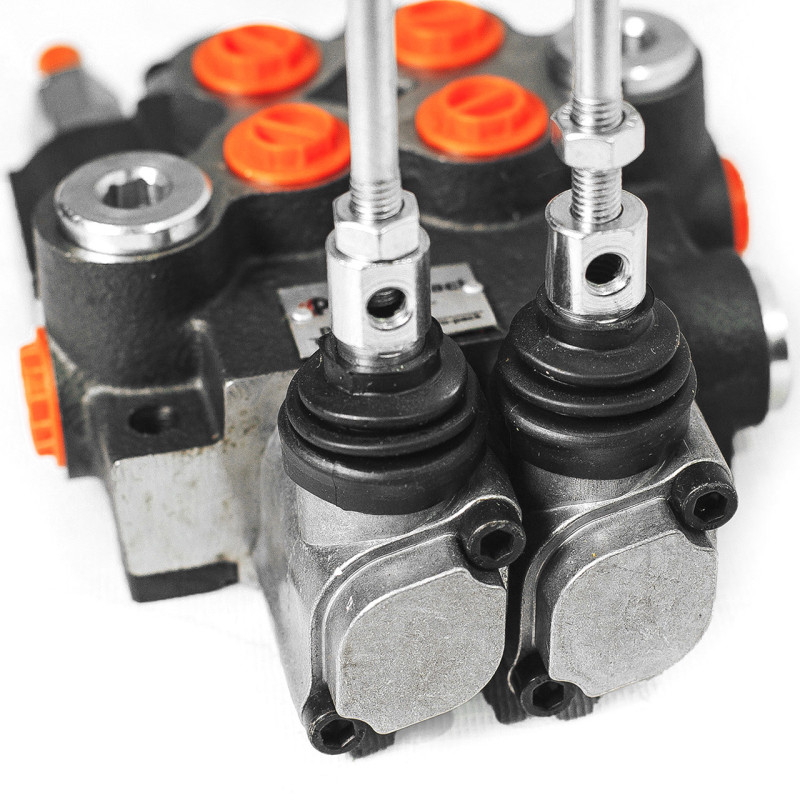

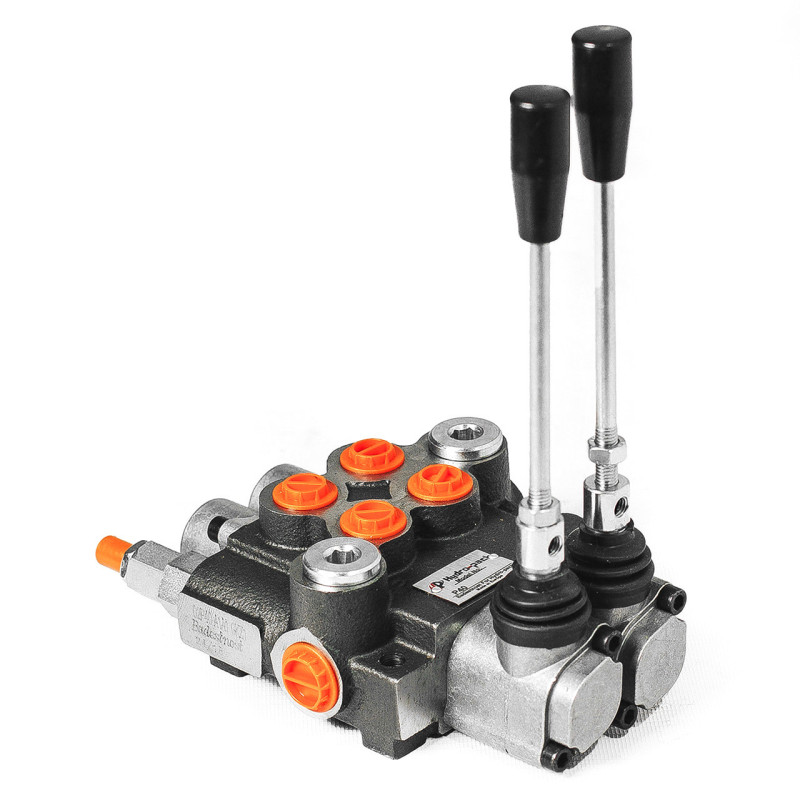

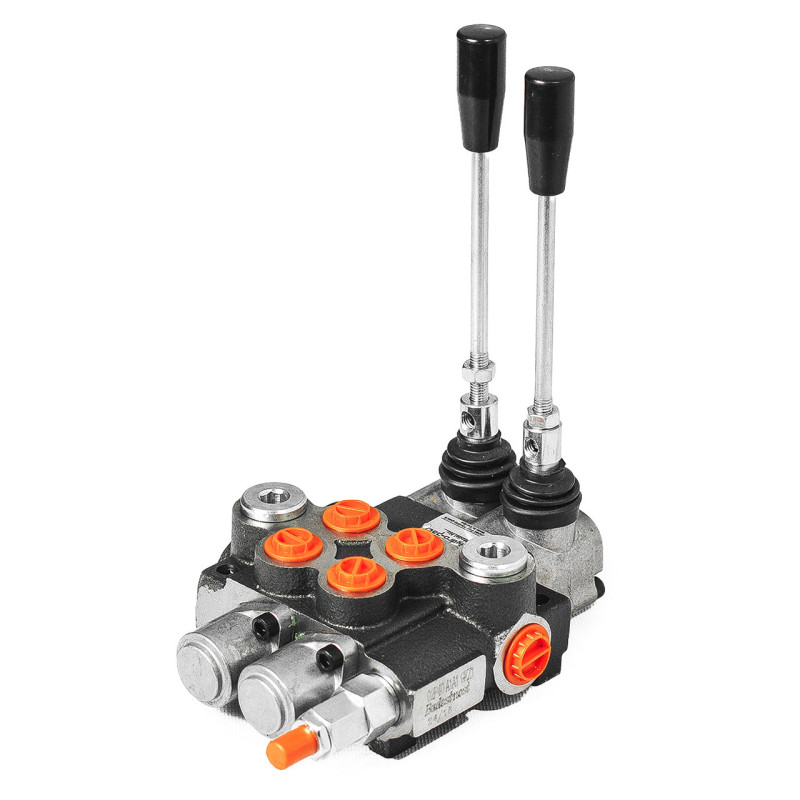

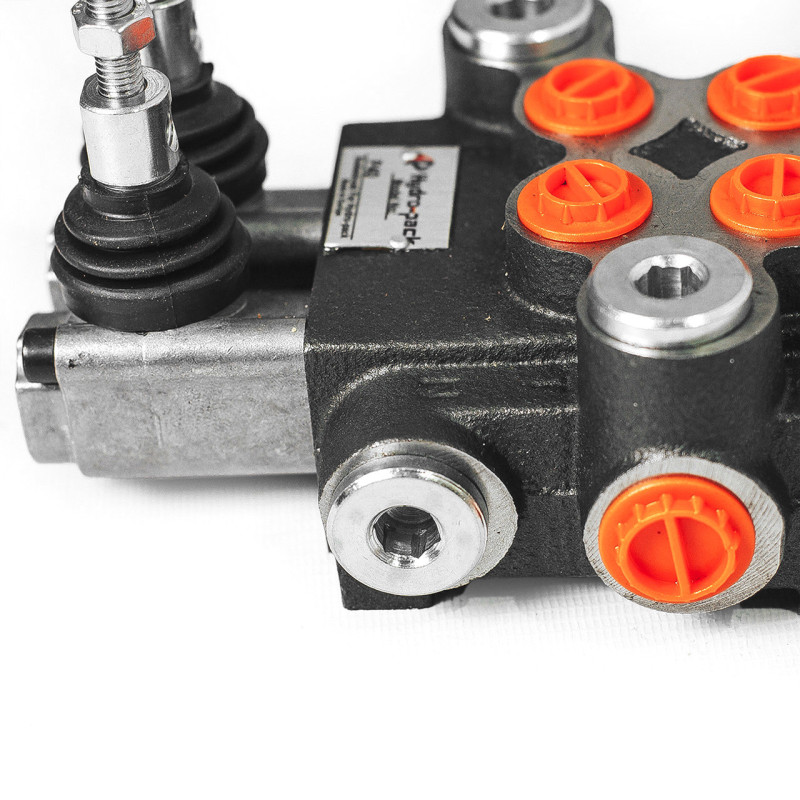

Badestnost 2P40 is a monoblock hydraulic distributor with manual control, developed in Bulgaria for reliable starting, stopping, and precise regulation of working fluid flow between a hydraulic pump and consumers (hydraulic cylinders, hydraulic motors). The distributor is equipped with manual spools with three positions, switched by a lever, ensuring ease of operation and intuitive control. The body is made of EN-GJL300 cast iron, and the plungers are made of carburized steel with hard chrome plating for increased wear resistance. Mounting is done with two M8 bolts.

Description and Application Area

The 2P40 monoblock hydraulic distributor is widely used in mobile hydraulics, particularly in construction and agricultural machinery, tractors, motorcycles, and ATVs, as well as in stationary installations where compact and reliable control of flow direction and intensity is required. The ability to fix the spool position ensures operator convenience and increased operational safety. The simplicity of manual control makes maintenance quick and economical.

Key Parameters

• Number of working sections: 2
• Flow capacity: 40 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Working fluid viscosity: 12...800 mm²/s
• Fluid temperature: -15°C...+80°C
• Filtration level: 10 according to NAS 1638
• Max. operating pressure: P = 315 bar; at T = 50°C: A, B = 300 bar
• Leakage (A,B-T): 5 cm³/min at 100 bar, 46 cSt
• Spool stroke: 6 mm
• Actuation force: < 200 N
• Body material: EN-GJL300 cast iron
• Plungers: carburized steel with hard chrome plating
• Mounting: two M8 bolts
• Control: manual spools, three positions

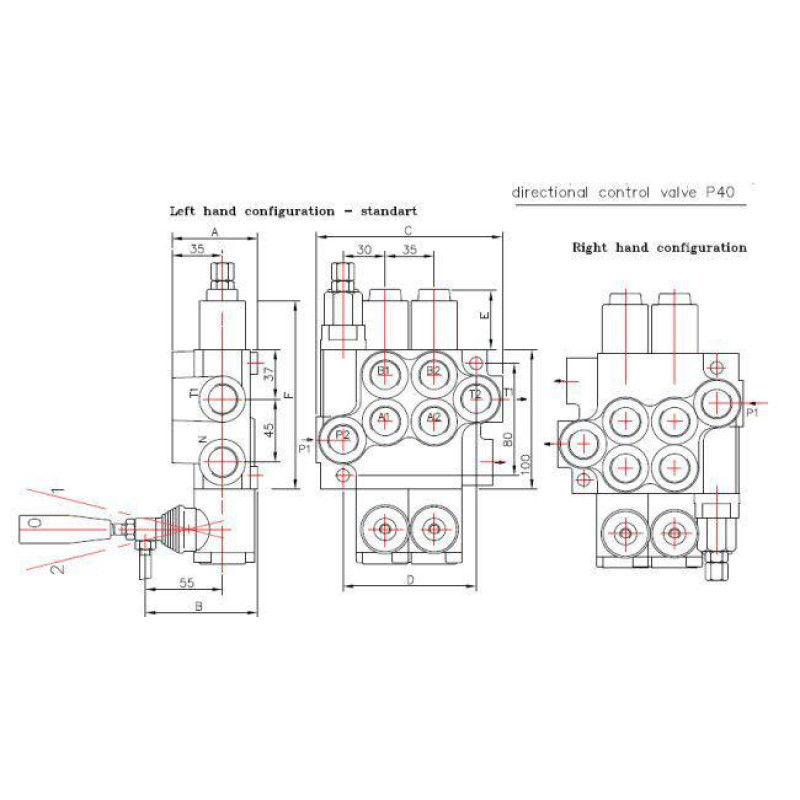

• Detailed information: PDF, PDF2

Model: Monoblock Hydraulic Distributor 2P40, Manufacturer: Badestnost, Country of origin: Bulgaria. The distributor is designed for operation in a wide range of temperatures and viscosities, making it a versatile solution for various hydraulic systems. The construction from durable materials and precise machining of moving elements guarantee a long service life and stable operation even in aggressive operating conditions.

Advantages of the Badestnost 2P40 model: compact monoblock design, ease of installation and maintenance, reliability in mobile machinery and stationary installations, ability to precisely control flow up to 40 l/min and operate at pressures up to 315 bar. If you need an easy-to-operate and durable distributor for various hydraulic systems, the 2P40 will be an effective choice.
