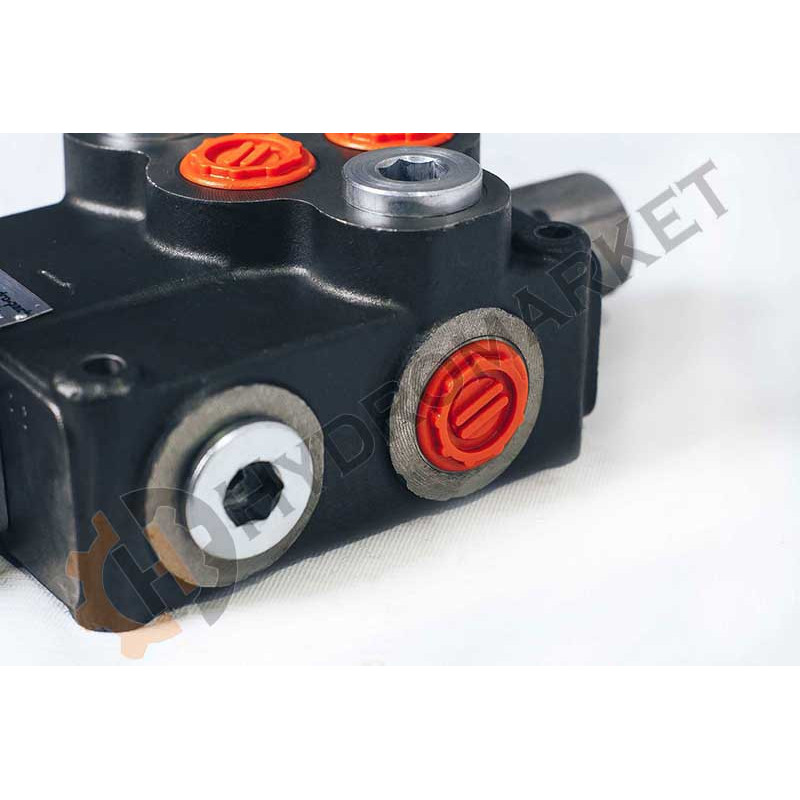

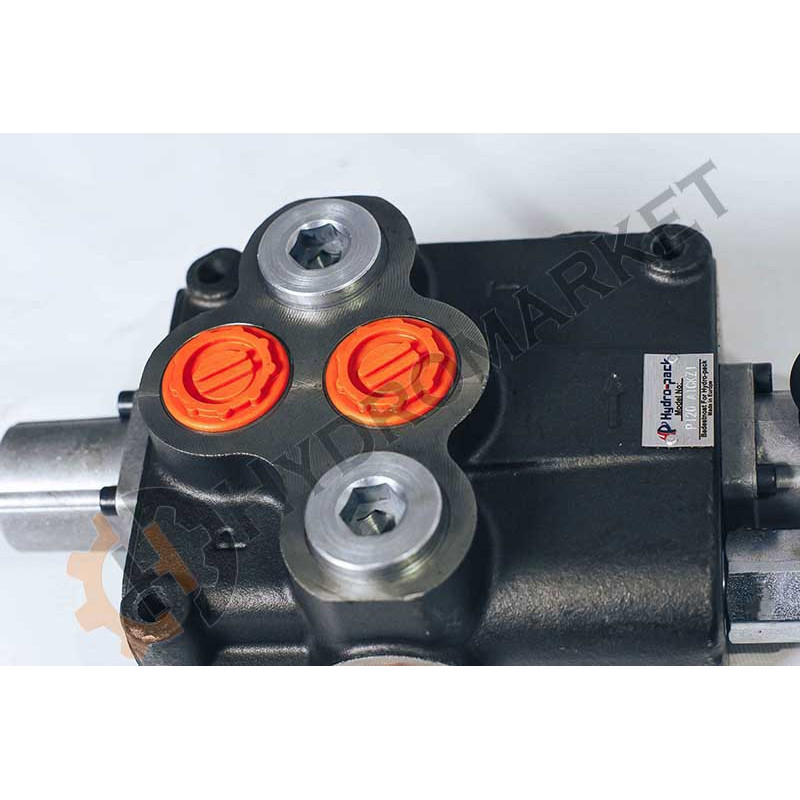

Monoblock Hydraulic Control Valve 1P120 Badestnost (Bulgaria)

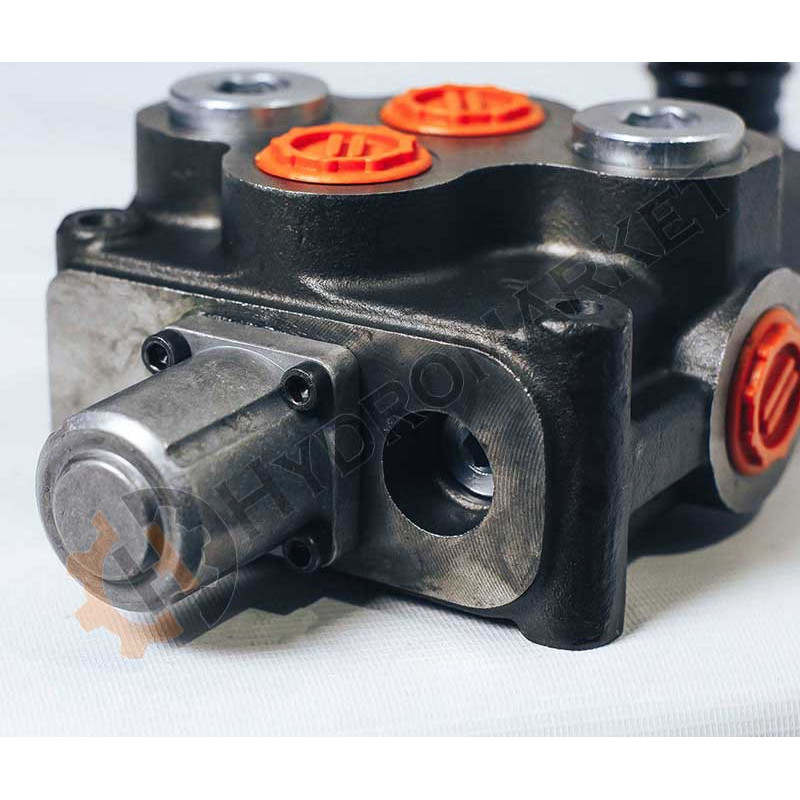

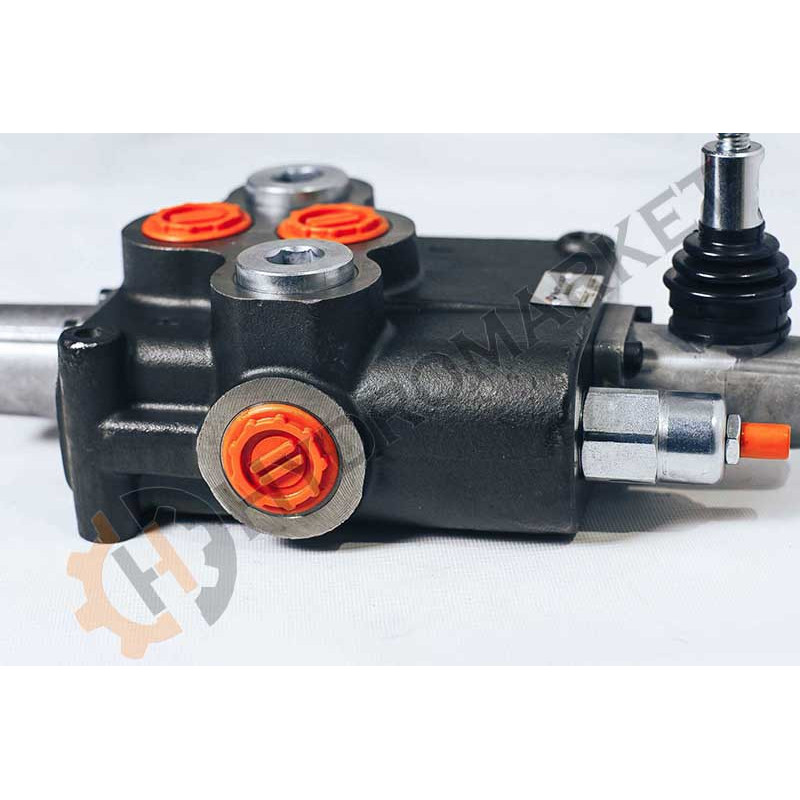

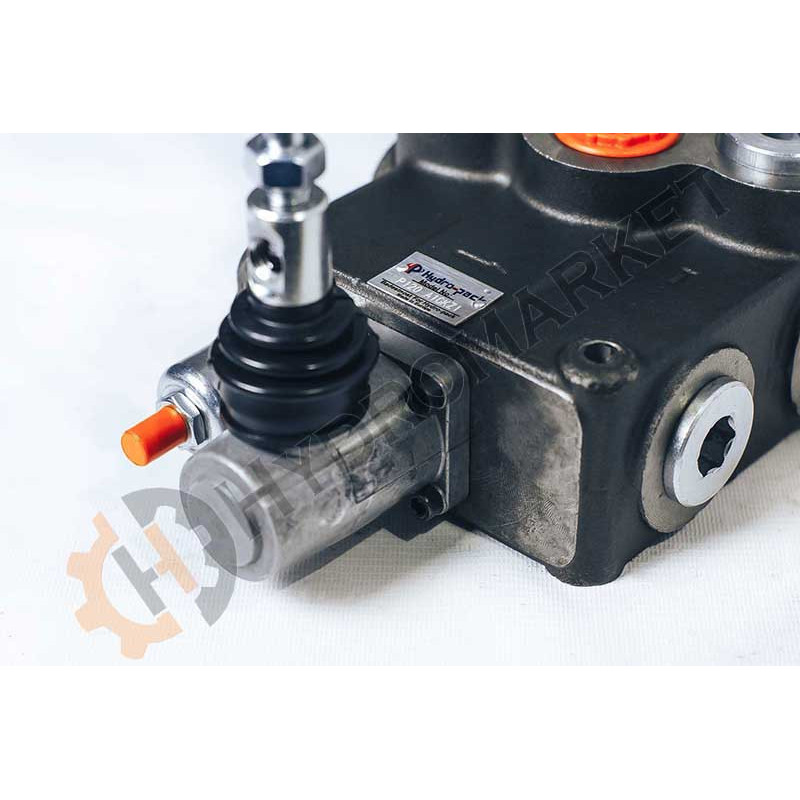

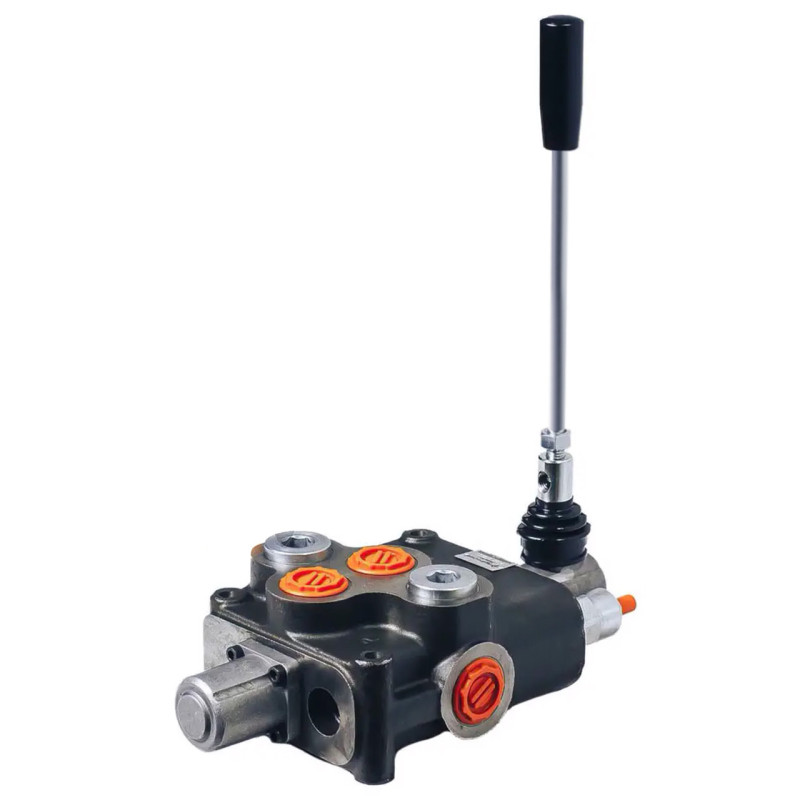

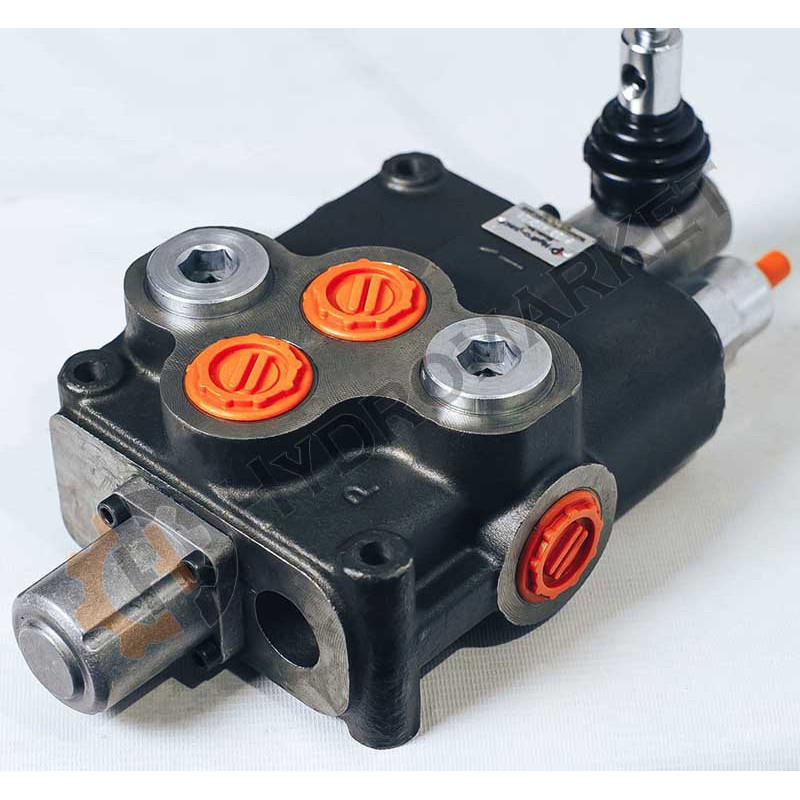

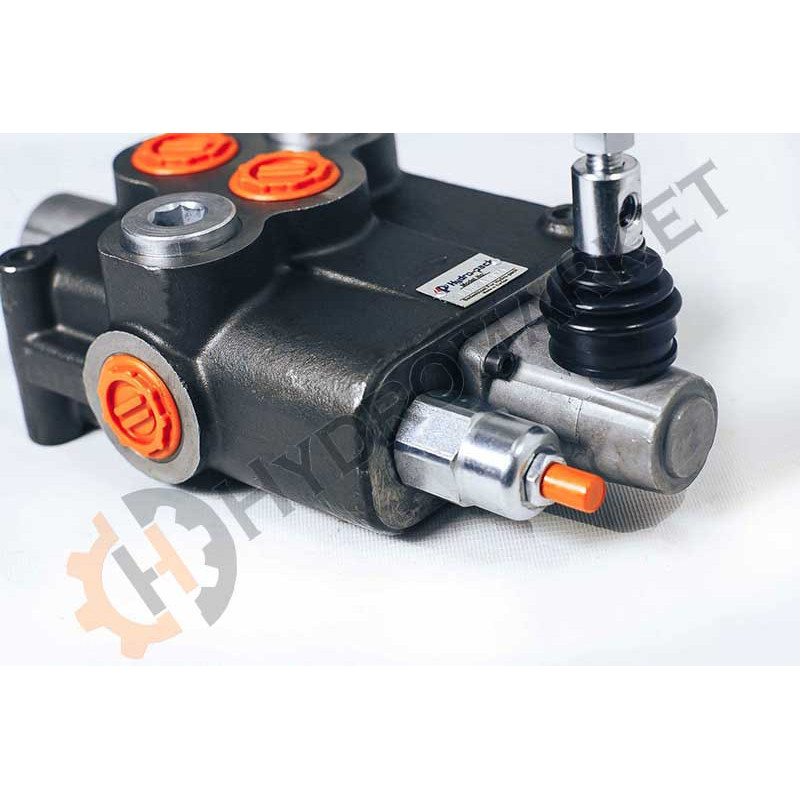

Badestnost (Bulgaria) presents the 1P120 monoblock hydraulic control valve — a 1-section manual valve with a flow capacity of 120 l/min, designed to start, stop, and precisely control the flow of working fluid between pressure sources (hydraulic pumps) and consumers (hydraulic cylinders, hydraulic motors). The valve is equipped with manual spools with three operating positions and a convenient handle for reliable switching and position locking.

Materials and Construction

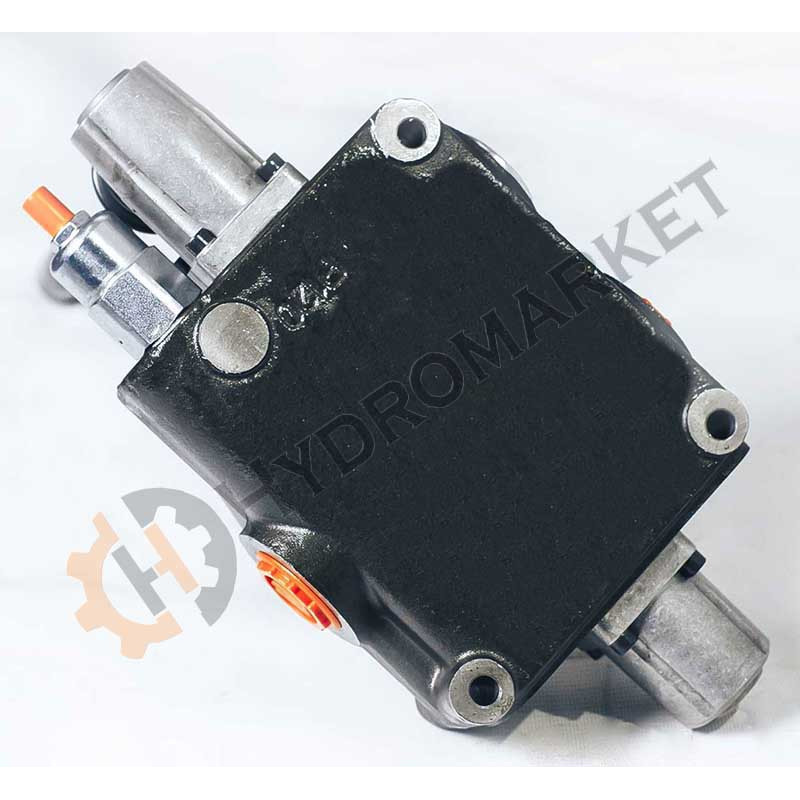

The body is made of EN-GJL300 cast iron, ensuring high mechanical performance and resistance to external loads. The plungers are made of carburized steel with hard chrome plating for increased wear resistance during intensive operation. Mounting is done with three M10 bolts, guaranteeing reliable fixation in units and vibration resistance in mobile installations.

Area of Application

Monoblock hydraulic control valves of the 1P120 series are widely used in mobile hydraulics: in construction, agricultural, and other special machinery where simple and reliable mechanical control of flow direction and intensity is required. The model allows the operator to lock positions for ease of operation or to ensure safety and effectively control hydraulic drive consumers in various modes.

Key Parameters

• Number of working sections: 1
• Flow capacity: 120 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm²/s
• Fluid temperature: -15°C...+80°C
• Filtration: 10 per NAS 1638
• Max. operating pressure: P = 250 bar; at T = 50: A, B = 300 bar
• Leakage (A,B-T): 8 cm³/min at 100 bar, 46 cSt
• Spool stroke: 10 mm, L12 +/-10/6
• Actuation force: < 300 N
• Mounting: 3 M10 bolts
• Materials: body EN-GJL300; plungers — carburized steel with hard chrome plating
• Detailed information: PDF, PDF2

The 1P120 hydraulic control valve is designed for reliable operation in aggressive conditions: a wide temperature range, high limiting viscosity of the working fluid, and high operating pressures make the model a universal choice for systems requiring high performance with compact dimensions and simple manual control. The design ensures body strength and minimizes wear of working elements under cyclic loads.

Special attention is paid to mounting and maintenance: fixation with three M10 bolts ensures resistance to vibrations and mechanical loads in mobile installations. Ease of maintenance and availability of technical documentation in PDF files allow for quick integration of the valve into existing hydraulic systems or use as a replacement when repairing equipment.

Brand: Badestnost. Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Control Valves.

The 1P120 hydraulic control valve from Badestnost is a combination of ease of operation, robust construction, and technical characteristics that meet the requirements of modern mobile hydraulics. If you are looking for a reliable manual monoblock for controlling a hydraulic system on construction or agricultural machinery, this model is worth considering.
