Hydraulic Distributor 4P80 — All Sections Floating, Badestnost (Bulgaria)

The Badestnost 4P80 monoblock hydraulic distributor is a reliable hydraulic system component designed to control the direction and flow rate of working fluid in mobile and stationary equipment. Manufacturer: Badestnost (Bulgaria). Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors. This distributor is used to start, stop, and regulate the flow between hydraulic pumps and consumers — hydraulic cylinders and hydraulic motors, making it an optimal choice for agricultural and municipal machinery.

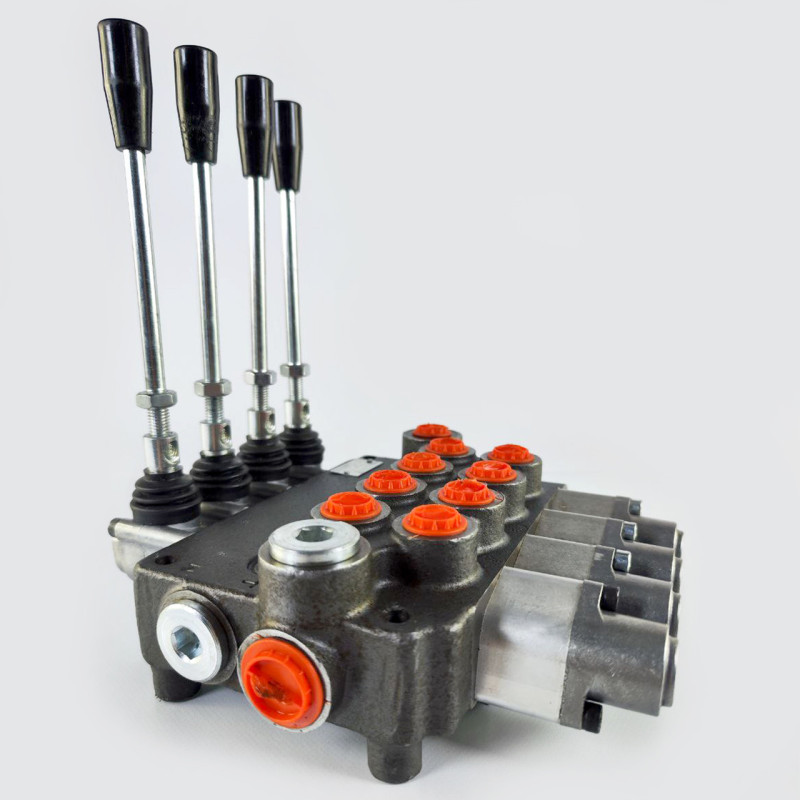

Design Features: The monoblock body is made of EN-GJL300 cast iron; plungers are made of case-hardened steel with hard chrome plating for increased wear resistance. Control is manual: spools are switched by a handle in three positions with the possibility of fixation. Mounting is done with three M8 bolts. The presence of a floating mode allows adapting the operation of units to the terrain or working tools (e.g., harrows), ensuring free movement in the corresponding direction.

Technical Parameters of Badestnost 4P80 with Floating Mode:

• SKU: 4P80-A1A1A1L12-GKZ1
• Number of working sections: 4
• Flow capacity: 80 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm²/s
• Fluid temperature: -15°C...+80°C
• Filtration: 10 per NAS 1638
• Maximum operating pressure: P = 315 bar; T = 50 bar; A, B = 300 bar
• Leakage (A,B-T): 6 cm³/min at 100 bar, 46 cSt
• Spool travel: 7 mm
• Actuation force: < 220 N
• Mounting: three M8 bolts
• Materials: body — EN-GJL300 cast iron; plungers — case-hardened steel with hard chrome plating
• Control: manual, three positions with floating mode and possibility of fixation
• Detailed information: PDF, PDF2

Thanks to its design features and passport characteristics, the 4P80 hydraulic distributor ensures precise flow direction control, stable operation at high pressures, and a long service life when maintenance regulations and proper working fluid filtration are observed. The model is especially useful for mobile hydraulics in construction and agricultural machinery, where reliable position fixation and the ability to operate in floating mode are required.

If you need a reliable monoblock hydraulic distributor with floating mode and high flow capacity up to 80 l/min — the Badestnost 4P80 meets the requirements of mobile hydraulics and ensures long-term operation with proper maintenance.
