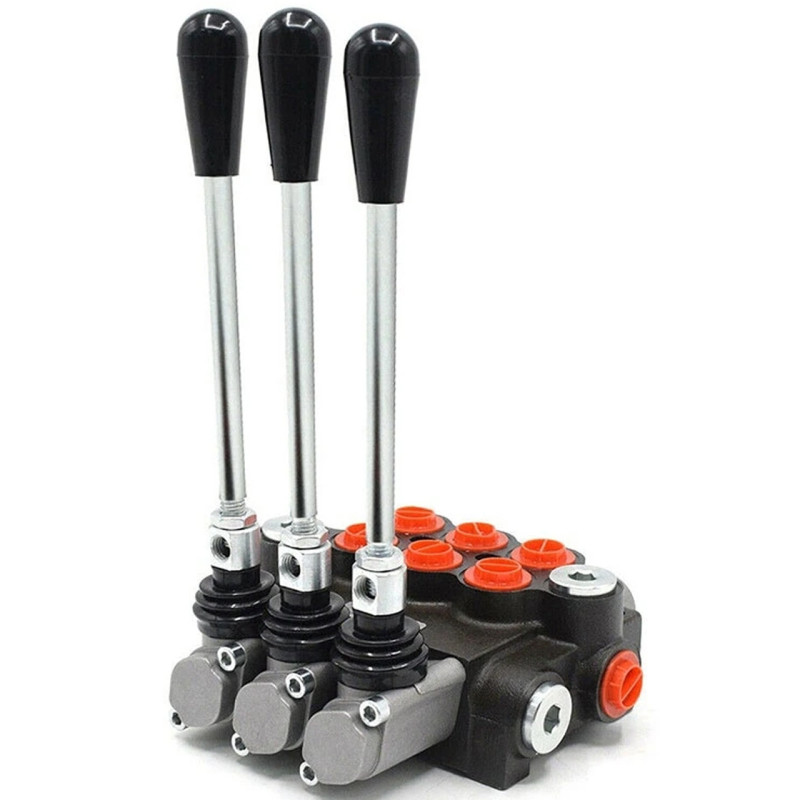

Hydraulic Distributor 3P80 with 1 Floating Section Badestnost (Bulgaria)

The Badestnost 3P80 monoblock hydraulic distributor is designed to start, stop, and regulate the flow of working fluid between a pressurized flow source (hydraulic pump) and consumers (hydraulic cylinders, hydraulic motors). This model is manufactured by the Badestnost brand (Bulgaria) in a monoblock design with manual 3-position spool control, which includes a floating mode for specific work tasks, ensuring flexibility in the operation of mobile machinery.

The distributor's design features a durable EN-GJL300 cast iron body and plungers made of carburized steel with hard chrome plating for increased wear resistance. Mounting is done with three M8 bolts. Manual spool control allows the operator to fix positions, precisely control the direction and intensity of the flow, and quickly switch between operating modes.

Key Parameters:

• Model: 3P80
• Manufacturer: Badestnost (Bulgaria)
• Number of Working Sections: 3
• Floating Section: 1
• Flow Rate: 80 l/min
• Control Type: Manual, 3-position spool
• Body Material: EN-GJL300 cast iron
• Plunger Material: Carburized steel with hard chrome plating
• Mounting: Three M8 bolts
• Ambient Temperature: -40°C...+60°C
• Fluid Temperature: -15°C...+80°C
• Hydraulic Fluid: Mineral oil / hydraulic oil
• Working Fluid Viscosity: 12...800 mm²/s
• Filtration: 10 per NAS 1638
• Max Operating Pressure: P = 315 bar; T = 50 bar; A, B = 300 bar
• Leakage (A,B-T): 6 cm³/min at 100 bar, 46 cSt
• Spool Travel: 7 mm
• Actuation Force: < 220 N
• Detailed Technical Information and Specifications: PDF, PDF2

The 3P80 series is particularly relevant for mobile hydraulics — construction, agricultural, and municipal machinery: harrows, trailed and mounted equipment, where a floating mode is required to adapt to terrain or technological processes. The model demonstrates high reliability under increased loads and abrasive environments due to high-quality materials and hard chrome plating of the plungers.

The use of the 3P80 hydraulic distributor allows for quick switching between modes, load release on working elements, and precise flow control in multi-section hydraulic systems. Simple manual control and robust design make this model an optimal choice for repair, modernization, or equipping new machinery.

Product Type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors. Manufacturer: Badestnost.

Technical Dimensions (approximate):

If you need a reliable monoblock hydraulic distributor with a floating section and high flow capacity for use on agricultural, construction, or municipal machinery — the Badestnost 3P80 offers ease of control, body durability, and stable spool operation across a wide range of operating conditions.
