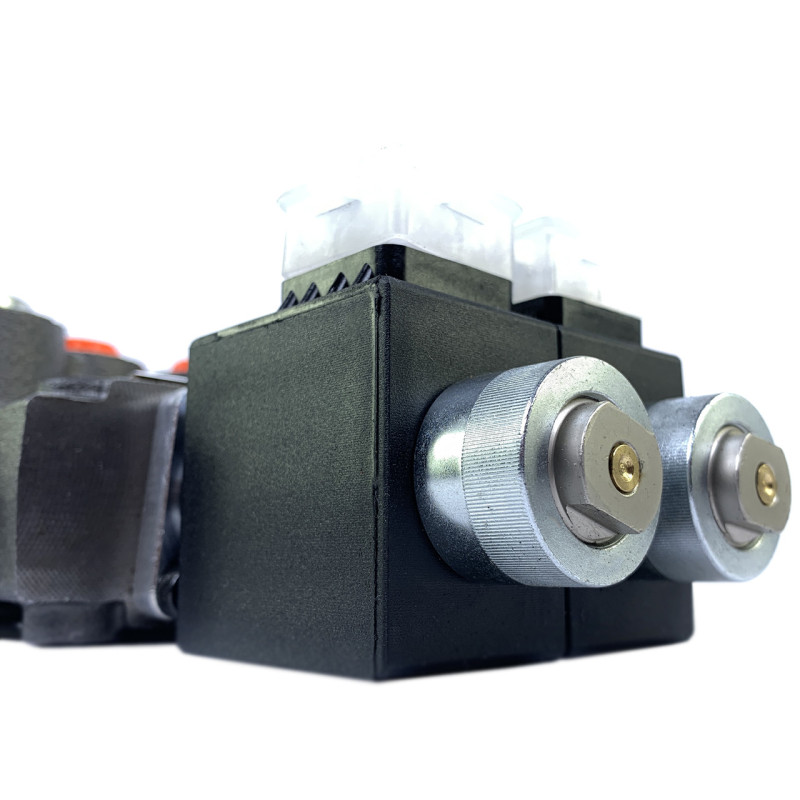

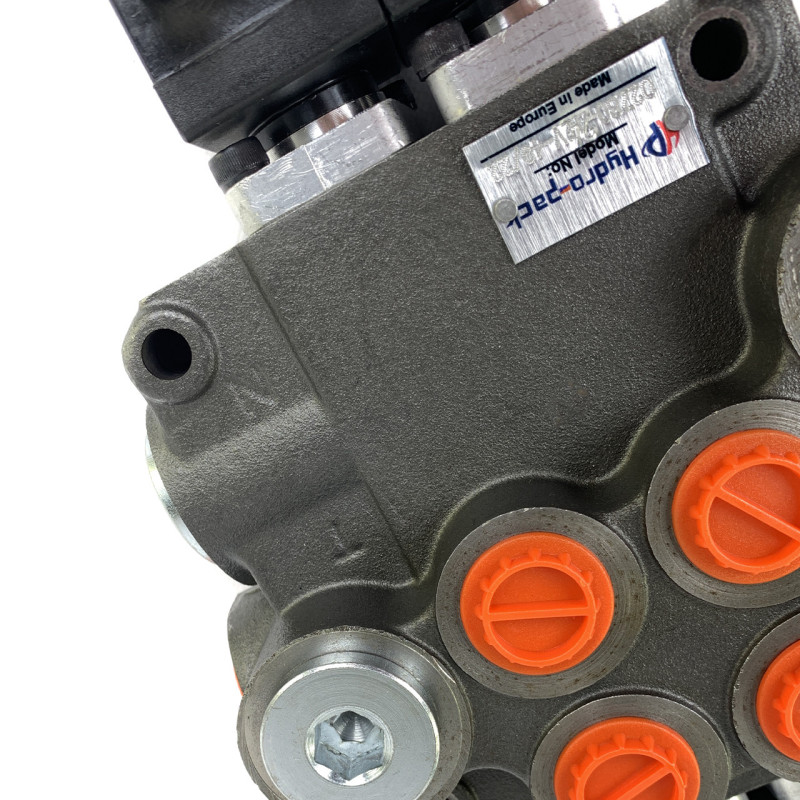

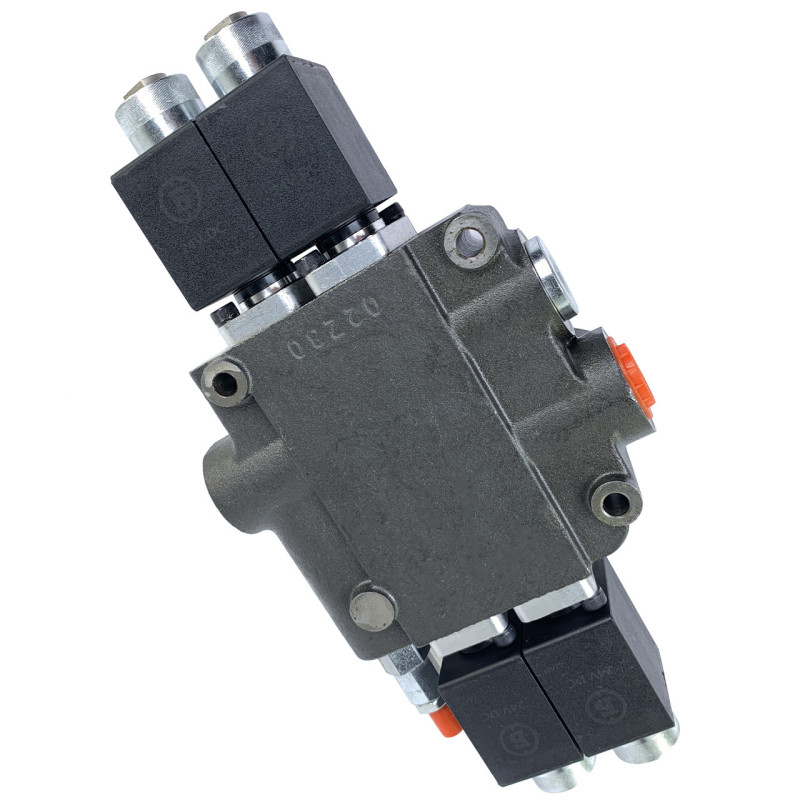

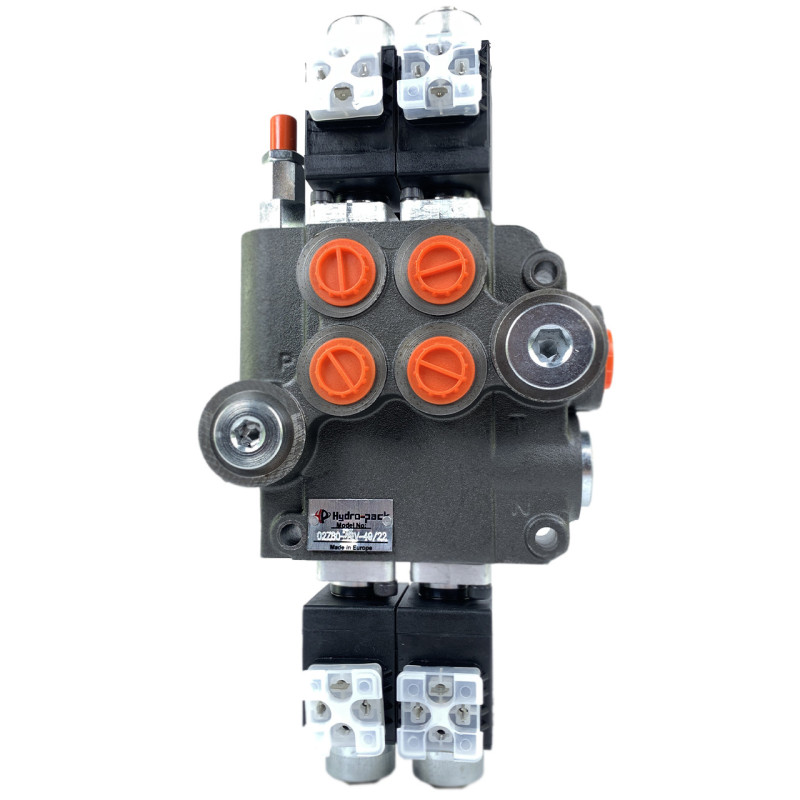

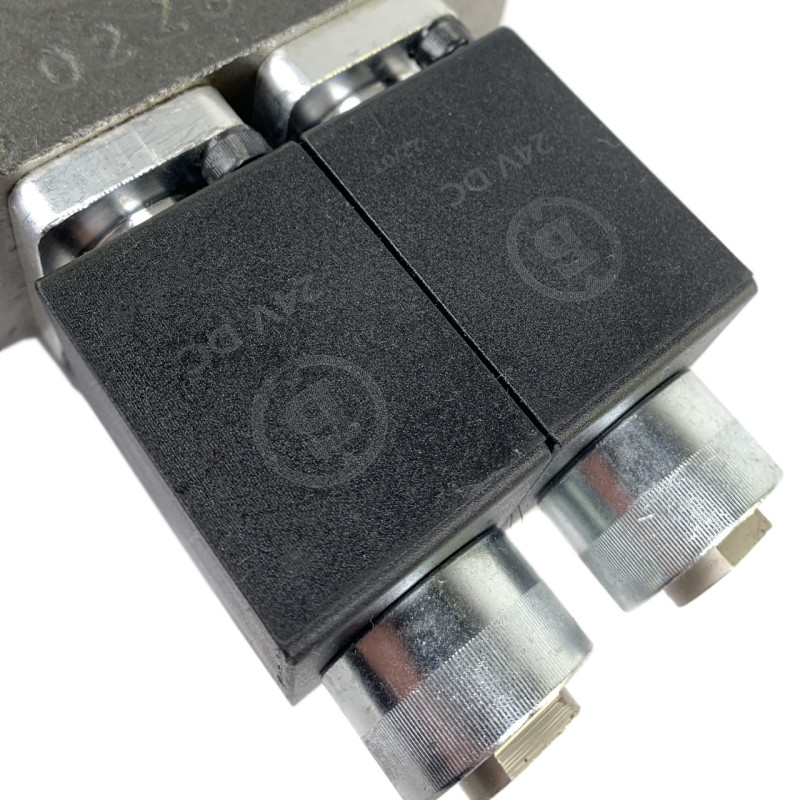

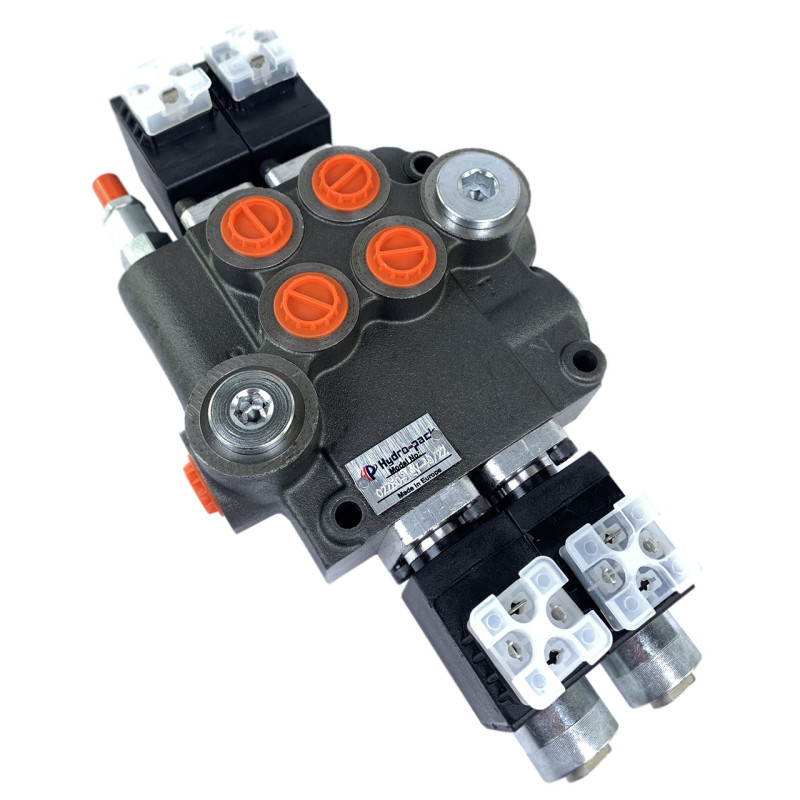

2Z80 24V Solenoid-Operated Hydraulic Control Valve by Badestnost

Introducing the 2Z80 monoblock solenoid-operated hydraulic control valve from Badestnost — an optimal solution for designing new and modernizing existing hydraulic systems. This two-section valve provides a flow rate of up to 80 l/min, operates on 24V, and features a three-position spool with dual-sided control, enabling complex operating schemes with return to neutral.

Description and Advantages

The monoblock design with precisely ground spools and honed bores guarantees minimal internal leakage and reduced energy losses. The use of interchangeable spools significantly simplifies maintenance without the need for complex on-site repairs. Installation is performed with standard M8 bolts or a complete stud kit, making setup quick and convenient for most engineering solutions. The design is resistant to changes in working fluid viscosity and maintains stable operating characteristics across a wide temperature range.

Technical Specifications

• Product Code: 2Z80-AA-ES3-24VDC-G
• Number of Spools: 2
• Spool Type: Open center "A" type with return spring
• Control: Double-acting P-B with return to neutral
• Voltage: 24V
• Flow Rate: 80 l/min
• Max Pressure: P: 250 bar; T: 50 bar; A-B: 300 bar
• Leakage: max. 40 cm³/min at 120 bar (from A, B to T)
• Working Fluid Temperature Range: -10 °C to +80 °C
• Working Fluid: Mineral-based hydraulic oil
• Viscosity: 10 to 100 cSt
• Filtration: 10 according to NAS 1638 standard
• Ports: P, A, B - G 1/2; T - G 3/4
• Detailed Information: PDF

The 2Z80 hydraulic control valve is designed for applications requiring reliable high-pressure operation and precise flow control: industrial equipment, agricultural machinery, mobile hydraulic systems. Minimal internal leakage and the ability to quickly replace spools reduce operating costs and downtime. Compatibility with standard mounting holes and fasteners allows for easy integration into existing systems.

This product belongs to the category: Hydraulic Systems > Hydraulic Control Valves. Manufacturer: Badestnost. Recommended for applications prioritizing reliability and durability.
