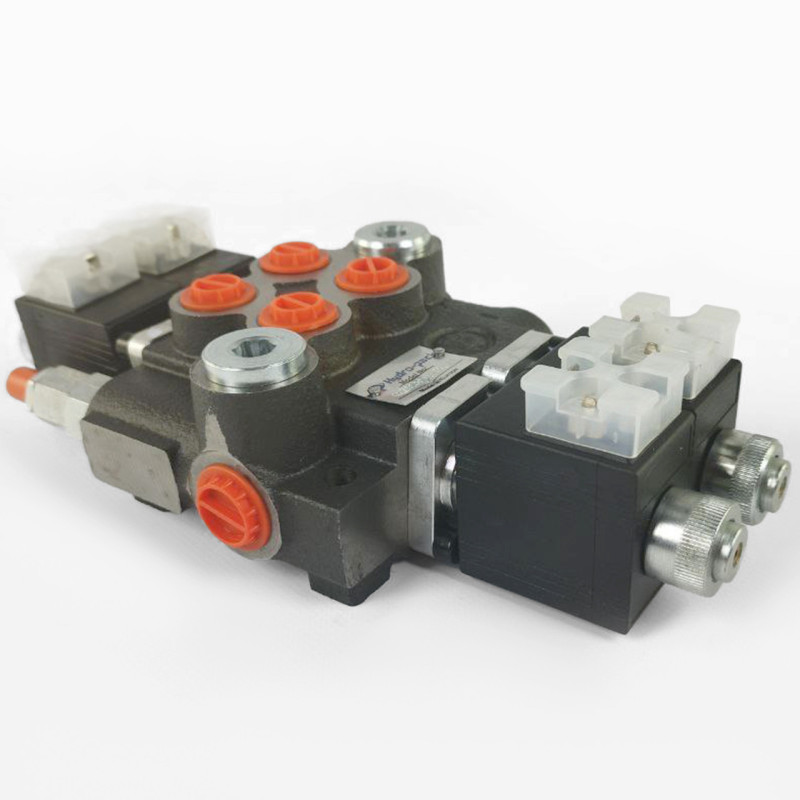

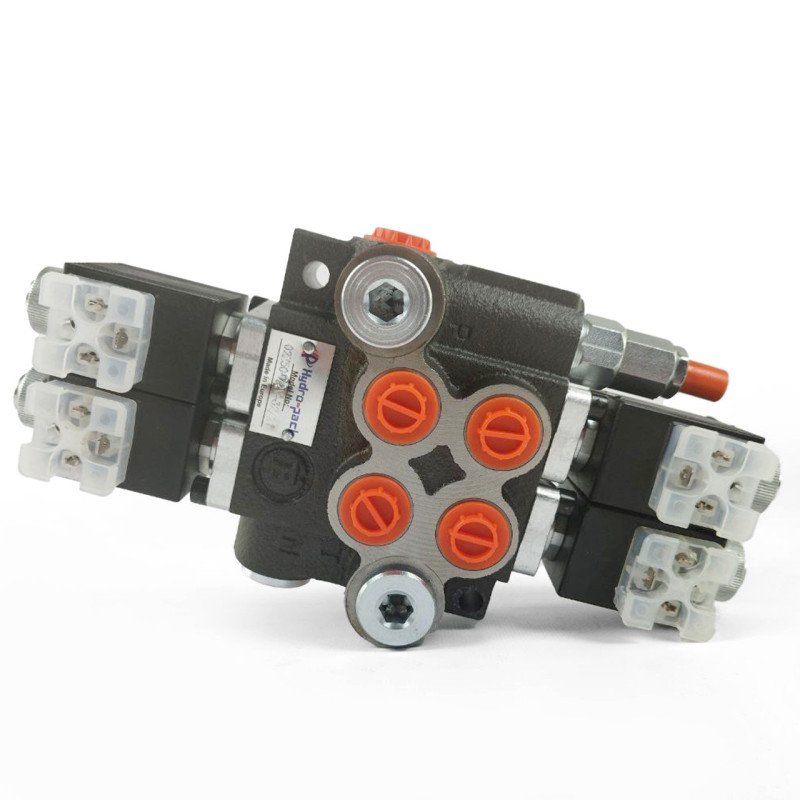

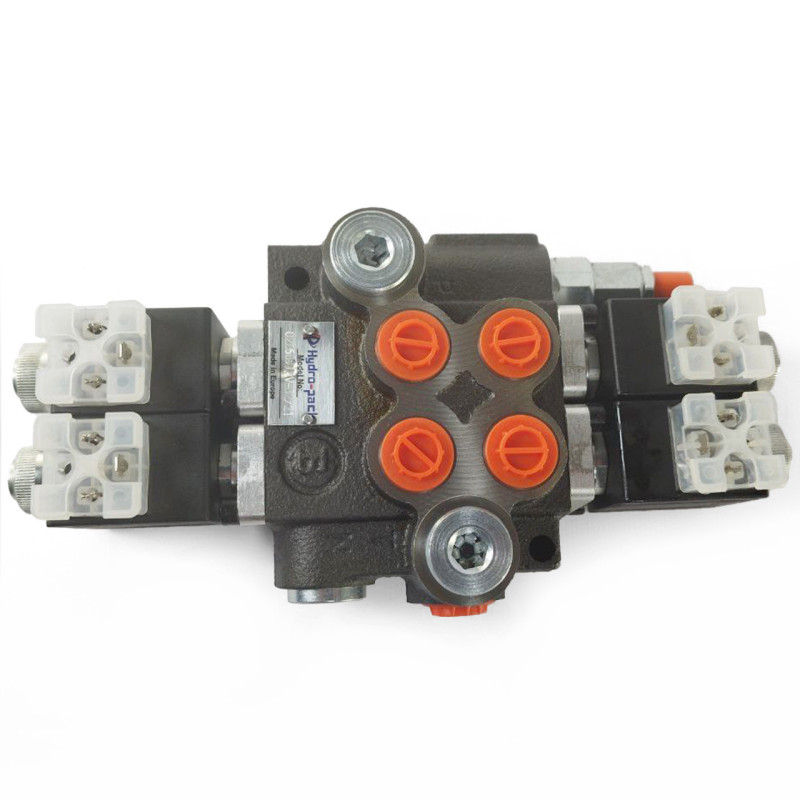

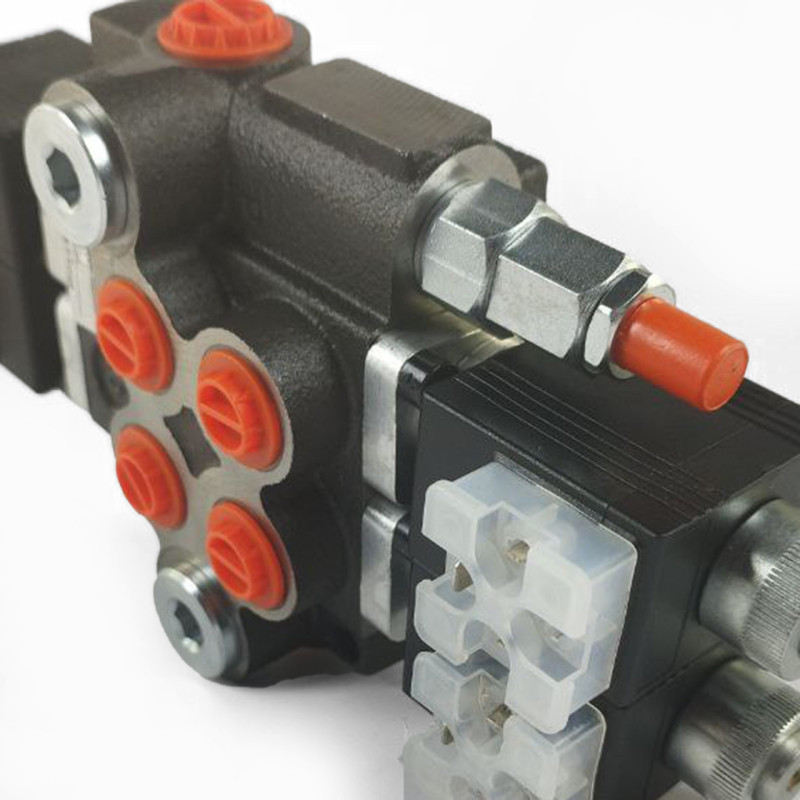

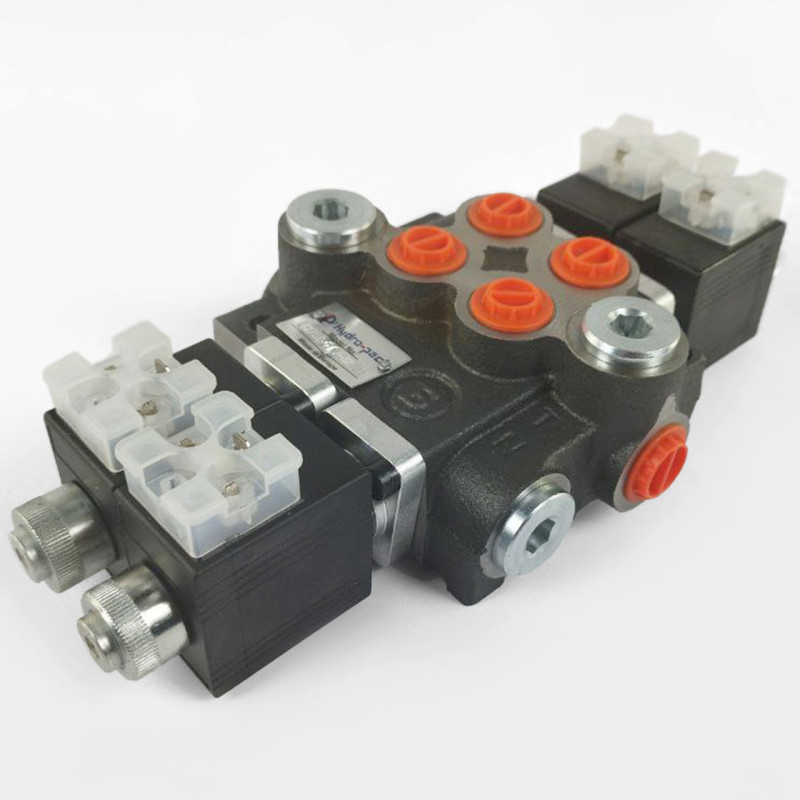

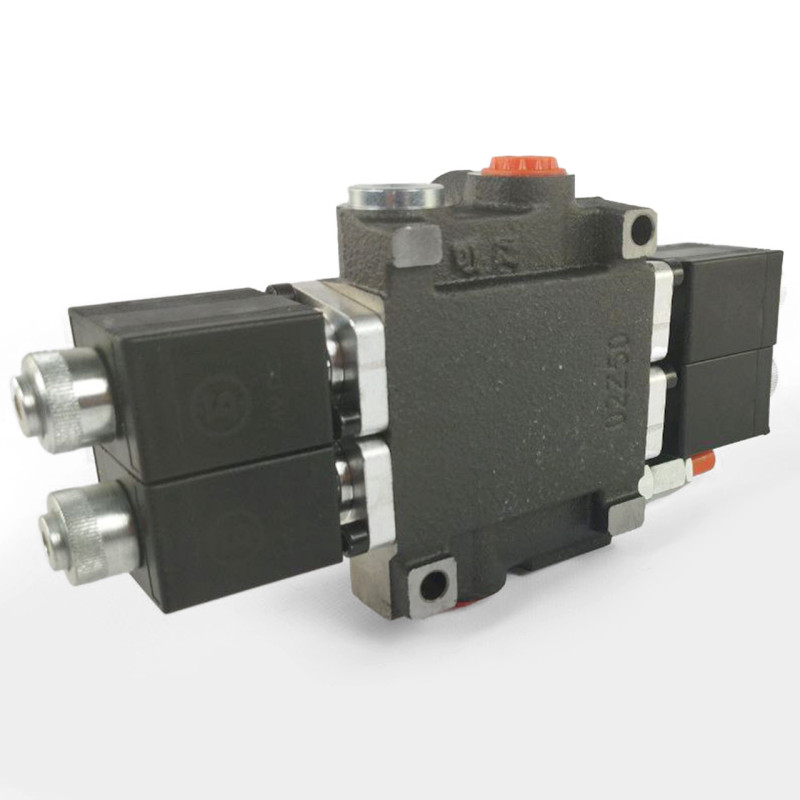

Badestnost 2Z50 12V Solenoid-Operated Hydraulic Control Valve

We offer the Badestnost 2Z50 monoblock solenoid-operated hydraulic control valve — a two-section valve with 12V power supply and a flow rate of 50 l/min. This unit is designed for integration into new hydraulic circuits and for upgrading existing systems, combining a robust monoblock design, precise bore honing, and spool grinding, which reduces leaks and minimizes energy losses during operation.

Description and Advantages

The monoblock body ensures compactness and convenient mounting with M8 bolts or a stud kit. The spools are interchangeable, which significantly simplifies field maintenance. The design allows for double-acting operation in three spool positions with reliable spring-return to the neutral position, ensuring stable hydraulic system operation under varying loads. Thanks to precise machining of working surfaces, component lifespan is increased, and leaks remain minimal.

Technical Specifications

• Product Code: 02Z50-AA-ES3-12VDC-G
• Number of Spools: 2
• Spool Type: Open center "A" type with return spring
• Control: Double-acting P-B with return to neutral position
• Voltage: 12 V
• Flow Rate: 50 l/min
• Max Pressure: P: 315 bar; T: 50 bar; A-B: 300 bar
• Leakage: max. 18 cm³/min at 100 bar (from A, B to T)
• Operating Fluid Temperature Range: -10 °C to +80 °C
• Operating Fluid: Mineral-based hydraulic oil
• Viscosity: 10 to 100 cSt
• Filtration: 10 according to NAS 1638 standard
• Ports: P, T - G 1/2; A, B - G 3/8
• Installation: Standard for monoblock valves, M8 bolt or stud mounting
• Manufacturer: Badestnost
• Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Control Valves
• Detailed Documentation: PDF, PDF2

The Badestnost 2Z50 12V hydraulic control valve combines reliability, precision, and ease of service. It is designed for use in agricultural, construction, and industrial machinery where stable operation is required at high operating pressures and across a wide range of operating fluid viscosities. The modular design and interchangeable elements significantly simplify spool replacement and valve integration into existing hydraulic systems.

For integration needs or technical consultations, we recommend reviewing the provided PDF files or contacting a Badestnost brand representative to clarify parameters for specific applications.
