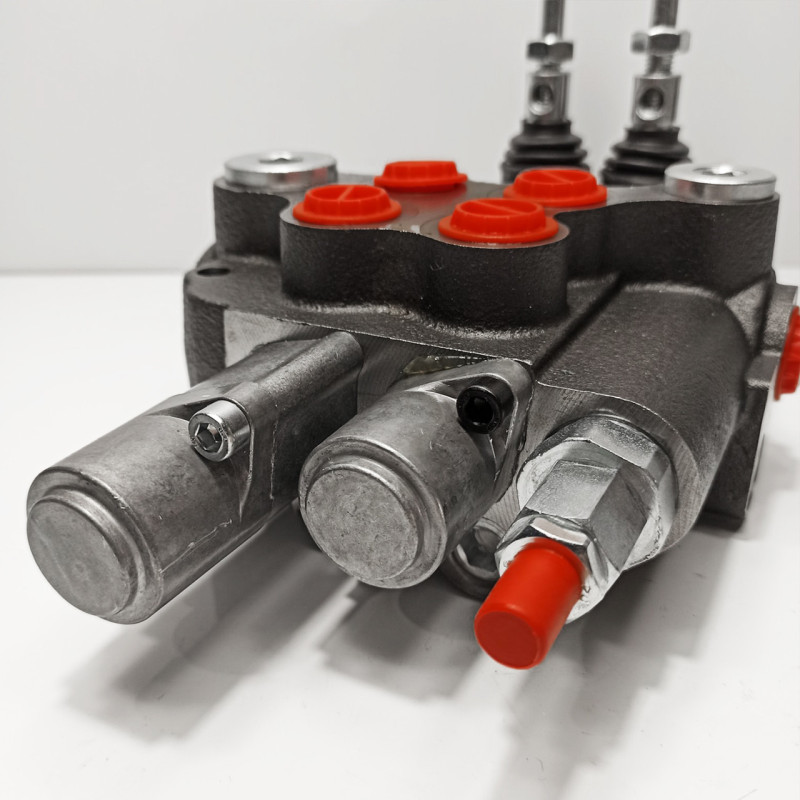

2P80 Hydraulic Distributor with Floating Section and Detent by Badestnost (Bulgaria)

Product Description: The Badestnost 2P80 monoblock hydraulic distributor is designed for manual control of working fluid flows between the pump and actuators (hydraulic cylinders, hydraulic motors) in mobile and stationary machinery. The model features 2 working sections, one of which is a floating section, allowing for a "floating" mode of operation for the working implement without stressing the hydraulic system. The distributor's flow capacity is up to 80 l/min, and spool switching is performed in three positions using an ergonomic lever with a detent function.

Materials and Design Features: The hydraulic distributor body is made of EN-GJL300 cast iron, and the spools are made of carburized steel with hard chrome plating for increased wear resistance. The model is mounted using three M8 bolts. The actuation force is less than 220 N, the spool stroke is +/- 7 mm, and leakage in channels A, B - T is 6 cm³/min at 100 bar and 46 cSt.

Area of Application

The 2P80 hydraulic distributor is widely used in mobile hydraulics: for tractors, motorcycles and ATVs, boats, construction, agricultural, and municipal machinery. The presence of a floating section makes this model particularly useful for units requiring temporary disconnection or a following mode (e.g., for harrows). The detent mode allows for fixing any lever position for operator convenience and safety during long work cycles.

Key Parameters

• Number of working sections: 2 (one with a floating section)
• Flow capacity: 80 l/min
• Maximum operating pressure: P = 315 bar; at T = 50°C: A, B = 300 bar
• Ambient temperature: -40°C...+60°C
• Fluid temperature: -15°C...+80°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Working fluid viscosity: 12...800 mm²/s
• Filtration: 10 according to NAS 1638
• Leakage (A, B - T): 6 cm³/min at 100 bar, 46 cSt
• Spool stroke: +/- 7 mm
• Actuation force: < 220 N
• Materials: body — EN-GJL300 cast iron; spools — carburized steel with hard chrome plating
• Mounting: three M8 bolts
• Control: manual spools, three-position switching, detent function for positions (including floating)
• Detailed documentation: PDF, PDF2

Technical Dimensions:

Advantages: Reliable design and the use of wear-resistant materials ensure long-term operation in harsh conditions and a wide temperature range. Low leakage and high permissible pressures make the distributor suitable for various types of agricultural, construction, and municipal machinery. The floating section allows operations without overstressing the hydraulic system, and the detent function enhances operator precision and convenience.

Manufacturer: Badestnost, Bulgaria.

Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors.

This 2P80 monoblock hydraulic distributor is a practical solution for modernizing or repairing hydraulic systems on agricultural, construction, and municipal machinery due to its design features, materials, and operating parameters.
