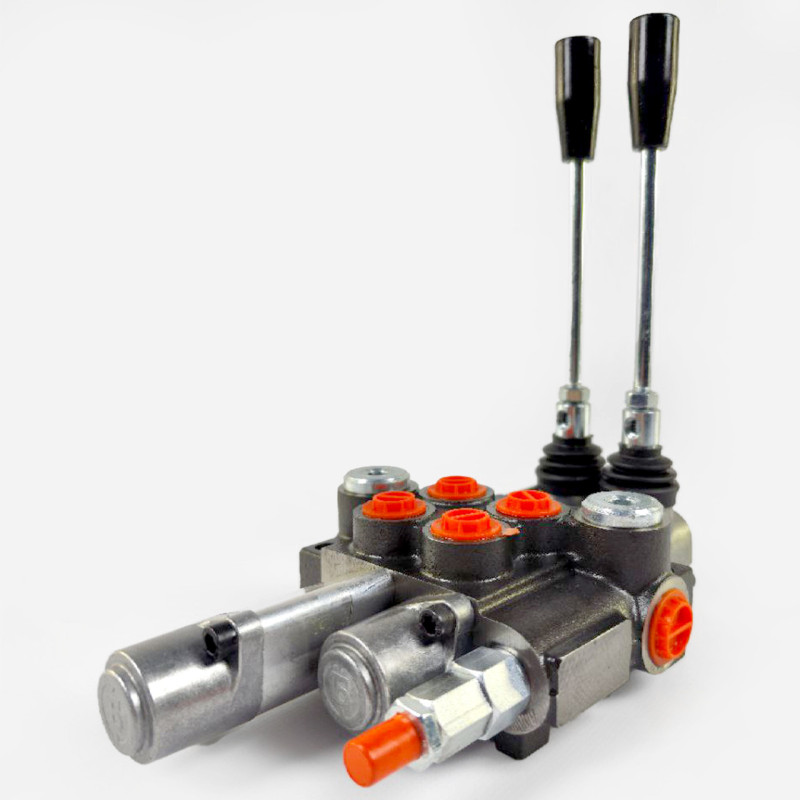

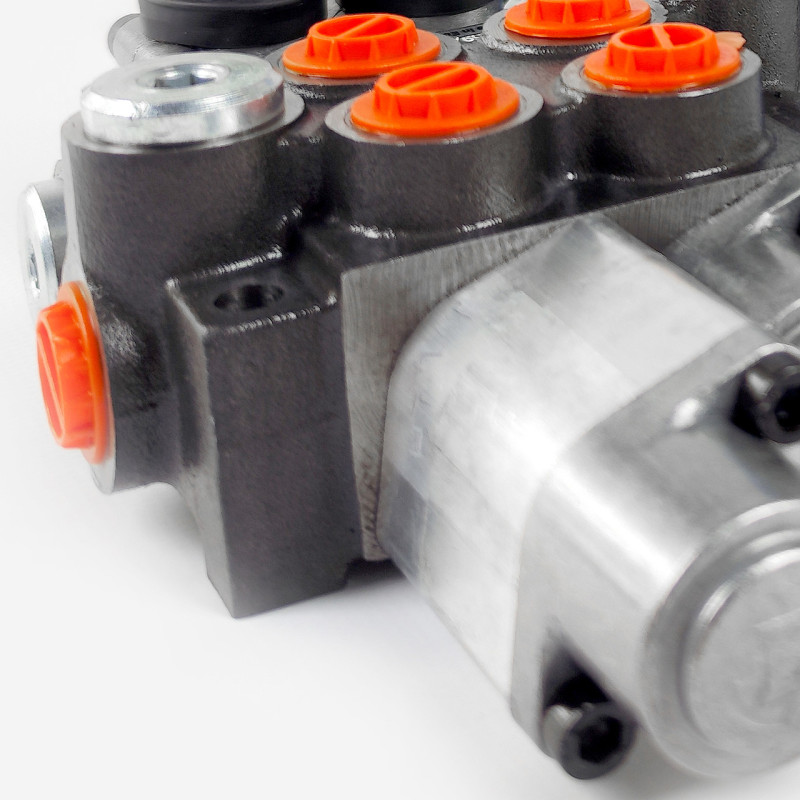

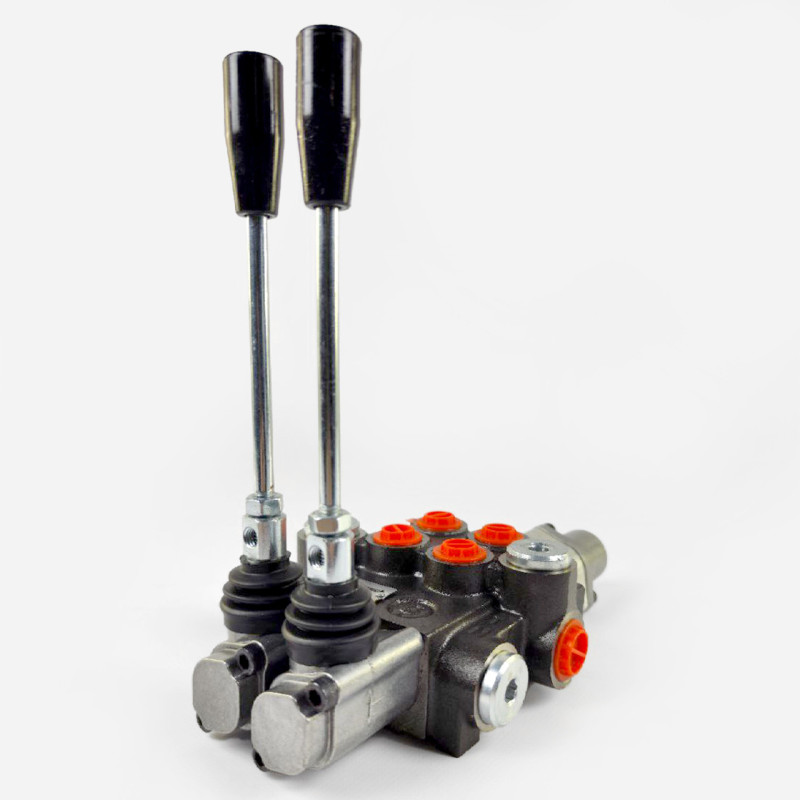

2P40 Hydraulic Distributor with Floating Mode and Detent by Badestnost (Bulgaria)

The Badestnost 2P40 hydraulic distributor is a monoblock manual hydraulic valve section designed in Bulgaria for precise control of the direction and flow of working fluid between hydraulic pumps and actuators (hydraulic cylinders, hydraulic motors). The device is designed to start, stop, and regulate fluid flow, featuring a floating position and a detent mode for the lever, which enhances ease of operation and safety. Brand: Badestnost. Product Category: Hydraulic Systems > Hydraulic Distributors. Product Type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors.

Structurally, the distributor body is made of EN-GJL300 cast iron, ensuring strength and durability in harsh operating conditions. The plungers (spools) are made of carburized steel with hard chrome plating for increased wear resistance. The distributor is equipped with manual spools that switch between three positions using a handle; all positions, including the floating one, can be mechanically locked (detent mode). Mounting is done with two M8 bolts.

Application

Monoblock 2P40 hydraulic distributors with a floating section and detent are widely used in mobile hydraulics: construction, agricultural, and municipal machinery (harrows, loaders, towed equipment, etc.). The floating position is useful when operating units where it is necessary to allow free movement of the working element or avoid load from the hydraulic system, while the detent mode facilitates prolonged operation without constant operator holding of the handle.

Key Parameters

• Number of working sections: 2
• Flow rate: 40 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm²/s
• Fluid temperature: -15°C...+80°C
• Filtration: 10 per NAS 1638
• Max. operating pressure: P = 315 bar; at T = 50°C: A, B = 300 bar
• Leakage (A,B-T): 5 cm³/min at 100 bar, 46 cSt
• Spool stroke: 6 mm
• Actuation force: < 200 N
• Mounting: two M8 bolts
• Body: EN-GJL300 cast iron
• Plunger material: carburized steel with hard chrome plating
• Detailed information: PDF, PDF2

The 2P40 distributor ensures reliable operation across a wide range of conditions: from low temperatures to high operating loads. Thanks to robust materials and proven design solutions, the Badestnost 2P40 model demonstrates durability and stability even under intensive operating modes. The detent mode simplifies operations when an aggregate needs to be fixed in a given position without constant operator holding of the handle, while the floating position allows the working elements of the machinery to have free movement (important for harrows, towed, and other agricultural equipment).

This hydraulic distributor is suitable for equipping new hydraulic systems or upgrading existing units. If you need technical advice on compatibility with your equipment or assistance in selecting parameters, please contact the seller's specialists or review the technical documentation at the provided links.
