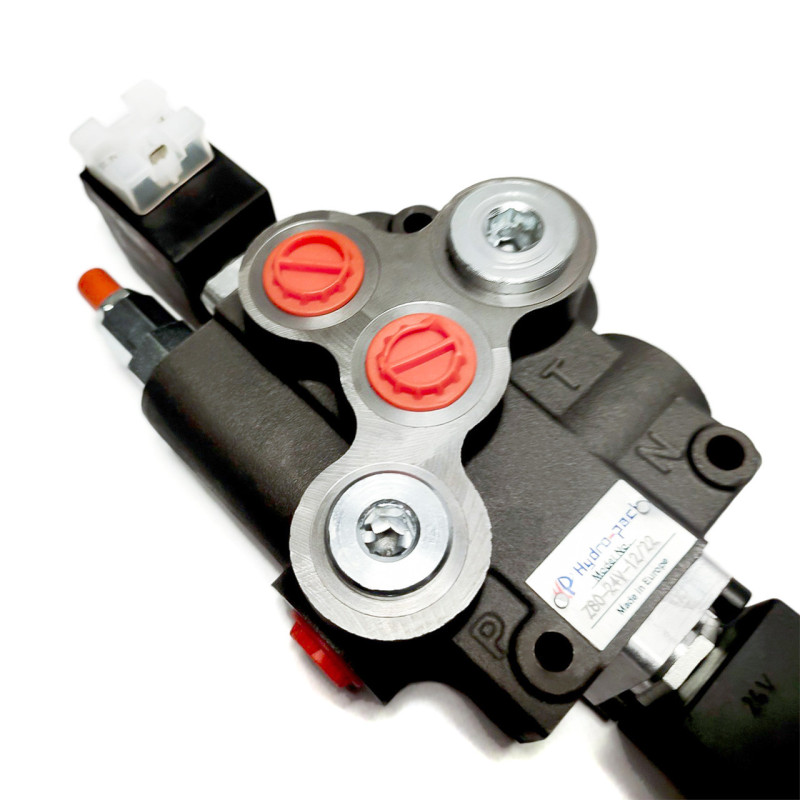

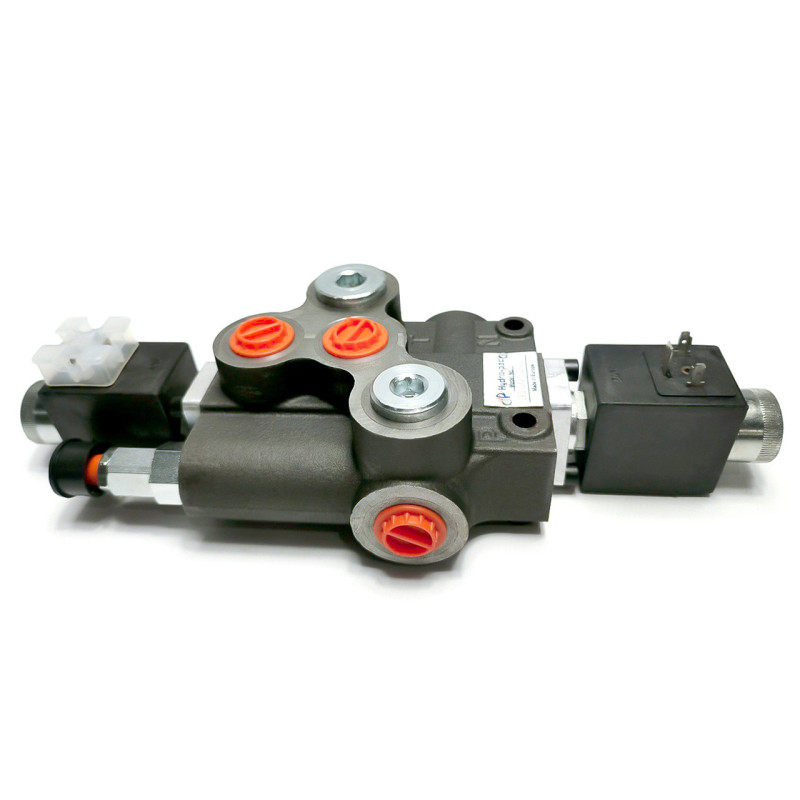

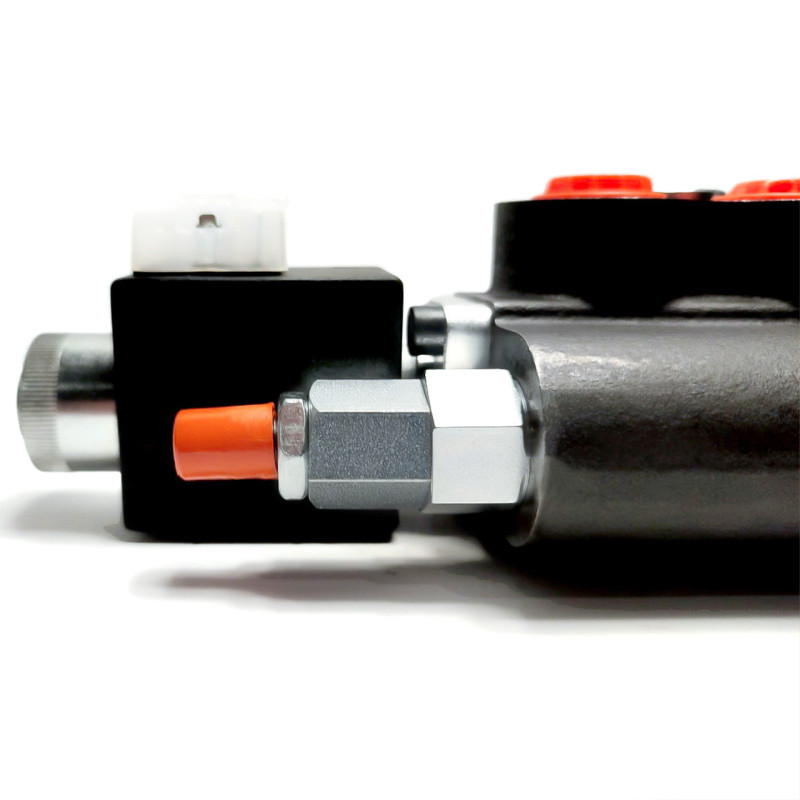

1Z80 24V Solenoid-Operated Hydraulic Control Valve by Badestnost

Brand: Badestnost. Single-section monoblock solenoid-type hydraulic control valve, designed for industrial and mobile hydraulic systems requiring reliability under intensive loads. The device is engineered for a flow rate of 80 l/min and operates on a standard 24V voltage, ensuring compatibility with modern electrical control systems.

The monoblock design, along with specially treated spools (precise honing of bores and grinding of spools), guarantees minimal leakage, reduced energy loss, and enhanced durability. The possibility of using interchangeable spools simplifies on-site servicing. Installation is standard – via mounting holes for M8 bolts or using a stud kit, ensuring easy integration into existing systems.

Key Features

• Product Code: Z80-A-ES3-24VDC-G
• Number of Spools: 1 (single-section)
• Spool Type: Open center "A" type with return spring
• Control: Double-acting P-B with return to neutral position (3 spool positions)
• Voltage: 24 V
• Flow Rate: 80 l/min
• Max Pressure: P: 250 bar, T: 50 bar, A-B: 300 bar
• Leakage: max. 40 cm³/min at 120 bar (from A, B to T)
• Operating Fluid Temperature Range: -10 °C to +80 °C
• Operating Fluid: Mineral-based hydraulic oil
• Viscosity: 10 to 100 cSt
• Filtration: 10 according to NAS 1638 standard
• Ports: P, A, B - G 1/2; T - G 3/4
• Detailed Information: PDF

The 1Z80 hydraulic control valve is ideal for designing new hydraulic systems or upgrading existing units due to its versatile operating schemes (double-acting, 3 spool positions) and high reliability. High-quality machining of the spools ensures stable operation under varying operating conditions, while clearly defined operating parameters (pressure, leakage, temperature range, filtration and viscosity requirements) help in correctly selecting the component for specific machine or equipment tasks.

The modular monoblock design significantly speeds up installation and maintenance: standard M8 bolt mounts or a complete stud kit allow for quick integration of the valve into typical mounting frames. The use of interchangeable spools reduces downtime during repairs, and precise machining reduces leakage and increases system energy efficiency.

Applications: industrial hydraulic lines, mobile machinery (tractors, special equipment, agricultural machinery), modernization of existing circuits, design solutions with increased reliability and service life requirements. Technical parameters and additional documentation are available in the official manufacturer's PDF. If you need consultation on selection or clarification of characteristics, please contact our specialists.
