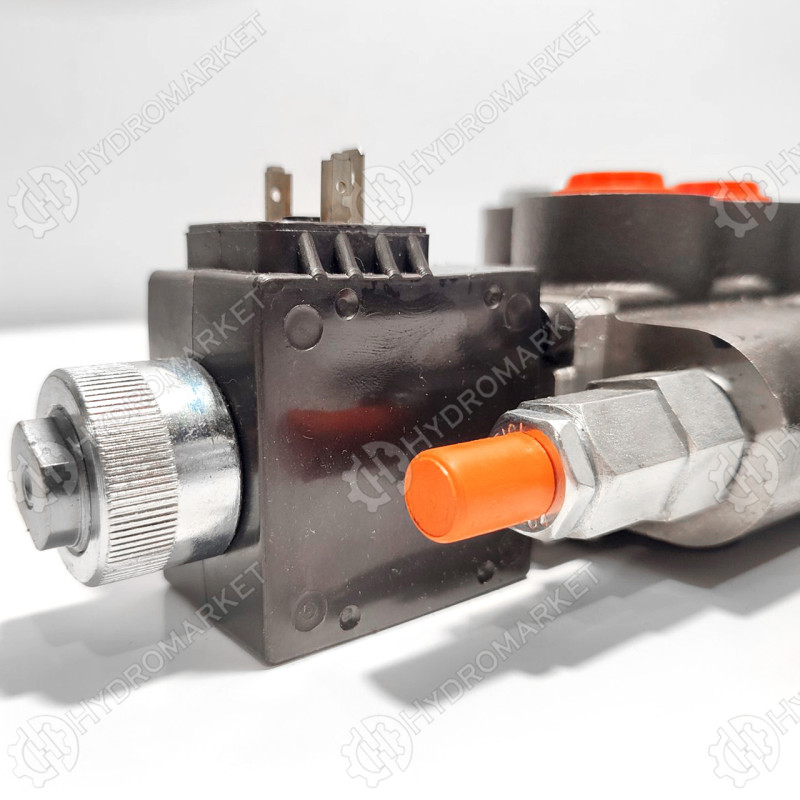

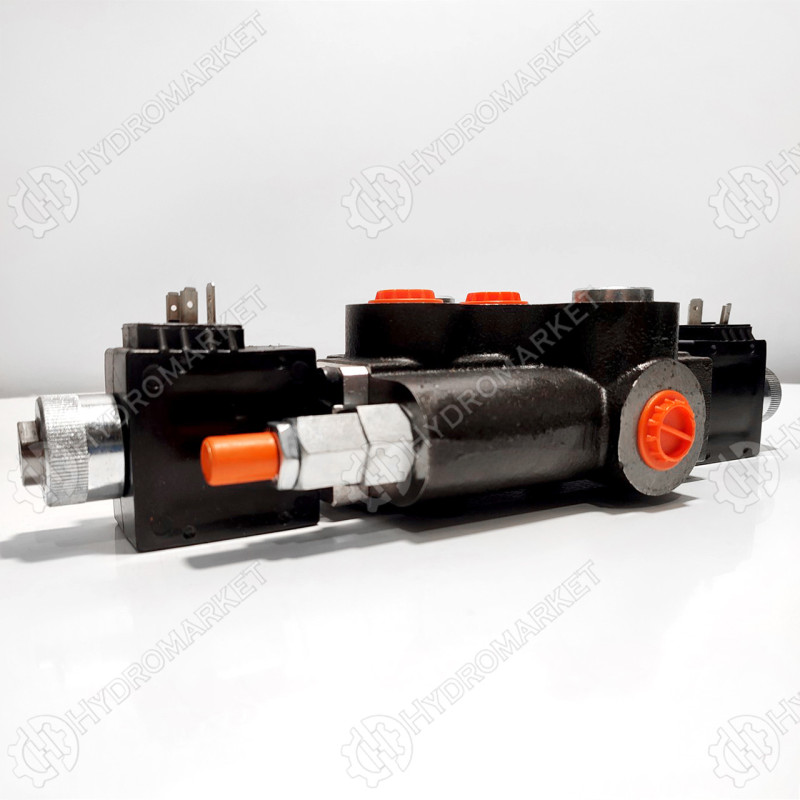

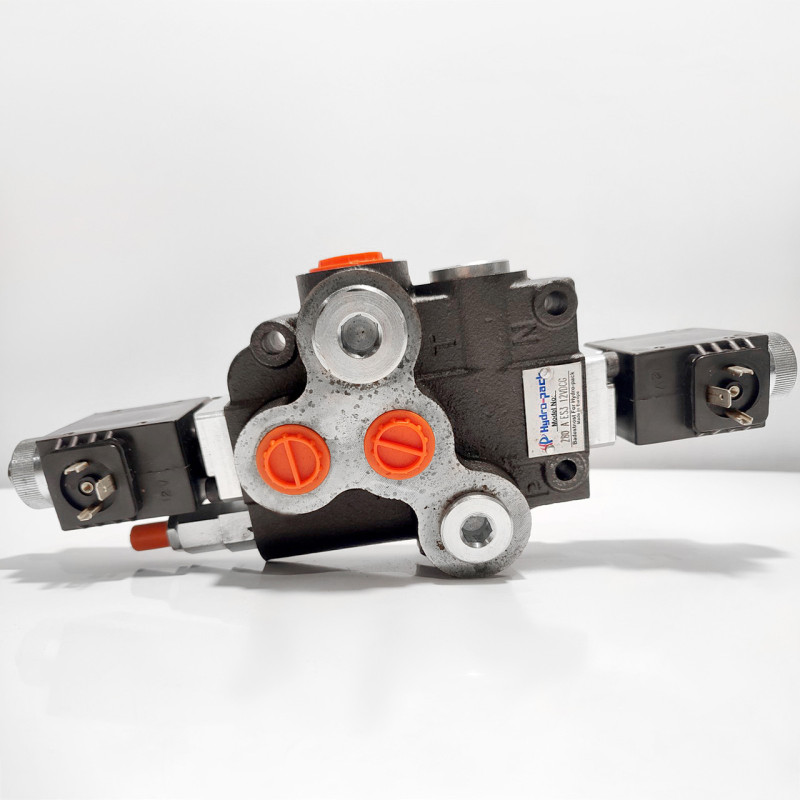

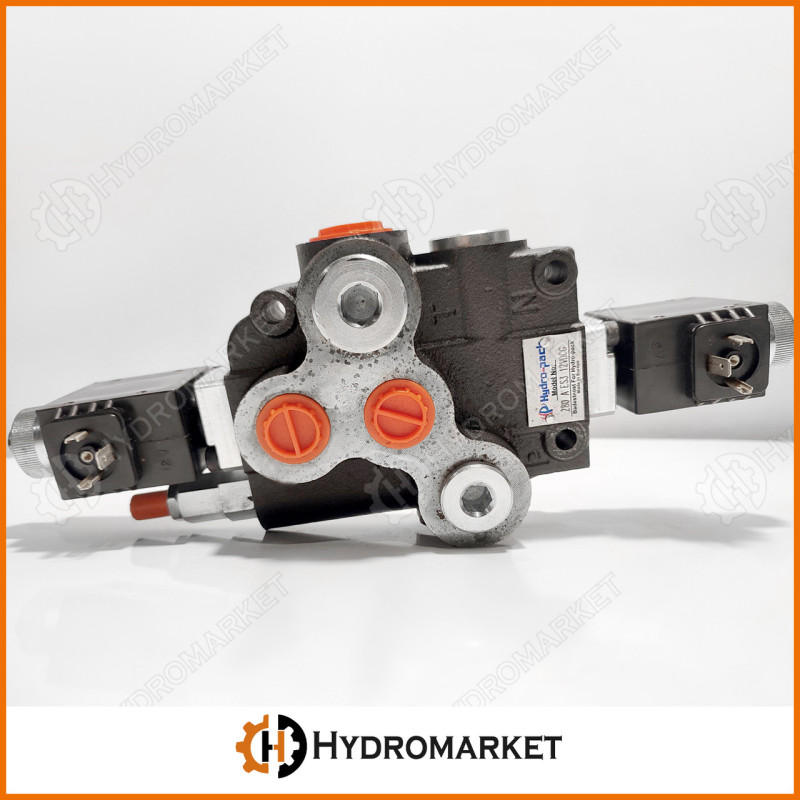

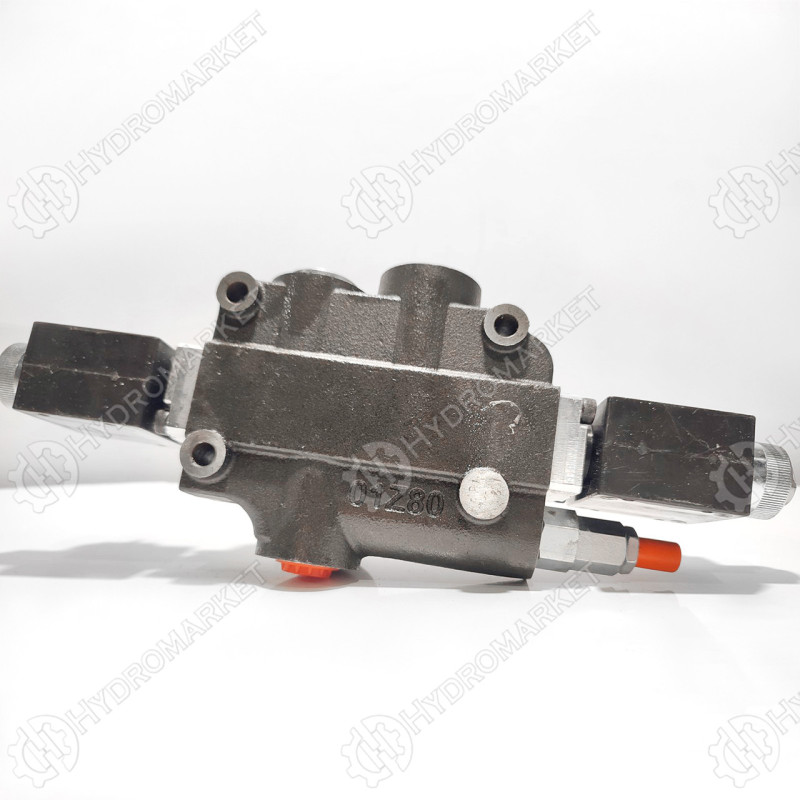

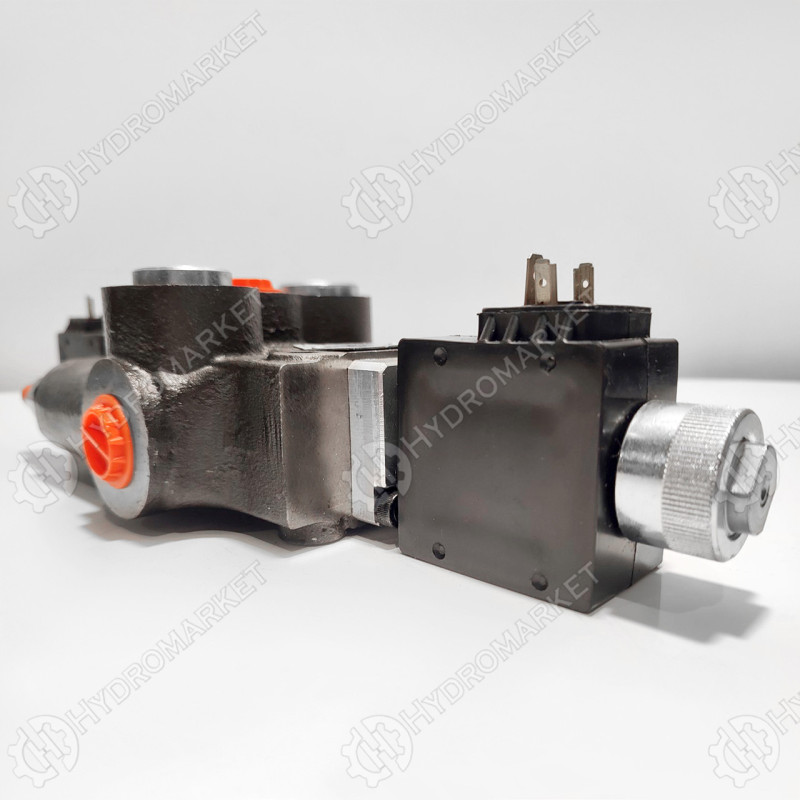

Hydraulic Control Valve 1Z80 12V with Solenoid Control Badestnost

We offer a monoblock solenoid hydraulic control valve, single-section, for 80 l/min, ideal for both designing new hydraulic systems and modernizing existing ones. The model combines a reliable monoblock body and high-precision spools, providing double-acting operation in 3 spool positions and allowing for complex hydraulic circuits and precise flow and direction control.

Manufacturer and Product Type

Manufacturer: Badestnost. Product Type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Control Valves.

Key Features and Benefits

Precise honing of bores and grinding of spools ensure reduced leakage and lower energy losses. The design includes interchangeable spools for easy maintenance without complex repairs. Mounting is standard for monoblock valves: M8 bolts or a complete set of studs, simplifying integration into existing systems. The monoblock design guarantees reliability and long service life in harsh operating conditions.

Technical Specifications

• Product Code: Z80-A-ES3-12VDC-G
• Number of Spools: 1
• Spool Type: Open center "A" type with return spring
• Control: Double-acting P-B with return to neutral position
• Voltage: 12 V
• Flow Rate: 80 l/min
• Max Pressure: P: 250 bar; T: 50 bar; A-B: 300 bar
• Leakage: max. 40 cm³/min at 120 bar (from A, B to T)
• Operating Fluid Temperature Range: -10 °C to +80 °C
• Operating Fluid: Mineral-based hydraulic oil
• Viscosity: 10 to 100 cSt
• Filtration: 10 according to NAS 1638 standard
• Ports: P, A, B - G 1/2; T - G 3/4
• Detailed Information: PDF

This hydraulic control valve from Badestnost is designed with an emphasis on minimizing internal leaks and ease of maintenance: spare spools can be quickly replaced on-site, and standard mounting with M8 bolts or studs ensures simple integration into existing systems. Design solutions reduce energy losses and ensure stable operation under high load.

Thanks to its high flow rate and operating pressure, this model is suitable for use in hydraulic machines and mechanisms where reliable and precise flow and direction control solutions are required. Before use, it is recommended to adhere to the filtration and viscosity requirements of the operating fluid to maintain operational parameters and longevity.

Other technical and operational questions can be clarified in the manufacturer's documentation or by calling the sales department. Detailed technical information and diagrams are available in the PDF file, the link to which is provided above.
