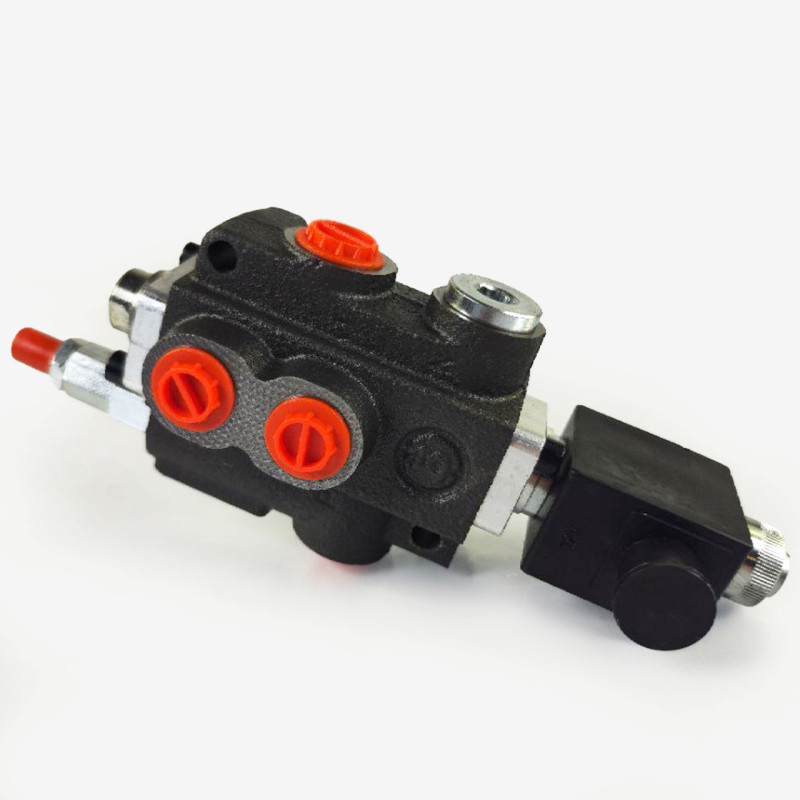

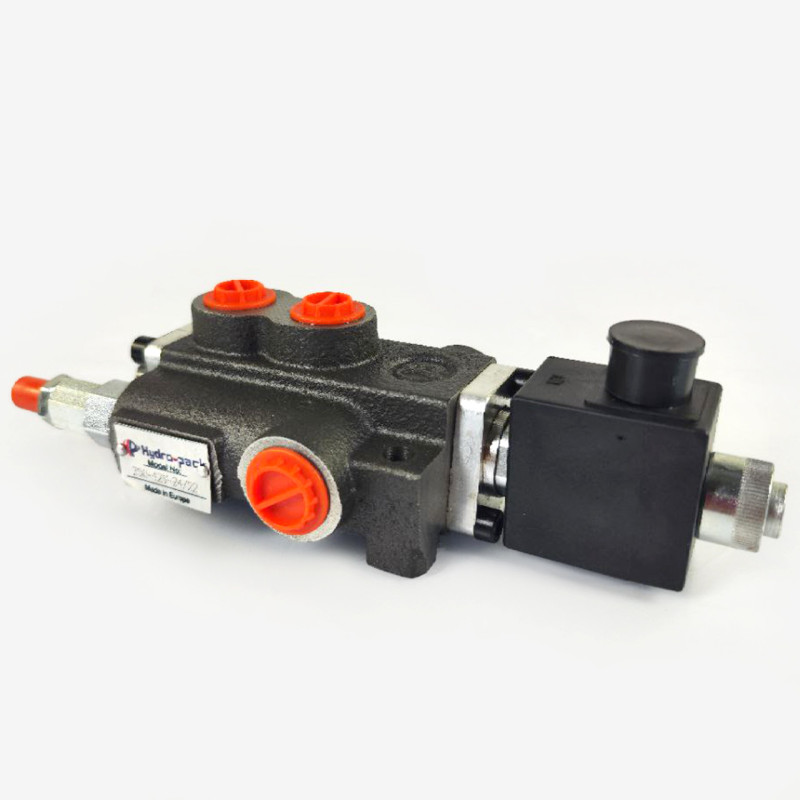

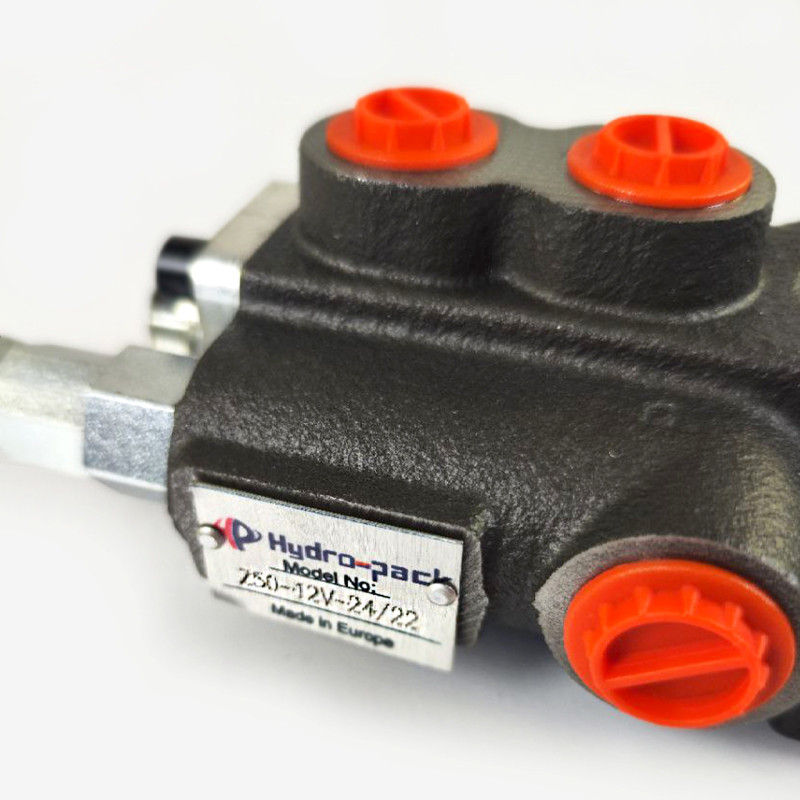

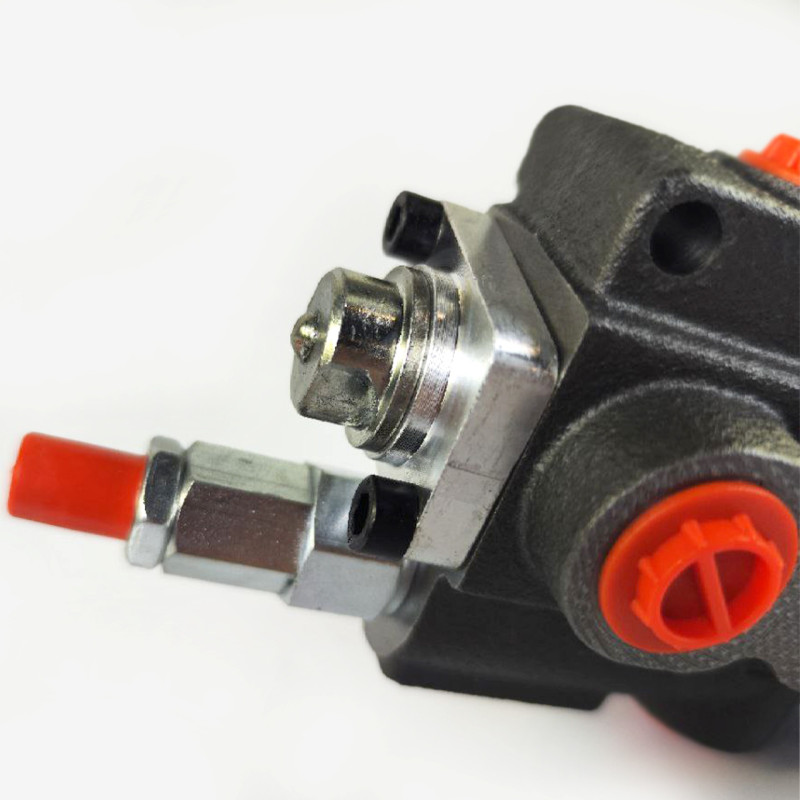

1Z50 12V Solenoid-Operated Hydraulic Control Valve Badestnost

The 1Z50 single-section monoblock solenoid-operated hydraulic control valve from Badestnost is a reliable solution for controlling hydraulic circuits with a flow rate of 50 l/min at a control voltage of 12V. The device combines a compact monoblock body and a proven spool design, making it suitable for both new installations and the modernization of existing units.

Description and Features

The hydraulic control valve features precisely honed bores and ground spools, which significantly reduces internal leakage and minimizes energy losses in the system. The design allows for interchangeable spools for quick servicing without the need to replace the entire block. Mounting is done with standard M8 bolts or a stud kit, ensuring compatibility with typical mounting solutions on equipment.

Hydraulic Control Valve Specifications

• Product Code: Z50-A-ES1-12VDC-G
• Number of Spools: 1
• Spool Type: Open center "A" type with spring return
• Control: Single-acting P-A with return to neutral position (double-acting in 3 spool positions)
• Voltage: 12V
• Flow Rate: 50 l/min
• Max Pressure: P: 315 bar, T: 50 bar, A-B: 300 bar
• Leakage: max. 18 cm3/min at 100 bar (from A, B to T)
• Operating Fluid Temperature Range: -10 °C to +80 °C
• Operating Fluid: Mineral-based hydraulic oil
• Viscosity: 10 to 100 cSt
• Filtration: 10 according to NAS 1638 standard
• Ports: P, T - G 1/2; A, B - G 3/8
• Manufacturer: Badestnost
• Category: Hydraulic Systems > Hydraulic Control Valves
• Detailed Information: PDF, PDF2

The 1Z50 model is optimally suited for agricultural, construction, and industrial machinery where precise solenoid control of single- or multi-acting actuators is required. To ensure durability and minimize wear of internal parts, it is important to adhere to recommendations regarding operating fluid and filtration level (10 according to NAS 1638).

Advantages of this model include a compact monoblock body for easy mounting and integration, a high flow rate of 50 l/min with small dimensions, a high working pressure limit, and low internal leakage due to high-precision spool machining. Design solutions simplify service maintenance: interchangeable elements and standard fasteners allow for quick repairs and replacement of components without prolonged downtime.

If you need a reliable hydraulic control valve for modernizing hydraulic systems or installing in new projects, the 1Z50 model from Badestnost provides an efficient and economical solution with high control precision and a long service life across a wide range of operating temperatures and conditions.
