Hydraulic Distributor 1P80 with Floating Mode Badestnost (Bulgaria)

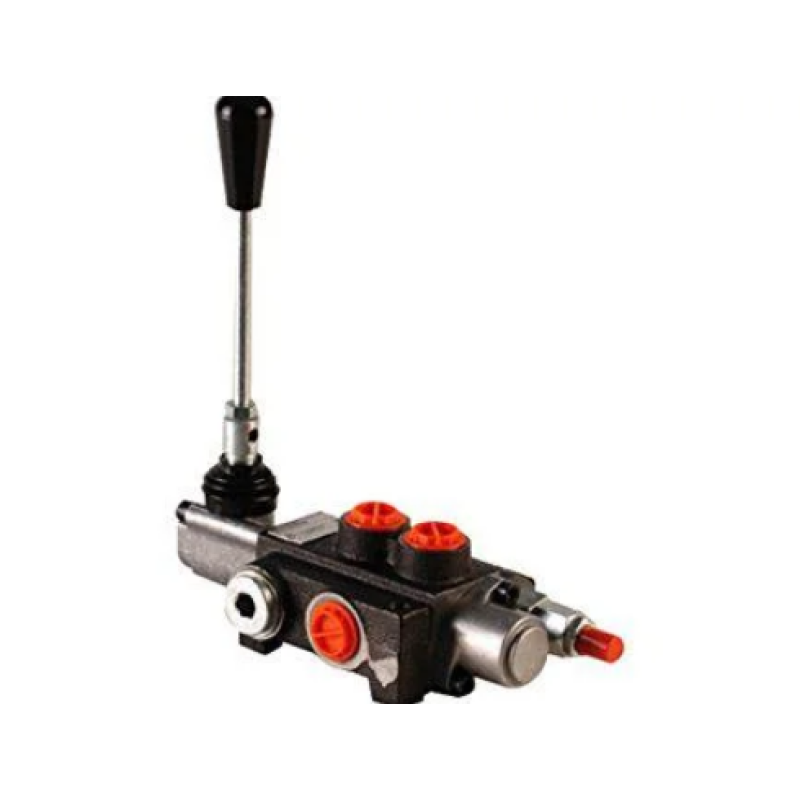

Badestnost 1P80 is a monoblock hydraulic distributor with manual control, designed to start, stop, and control the flow of working fluid between hydraulic pumps and actuators (hydraulic cylinders, hydraulic motors). The body is made of EN-GJL300 cast iron, and the plungers are made of carburized steel with hard chrome plating. The distributor features manual spools that can be switched into three positions using a handle, and it is also equipped with a floating section for specialized operating modes.
Installation is done with three M8 bolts. This model is actively used in mobile hydraulics: on construction, agricultural, and municipal machinery, where control of flow direction and intensity, as well as the ability to fix the position for convenience and operational safety, are important. The presence of a floating position makes the 1P80 optimal for implements such as harrows, trailed, and mounted equipment.
Key Parameters
- Number of working sections: 1
- Flow capacity: 80 l/min
- Ambient temperature: -40°C...+60°C
- Hydraulic fluid: mineral oil/hydraulic oil
- Viscosity: 12...800 mm²/s
- Fluid temperature: -15°C...+80°C
- Filtration: 10 per NAS 1638
- Max. operating pressure: P=315 bar; at T=50°C: A, B = 300 bar
- Leakage (A,B-T): 6 cm³/min at 100 bar, 46 cSt
- Spool stroke: +/- 7 mm
- Actuation force: < 220 N
- Mounting: three M8 bolts
- Body: EN-GJL300 cast iron; plungers: carburized steel with hard chrome plating
- Control: manual spools, three positions, with floating section
- Detailed information: PDF, PDF2
This model is designed for reliable operation across a wide range of temperatures and working oil viscosities, ensuring precise flow control and minimal leakage. The Badestnost 1P80 combines robust construction (cast iron body), wear-resistant elements (chrome-plated plungers), and ease of control (manual spools with floating mode), making it an excellent choice for tractors, trailed equipment, hydraulic mechanisms of municipal machinery, and special vehicles.

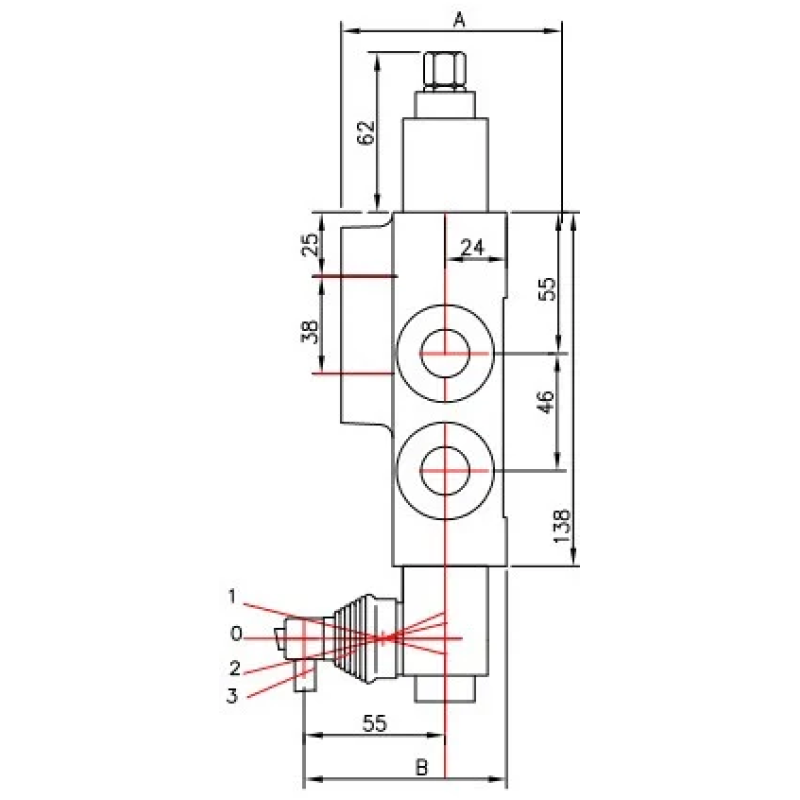

| A | B | C | D | P1 | P2 | T1 | T2 |
|---|---|---|---|---|---|---|---|
| 65 mm | 79 mm | 107 mm | 65 mm | + | + | - | - |
Manufacturer: Badestnost. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Distributors.
Badestnost 1P80 is a practical solution for those seeking a reliable monoblock hydraulic distributor with floating mode, high flow capacity, and resistance to harsh operating conditions.
