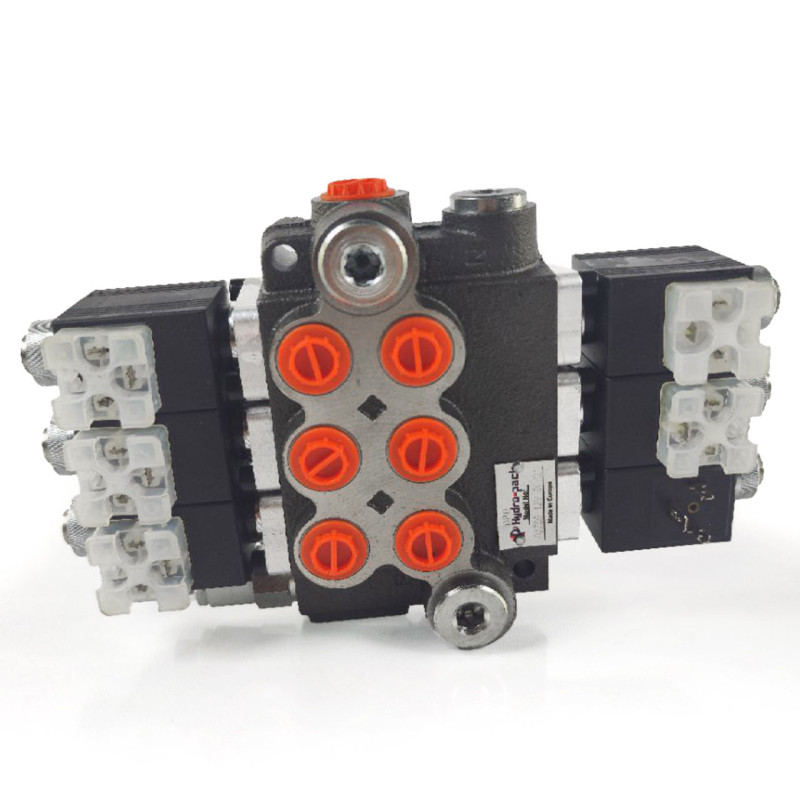

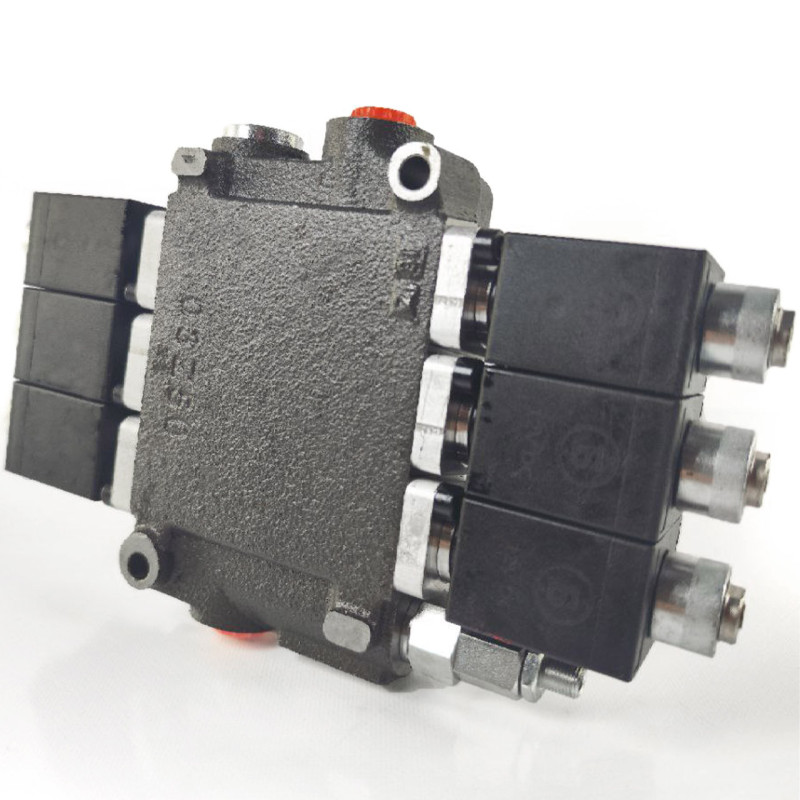

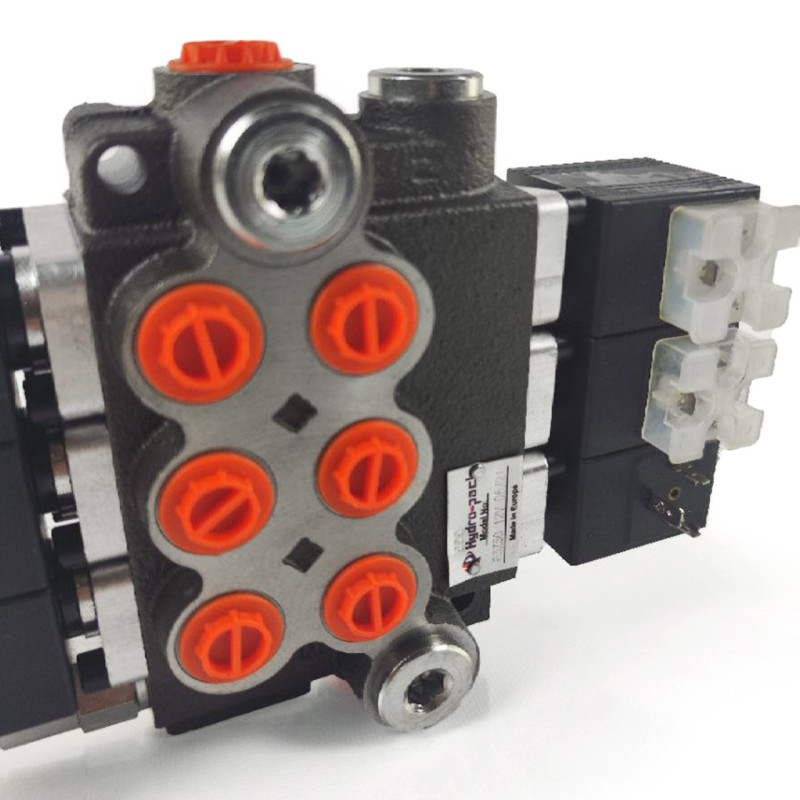

Hydraulic Control Valve 03Z50-DDD-ES3-12VDC-G 12V Badestnost

The monoblock electromagnetic hydraulic control valve, three-section with a nominal flow rate of 50 l/min from the manufacturer Badestnost, is a reliable and compact solution for designing new hydraulic systems and modernizing existing units. The monoblock design ensures high rigidity and compactness, while precise spool machining and accurately honed boreholes reduce internal leaks and energy losses, increasing overall operational efficiency.

The use of precise honing and grinding of spools achieves minimal leaks and a long service life without significant performance losses. Interchangeable spools simplify on-site maintenance, and the standard mounting method with M8 bolts or a stud kit ensures quick integration into existing assemblies.

Key Advantages

• Compact monoblock — convenient for integration into hydraulic circuits.
• Precise spool machining — reduced leaks and increased efficiency.
• Interchangeable elements — ease of repair and maintenance.
• Standard mounting — M8 bolts or a complete stud kit.

Technical Specifications

• Product Code: 03Z50-DDD-ES3-12VDC-G
• Number of Spools: 3
• Type: without fixed neutral position, operates in "floating" mode in neutral position
• Voltage: 12 V
• Nominal Flow Rate: 50 l/min
• Maximum Pressure: P: 315 bar; T: 50 bar; A-B: 300 bar
• Leakage: max. 18 cm³/min at 100 bar (from A, B to T)
• Operating Fluid Temperature Range: -10 °C to +80 °C
• Operating Fluid: mineral-based hydraulic oil
• Viscosity: 10 to 100 cSt
• Filtration: 10 according to NAS 1638 standard
• Ports: P, T - G 1/2; A, B - G 3/8
• Mounting: M8 bolts or stud kit

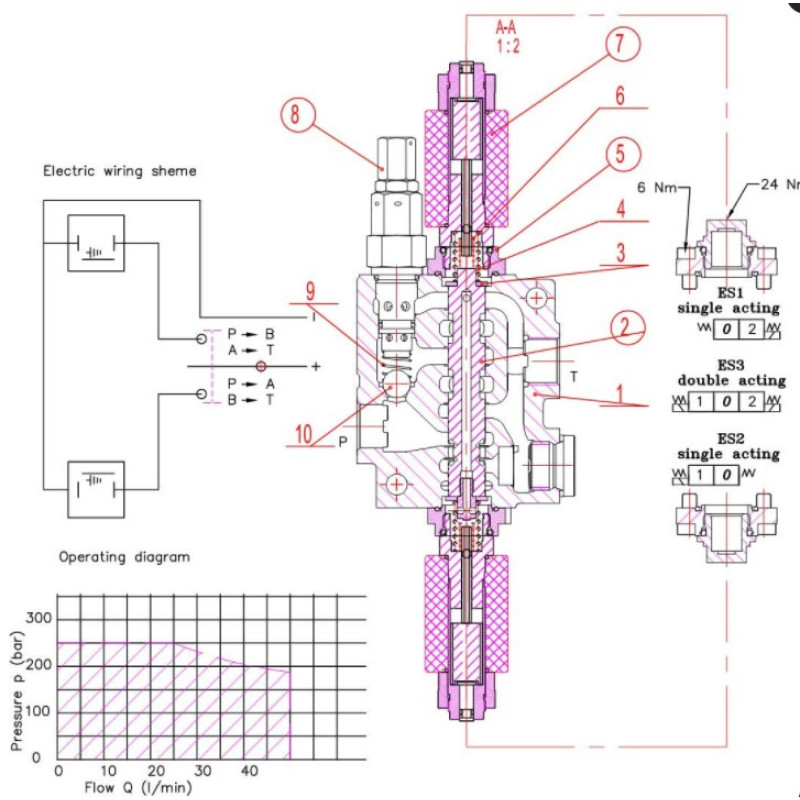

• Detailed Information: PDF, PDF2

This hydraulic control valve is ideal for agricultural machinery, dump trucks, industrial presses, and other mobile and stationary systems requiring reliable electromagnetic control and compact mounting. Thanks to its maintained operating parameters (pressures, flow rate, and temperature range), the valve ensures stable operation across a wide range of operating conditions, withstands intensive duty cycles, and has a service life that reduces equipment downtime.

Manufacturer: Badestnost. Product Category: Hydraulic Systems > Hydraulic Control Valves.
