Product Code: FA94-19367-94
3 807 грн.
Buy this product in 1 click:
Main specifications
AHD + Analog DVR Operating Mode:
4x8MP, 4x5MP
AHD Camera Support:
1, 1.3, 1.4, 2, 2.1, 2.4, 3, 5, 8
Audio Input:
4 (RCA)
Audio Output:
1 (RCA)
Ethernet LAN, Mbit:
10/100
All specifications
We will deliver this product:
Payment
Description
Type - GHD; Supported camera types - AHD, TVI, CVI, Analog CVBS, IP; Number of connectable cameras - 4 pcs; Resolution - 3840x2160; Megapixels - 1, 1.3, 1.4, 2, 2.1, 2.4, 3, 4, 5, 8; Video output - VGA, HDMI (MAX 4K); Processor - 00000; Number of supported HDDs - 1 pc; Maximum HDD capacity - 8 TB; Video compression - H.264, H.265; Audio input - 4 (RCA); Audio output - 1 (RCA); Ethernet LAN - 10/100 Mbit; PTZ camera control - yes; Power supply - 12V 4000 mA; Operating temperature - 0 ~ +55; Housing material - metal/plastic.
Specifications
AHD + Analog DVR Operating Mode
4x8MP, 4x5MP
AHD Camera Support
1, 1.3, 1.4, 2, 2.1, 2.4, 3, 5, 8
Audio Input
4 (RCA)
Audio Output
1 (RCA)
Ethernet LAN, Mbit
10/100
GHD Camera Support
1, 1.3, 1.4, 2, 2.1, 2.4, 3, 5, 8
Height, mm
50
Housing material
metal/plastic
IP Camera Support
1, 1.3, 1.4, 2, 2.1, 2.4, 3, 5
IP NVR Operating Mode
8x1080p+8x960p, 4x5MP, 3x5MP
Kit Contents

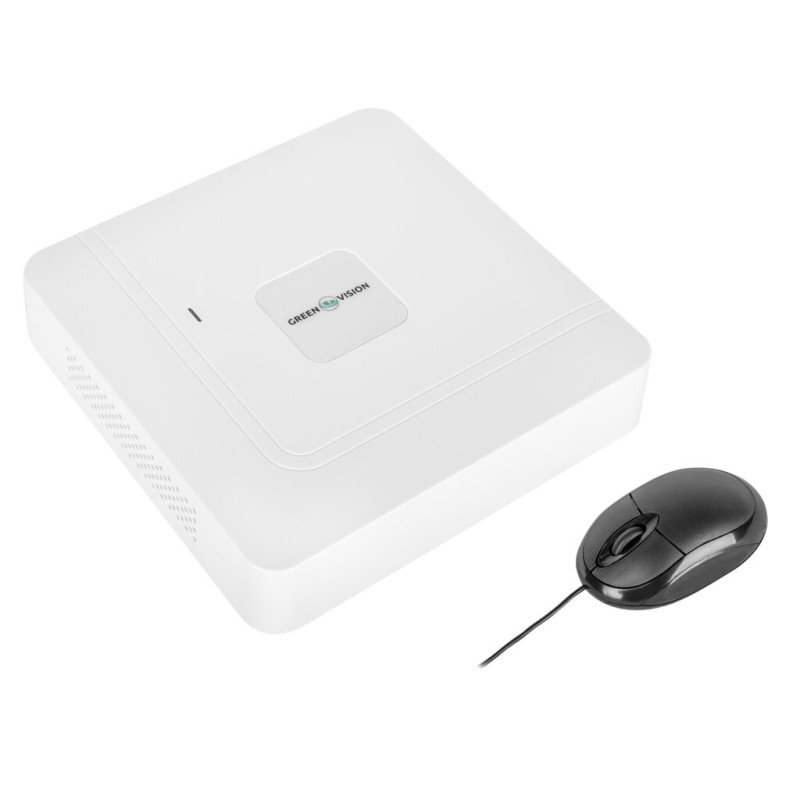

Recorder; Power supply; Power cable; Mouse
Length, mm
200
Max HDD capacity, TB
8
Megapixels, MP
1, 1.3, 1.4, 2, 2.1, 2.4, 3, 4, 5, 8
Number of IP channels
4
Number of supported HDDs
1
Number of USB ports
2
Operating System
Linux
Operating temperature, °C
0 ~ +55
Operation Mode AHD + Analog CVBS + IP HVR
AHD - 4x5MP + IP - 4x5MP, AHD - 2x4K + IP - 2x4K
Power consumption, W
15
Power, V/mA
12/4000
PTZ Camera Control
is
Resolution
3840x2160
RS485
is
Series
Lite
Type
GHD
Video Compression
H.264, H.265
Video Output
VGA, HDMI (MAX 4K)
Video output CVBS, BNC
no
Video Transmission Technology
AHD, TVI, CVI, Analog CVBS, IP
Volume, m³
0.002
Warranty, months
12
Weight, kg
0.53
Width, mm
200
Color
white
