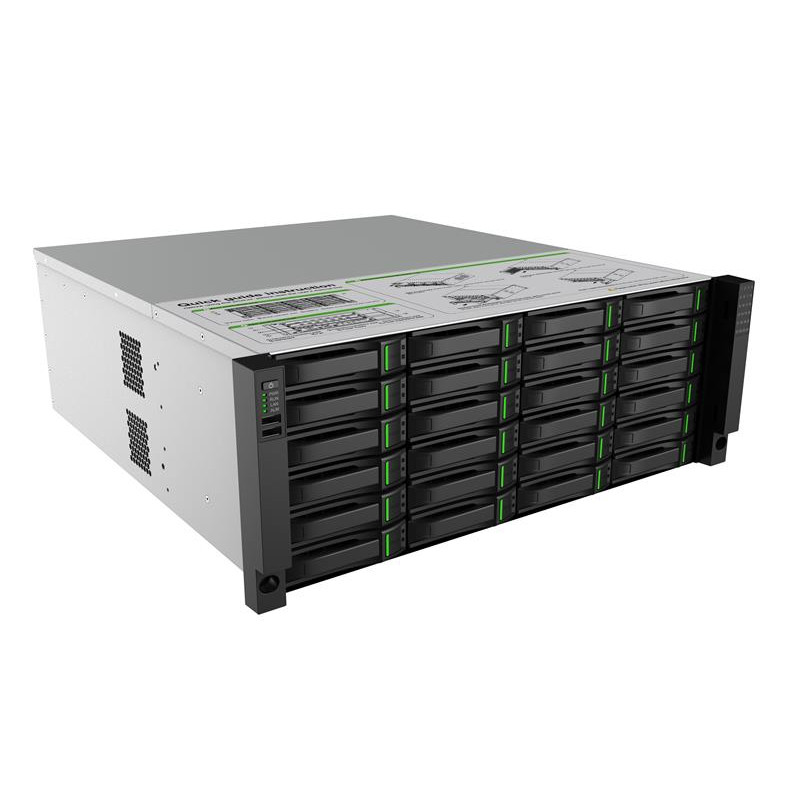

Tiandy TC-R324160 Spec:E/B/R/N/V4.1

H.265 24HDD 160-Channel Pro Series NVR

• Supported camera resolution: up to 16MP
• Input/Output bandwidth: 800 Mbps / 400 Mbps
• 2×USB2.0; 1×USB3.0
• 2×HDMI; 1×VGA
• 4×RJ-45, 10/100/1000 Mbps self-adaptive network
• 24×SATA interfaces up to 24TB per HDD (Disk array - 16 JBOD disks, RAID0-60; hot-swappable)
• 1×RS232; 2×RS485
• Operating conditions -10º~55º
• AC100~240V; Redundant power supply

HD Input

• Video formats S+265/H.265/ S+264/H.264
• Ability to connect third-party ONIF, RTSP network cameras
• Supports real-time viewing, storage, and playback of connected cameras with resolutions up to 16 MP
• 16MP(30fps)×3, 12MP(30fps)×4, 8MP(30fps)×7, 6MP(30fps)×9, 5MP(30fps)×11, 4MP(30fps)×14, 3MP(30fps)×18, 1080P(30fps)×28, 720P(30fps)×56, 4CIF(30fps)×80

HD Output

• 2×HDMI 4K and 1×VGA simultaneous outputs
• 16MP(30fps)×3, 12MP(30fps)×4, 8MP(30fps)×6, 6MP(30fps)×8, 5MP(30fps)×9, 4MP(30fps)×12, 3MP(30fps)×16, 1080P(30fps)×16, 720P(30fps)×16

Various Applications

• Centralized management of IP cameras, including configuration, import/export of information, real-time information display, updates
• Supports camera analytics: line crossing; double crossing; perimeter; object left; object missing; loitering; running; parking; heat map; abnormal video; abnormal audio; license plate recognition; queue detection; crowd detection; parking guard; safety helmet detection; e-bike detection; people counting; PTZ camera tracking linkage; smoke and fire detection; ambient temperature measurement; face detection; human body temperature measurement; smart motion; face recognition; human/vehicle classification
• Intelligent archive search: heat map; early warning search; behavior search; license plate search; safety helmet search; thermographic search; queue search; electric bicycle search; face search.
• Face search attributes: gender; age; up to 300 face libraries; up to 100,000 base images; face image comparison (cooperation with face recognition IPC)
• Web6 supports plug-in-free viewing and can view video in all browsers
• Supports cloud upgrade
