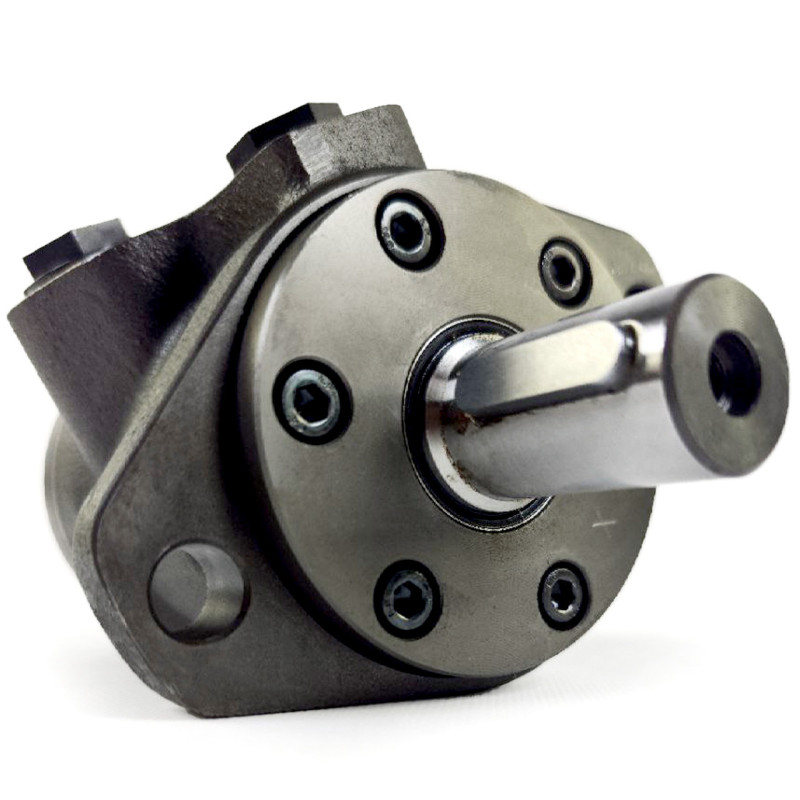

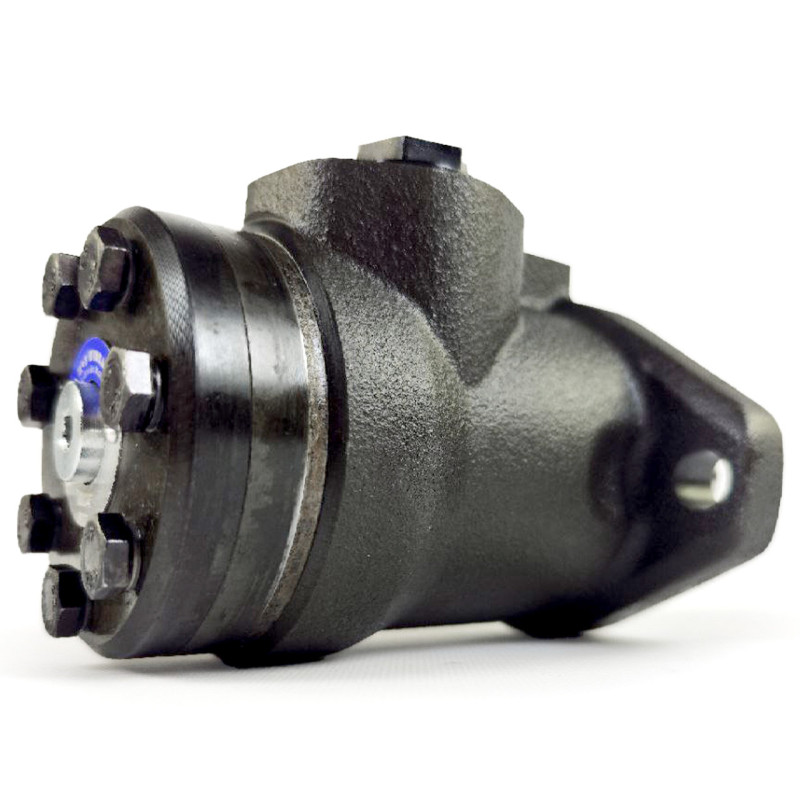

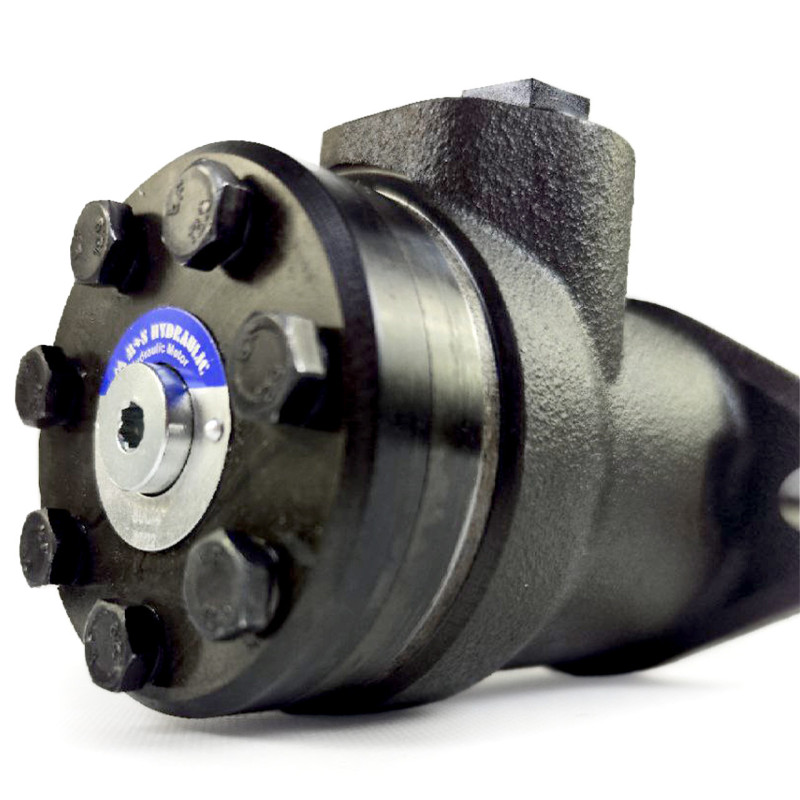

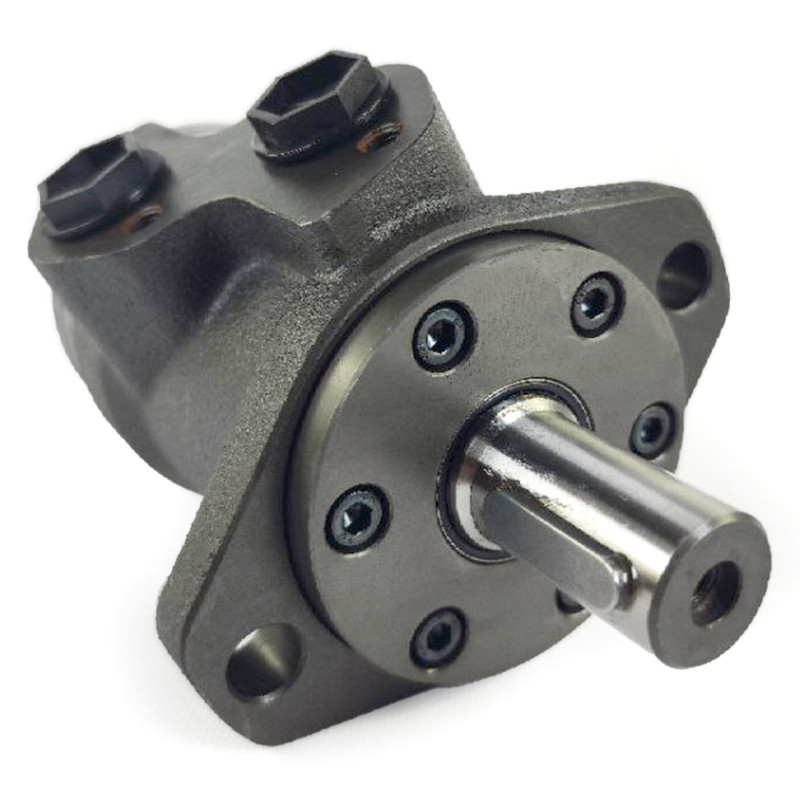

Gerotor Hydraulic Motor MP 80 C M+S Hydraulic (79.2 cm3, 10.2 kW, 755 rpm)

The MP 80 C gerotor hydraulic motor from M+S Hydraulic (manufactured in Bulgaria), presented under the Hidros brand, is a compact and reliable unit from the MP series, designed for continuous operation at moderate pressures and short-term use under increased loads. The model has a displacement of 79.2 cm³/rev and provides a maximum power of up to 10.2 kW at a rotational speed of up to 755 rpm, making it suitable for various special machinery and industrial equipment.

Shaft and Seals:

• Straight cylindrical shaft ø25 mm for key A8x7x32 DIN6885
• Standard shaft seal
• Other shaft options available upon request (see technical specifications in PDF)

Applications: various special machinery and industrial equipment; suitable for tractors, motor and ATV equipment, boat drives, and other hydraulic systems.

Key Parameters:

• Displacement: 79.2 cm³/rev
• Maximum speed: 755 rpm
• Maximum torque: 151 Nm
• Maximum power: 10.2 kW
• Maximum pressure drop: 140 bar
• Maximum oil flow: 60 l/min
• Weight: 5.9 kg
• Detailed information: PDF

Note: MP series hydraulic motors are supplied by default with an additional shaft seal (option D), which increases reliability under conditions of increased load and dust.

Operating Recommendations

• Avoid simultaneous short-term high speed and short-term high pressure.
• Recommended filtration corresponds to ISO cleanliness code 20/16; nominal filtration 25 microns or higher.
• It is recommended to use high-quality mineral-based hydraulic oil HLP (DIN 51524) or HM (ISO 6743/4).
• Recommended minimum oil viscosity: 13 mm²/s [70 SUS] at 50°C [122°F].
• Recommended maximum system operating temperature: 82°C [180°F].
• To ensure optimal service life, before maximum load, fill the hydraulic system and allow the hydraulic motor to operate at moderate load and speed for 10–15 minutes.

Manufacturer: M+S Hydraulic (Bulgaria). Brand: Hidros. Product belongs to category: Tractors, Motor, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Motors.
