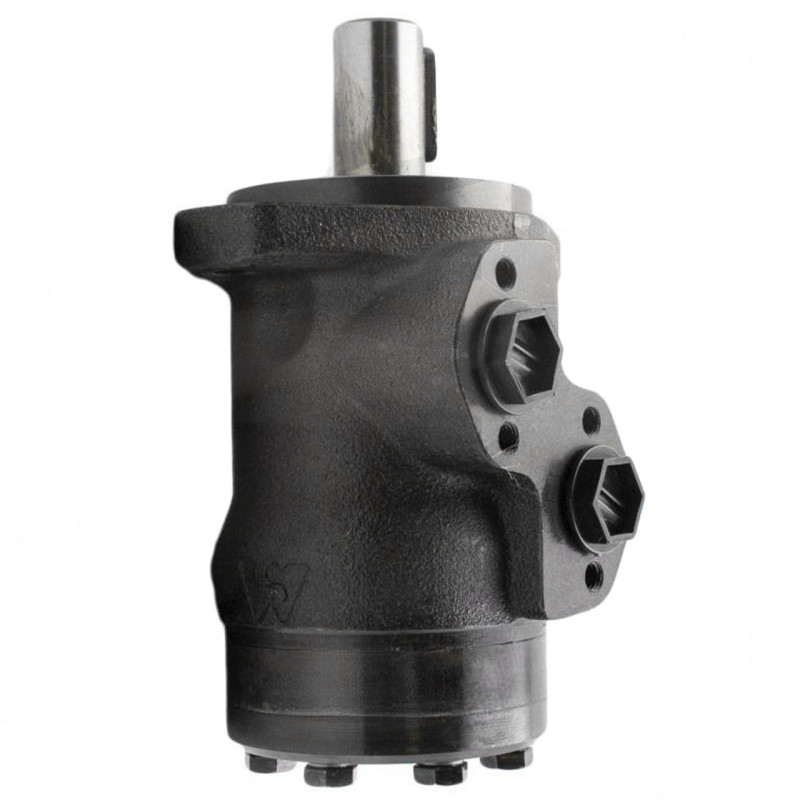

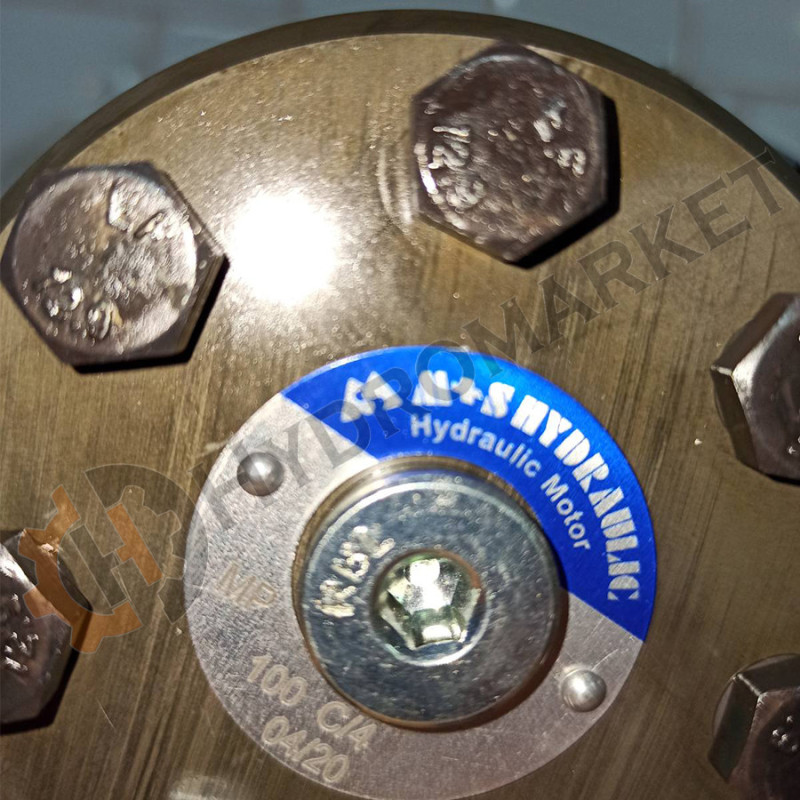

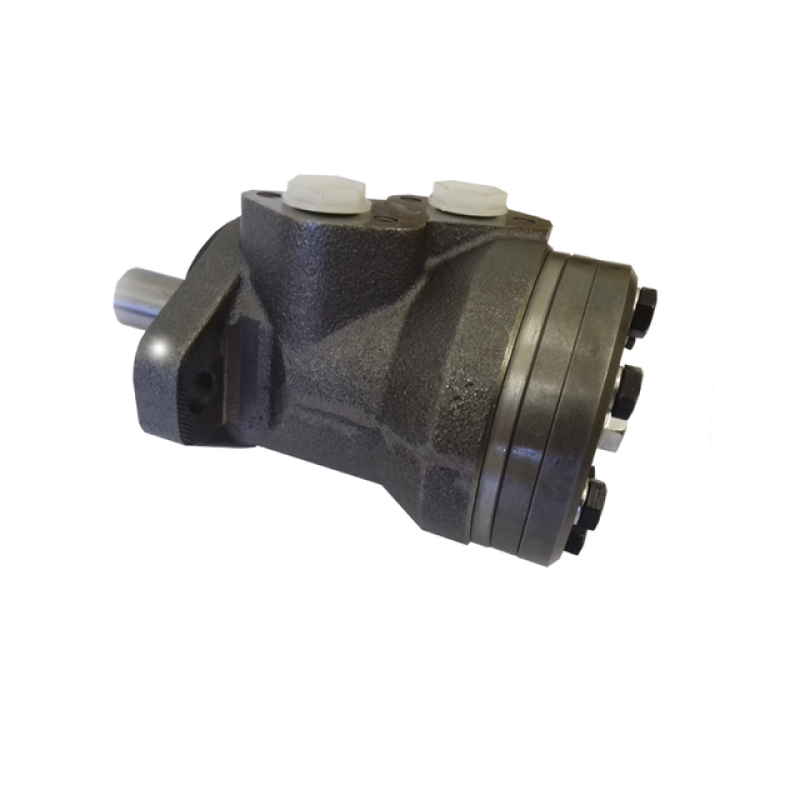

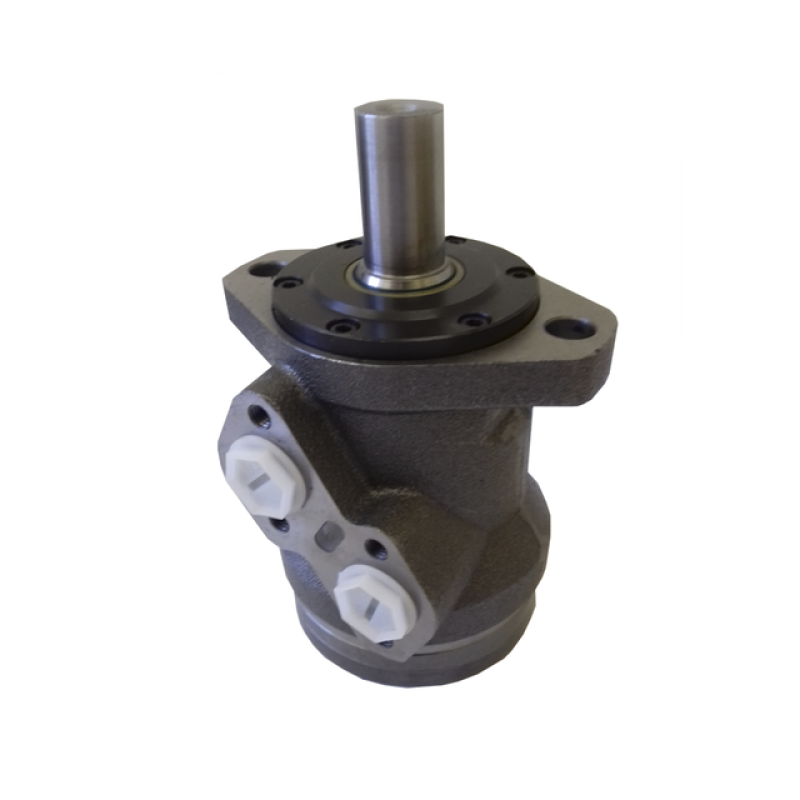

Gerotor Hydraulic Motor MP 100 C M+S Hydraulic (99 cm3, 10.5 kW, 605 rpm)

The MP 100 C gerotor hydraulic motor from the MP series by M+S Hydraulic (Bulgaria) is a reliable, compact unit designed for continuous operation at moderate pressures and short-term use under high loads. The product card indicates the brand: China. The model features low starting torque and high rotational speed, making it suitable for various special machinery and industrial equipment.

Description and Purpose

The MP 100 C is a gerotor hydraulic motor with a displacement of 99 cm³, offering a balance of efficiency and compactness. Thanks to the design features of the MP series, the motor is optimal for use in hydraulic systems of tractors, motorcycles, ATVs, boats, and other equipment where stable operation is required under various load conditions.

Shaft and Seals

• Shaft: Straight cylindrical Ø25 mm for key A8x7x32 DIN6885
• Shaft seal: Standard seal
• Other shaft options are available upon request (see specification in PDF)

Key Parameters

• Displacement: 99 cm³
• Max speed: 605 rpm
• Max torque: 193 Nm
• Max power: 10.5 kW
• Max operating pressure: 140 bar
• Flow rate: 60 l/min
• Weight: 6.1 kg
• Detailed technical information and specifications: PDF

Note: MP series hydraulic motors are supplied with an additional shaft seal (option D) by default.

Operating Recommendations

• Avoid simultaneous use of short-term maximum speed and maximum pressure.
• Recommended filtration corresponds to cleanliness class ISO 20/16. Nominal filtration is 25 microns or higher.
• Use high-quality mineral-based hydraulic oil HLP (DIN 51524) or HM (ISO 6743/4).
• Recommended minimum oil viscosity is 13 mm²/s (70 SUS) at 50°C.
• Maximum recommended system operating temperature is 82°C.
• To ensure optimal service life, before operating under maximum load, it is recommended to fill with fluid and allow the motor to run at moderate load and speed for 10–15 minutes.

Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Motors

Manufacturer: M+S Hydraulic (Bulgaria). Brand in product card: China.

This hydraulic motor is suitable for replacement in existing hydraulic circuits or for use in new projects requiring a compact and productive unit with a displacement of 99 cm³ and power up to 10.5 kW.
