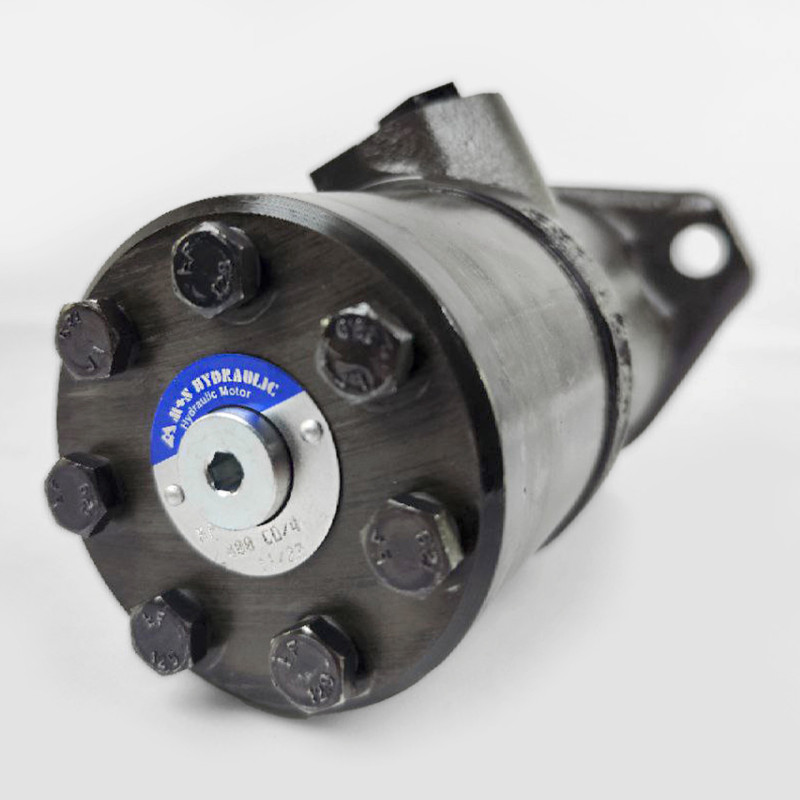

Gerotor Hydraulic Motor MP 400 CD/4 M+S Hydraulic

We offer the gerotor hydraulic motor MP 400 CD/4 from the manufacturer M+S Hydraulic (Bulgaria), produced under the Hydro-pack brand. This low-speed hydraulic motor has a displacement of 396 cm³/rev and is designed for a maximum operating power of 4.6 kW. The MP 400 CD/4 features a compact design and a reliable roller-free gear ring, making it suitable for continuous operation at moderate pressures or short-term operation under increased loads.

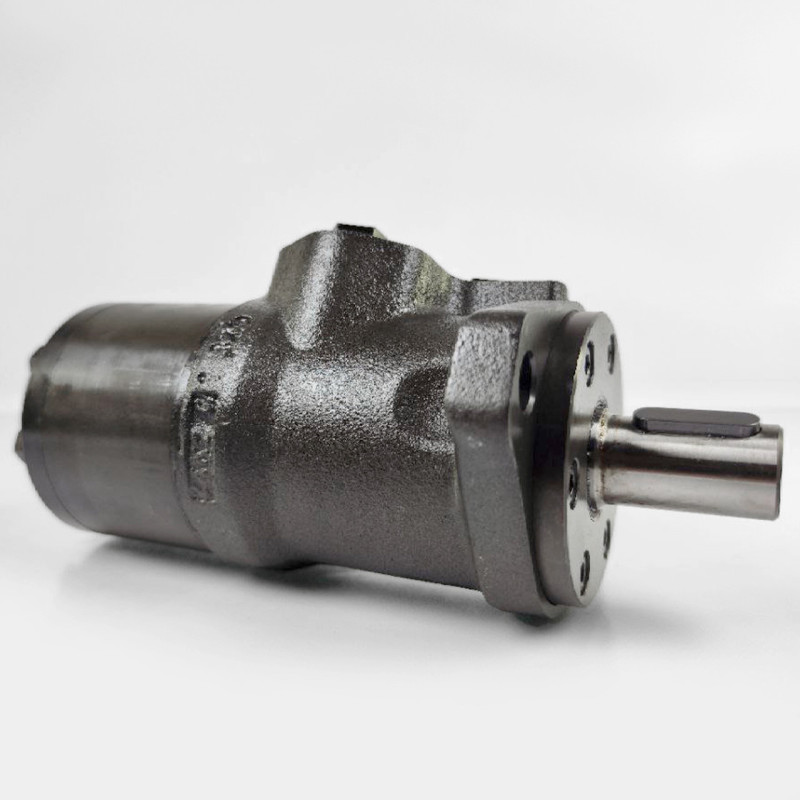

Design Features and Ports: The main ports are located on the side and have G1/2" threads; the drain port has a G1/4" thread. The MP series offers various shaft, flange, and port location options to meet specific customer requirements.

Shaft and Seals:

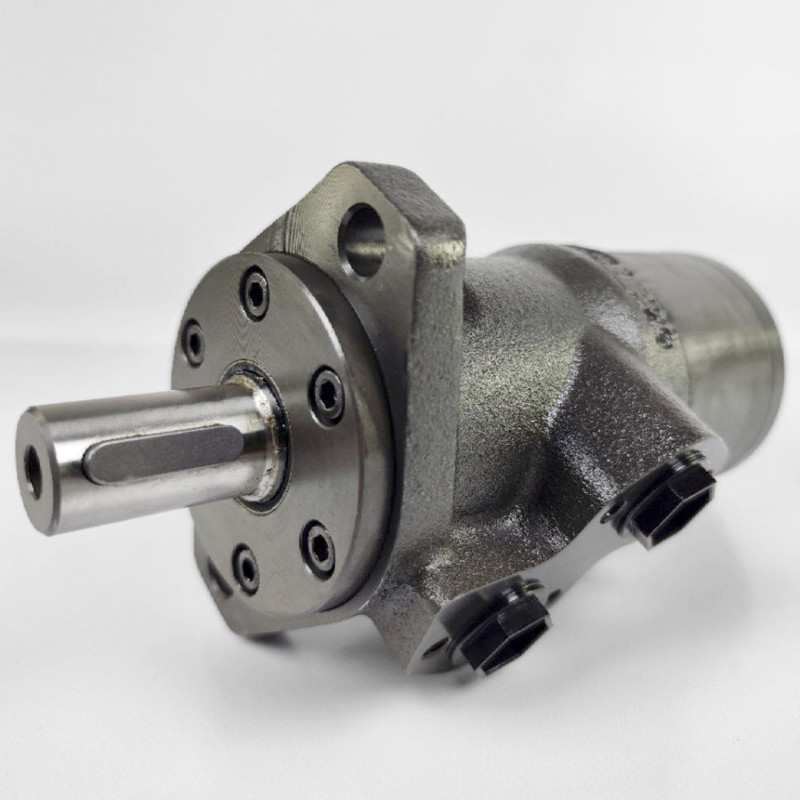

• Straight cylindrical shaft ø25 for key A8x7x32 DIN6885
• Standard shaft seal
• Other shaft options available upon request (details in PDF specification)

Main Technical Parameters of MP 400 CD/4

• Displacement: 396 cm³/rev
• Max. operating speed: 150 rpm
• Max. torque: 360 Nm
• Max. operating power: 4.6 kW
• Max. operating pressure: 70 bar
• Flow rate: 60 l/min
• Weight: 7.6 kg
• Detailed technical information and dimensions: PDF

Application and Operating Recommendations

The MP 400 CD/4 hydraulic motor is designed for various special machinery and industrial equipment: loaders, manipulators, road and municipal vehicles, stationary drive units, etc. To ensure reliable operation and long service life, follow these recommendations:

• Avoid simultaneous occurrence of short-term high speed and short-term high pressure.
• Recommended working fluid cleanliness according to ISO code 20/16; nominal filtration 25 microns or higher.
• Use high-quality mineral-based hydraulic oils: HLP (DIN 51524) or HM (ISO 6743/4).
• Recommended minimum kinematic viscosity: 13 mm²/s (≈70 SUS) at 50°C.
• Maximum recommended system operating temperature: 82°C.
• Before operating at maximum loads, fill the system with working fluid and allow the hydraulic motor to run at moderate load and speed for 10–15 minutes for break-in.

Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Motors

The gerotor hydraulic motor MP 400 CD/4 is a reliable and compact solution for low-speed drives with high torque loads; available shaft and flange configurations allow adapting the device to various engineering tasks, and technical parameters and maintenance recommendations will ensure long-term and stable operation in the system.
