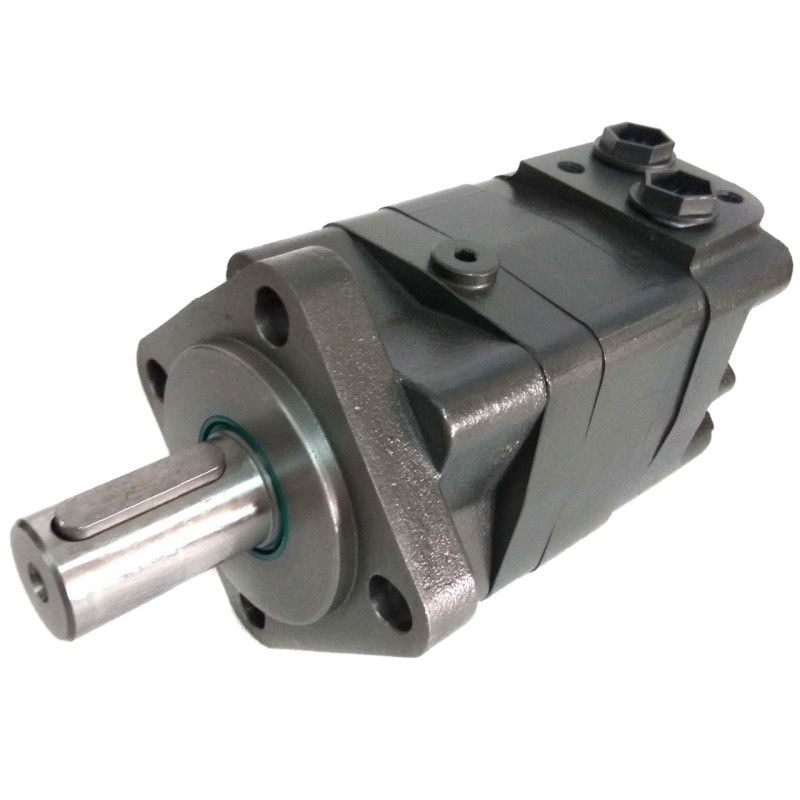

Gerotor Hydraulic Motor MS 315C M+S Hydraulic

The M+S Hydraulic MS 315C hydraulic motor is a reliable hydraulic unit, presented by the manufacturer M+S Hydraulic (Bulgaria) and offered under the Hydro-pack brand. This gerotor hydraulic motor has a displacement of 314.9 cm³/rev and a maximum power of 15 kW, belonging to the series of low-speed hydraulic motors designed for operation in harsh conditions.

Design and Features

The MS 315C is designed for long-term operation under constant high loads, using liquid lubricants and frequent changes in rotation direction. The main ports are located on the side and have G1/2" threads; the drain port is equipped with G1/4" threads. Thanks to robust tapered roller bearings, the hydraulic motor withstands both static and dynamic radial loads. The special design of the rotor and housing minimizes system losses, ensuring stable performance even at high operating pressure.

Shaft and Seals

• Straight shaft ø1¼, key 14T ANS B92.1-1970
• Standard shaft seal
• Other shaft options are available upon request (see specifications in PDF)

Application

• Various special and industrial machinery

Key Parameters

• Displacement: 314.9 cm³/rev
• Maximum speed: 240 rpm
• Torque: 825 Nm
• Maximum power: 15 kW
• Maximum operating pressure: 200 bar
• Flow rate: 75 l/min
• Straight ø32 shaft, for key A10x8x45 DIN6885: C
• Main ports: side, G1/2" thread; drain port: G1/4"
• Specification: M +S Hydraulic MS 315C (PDF)

The MS 315C hydraulic motor is well-suited for applications requiring high reliability at low rotational speeds and significant loads. Its robust design, high torque, and the option to choose individual shaft variants make it a versatile solution for traction, construction, and industrial machinery.

Manufacturer: M+S Hydraulic (Bulgaria). Brand under which it is offered for sale: Hydro-pack.
