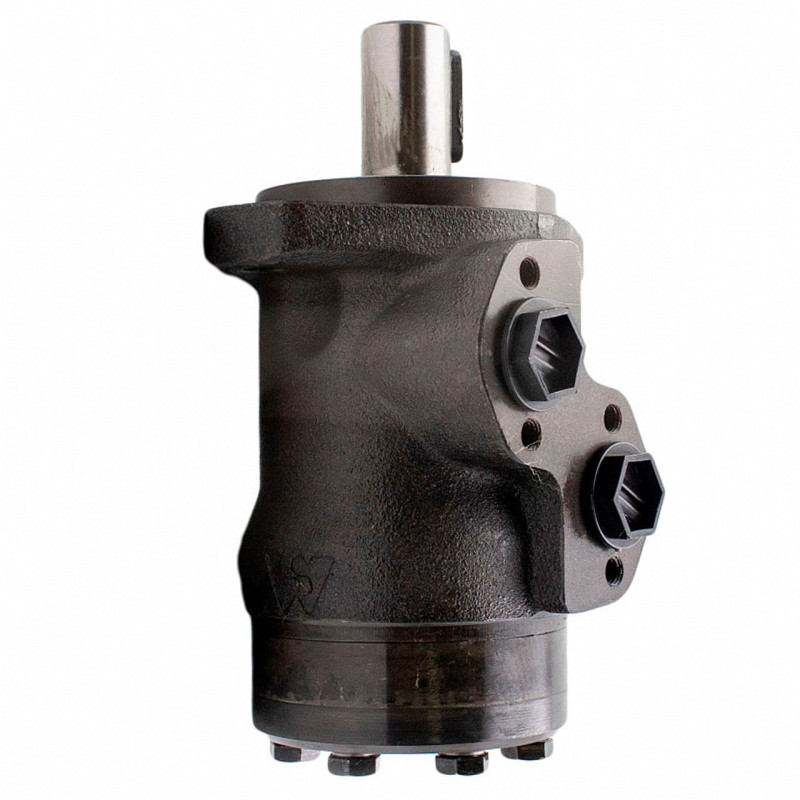

Gerotor Hydraulic Motor MP 160 C from M+S Hydraulic (Bulgaria)

Introducing the gerotor hydraulic motor MP 160 C — a reliable solution for driving various special machinery. Brand: Hidros. This motor has a displacement of 158.4 cm³ and a nominal power of 10.1 kW, designed for high speeds (maximum speed 378 rpm) and belongs to the MP series of low-torque, high-speed hydraulic motors. The series is optimized for continuous operation at moderate pressure or for short-term operation at elevated pressure; it is characterized by compact dimensions and operational reliability.

Shaft and Seals:

• Straight cylindrical shaft Ø25 for key A8x7x32 DIN6885
• Standard shaft seal
• Other shaft options available upon request (see specifications in PDF)

Application: universal application in various special machinery, agricultural and industrial equipment where compact and high-speed hydraulic drives are required.

Key Parameters:

• Displacement: 158.4 cm³
• Maximum rotational speed: 378 rpm
• Maximum torque: 313 Nm
• Maximum power: 10.1 kW
• Maximum operating pressure: 140 bar
• Flow rate: 60 l/min
• Weight: 6.4 kg
• Detailed information: PDF

Note: MP series hydraulic motors are supplied by default with an additional shaft seal (option D).

Operating Recommendations

• Short-term high speed and high pressure should not occur simultaneously.
• Recommended filtration corresponds to cleanliness class ISO 20/16. Nominal filtration is 25 microns or higher.
• Use high-quality mineral hydraulic oil type HLP (DIN 51524) or HM (ISO 6743/4).
• Recommended minimum oil viscosity is 13 mm²/s (≈70 SUS) at 50°C.
• Maximum recommended system operating temperature is 82°C.
• To ensure optimal hydraulic motor lifespan, before reaching maximum load, fill the system and allow the device to operate at moderate load and speed for 10–15 minutes to break in the seals and stabilize the temperature.

Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Motors.

The gerotor hydraulic motor MP 160 C is a combination of compactness, high rotational speed, and sufficient power (10.1 kW) for a wide range of tasks in agriculture, construction, and industry. Thanks to the option of ordering alternative shaft variants and the availability of an additional seal (option D), this hydraulic motor easily adapts to specific operating conditions.
