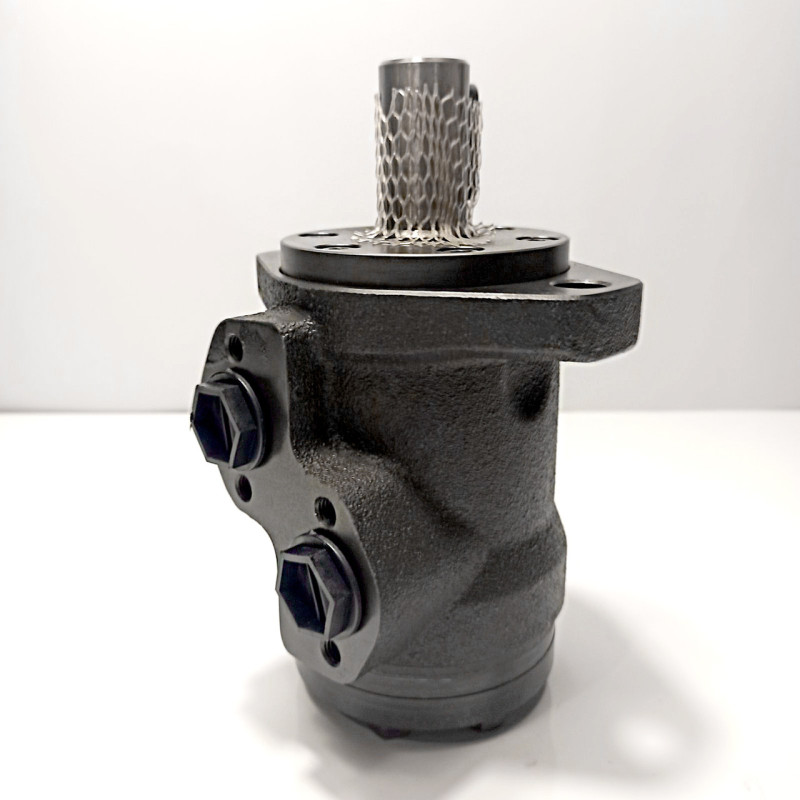

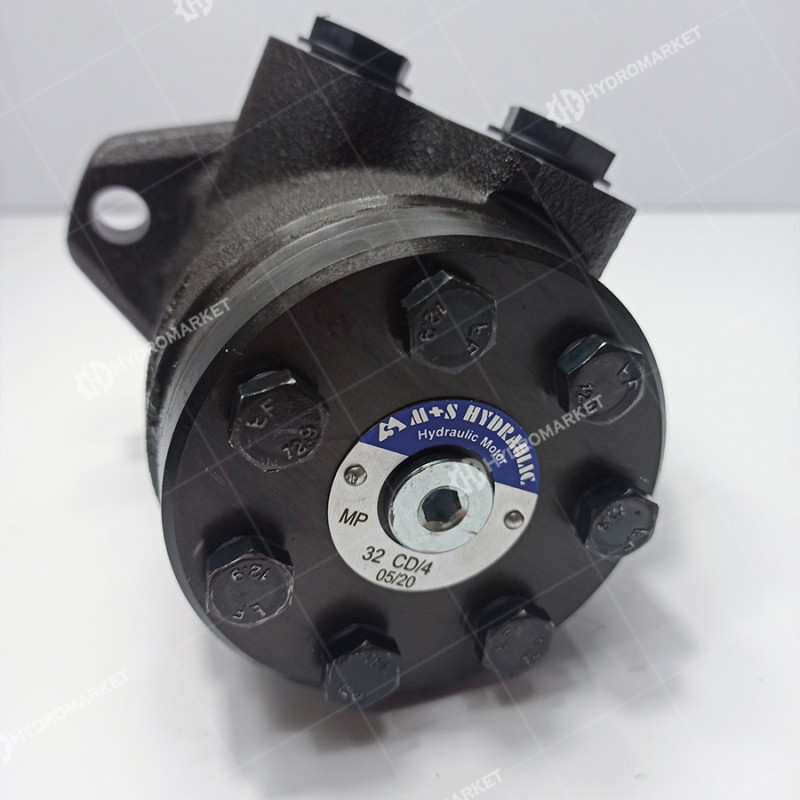

Gerotor Hydraulic Motor MP 32 C by M+S Hydraulic (Bulgaria)

The MP 32 C gerotor hydraulic motor from M+S Hydraulic is a reliable solution for special machinery and industrial installations. The model has a displacement of 34.5 cm³ and provides a maximum power of 5.8 kW at a maximum speed of 1450 rpm. This motor belongs to the low-torque, high-speed series, making it suitable for both continuous operation at moderate pressure and short-term cycles at high pressure. Its compact size makes it suitable for confined mounting spaces.

Shaft and Seals:

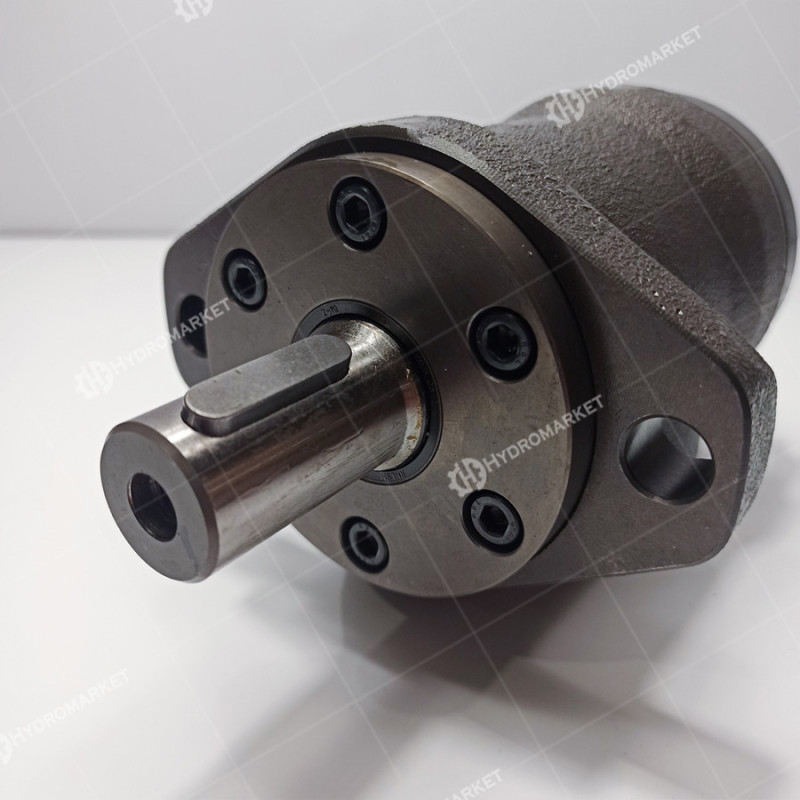

• Straight cylindrical shaft Ø25 with keyway A8x7x32 (DIN6885)
• Standard shaft seal
• Other shaft options available upon request (see specifications in PDF)

Applications: various special machinery and industrial equipment.

Key Parameters

• Displacement: 34.5 cm³
• Maximum speed: 1450 rpm
• Maximum torque: 43 Nm
• Maximum power: 5.8 kW
• Maximum operating pressure: 100 bar
• Flow rate: 50 l/min
• Weight: 5.6 kg
• Detailed information and technical drawings: PDF

MP series hydraulic motors are supplied with an additional shaft seal (option D) by default.

Operating Recommendations

• Do not allow simultaneous short-term operation in both speed and pressure.
• Recommended filtration corresponds to ISO cleanliness code 20/16; nominal filtration 25 microns or greater.
• It is recommended to use high-quality mineral-based hydraulic oil HLP (DIN 51524) or HM (ISO 6743/4).
• Minimum recommended oil viscosity: 13 mm2/s (70 SUS) at 50°C.
• Recommended maximum system operating temperature: 82°C.
• To ensure optimal hydraulic motor lifespan, fill the system with fluid and run the motor at moderate load and speed for 10–15 minutes before operating at maximum load.

This gerotor motor is ideal for applications requiring high rotational speed with limited torque: conveyors, pumping units, agricultural and municipal machinery, as well as other systems requiring compact and reliable hydraulic drives. Manufacturer: M+S Hydraulic (Bulgaria). Product category: Hydraulic Systems — Hydraulic Motors.
