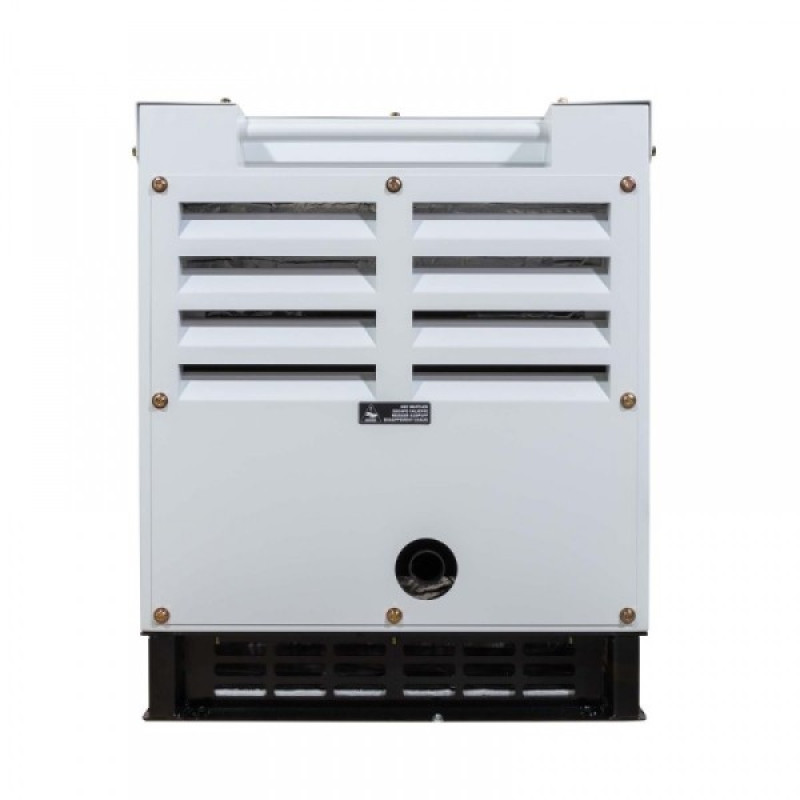

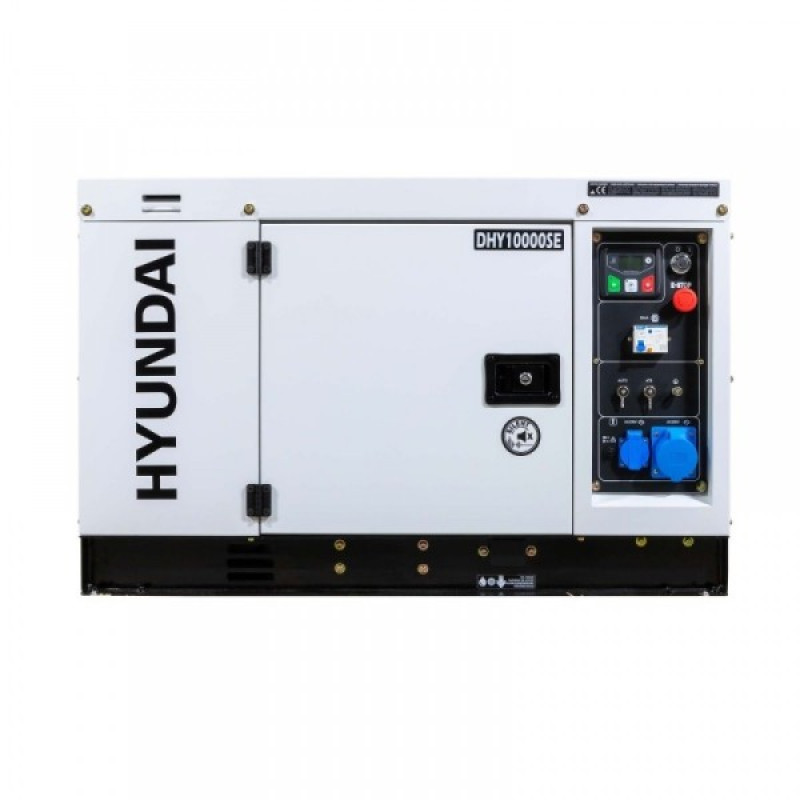

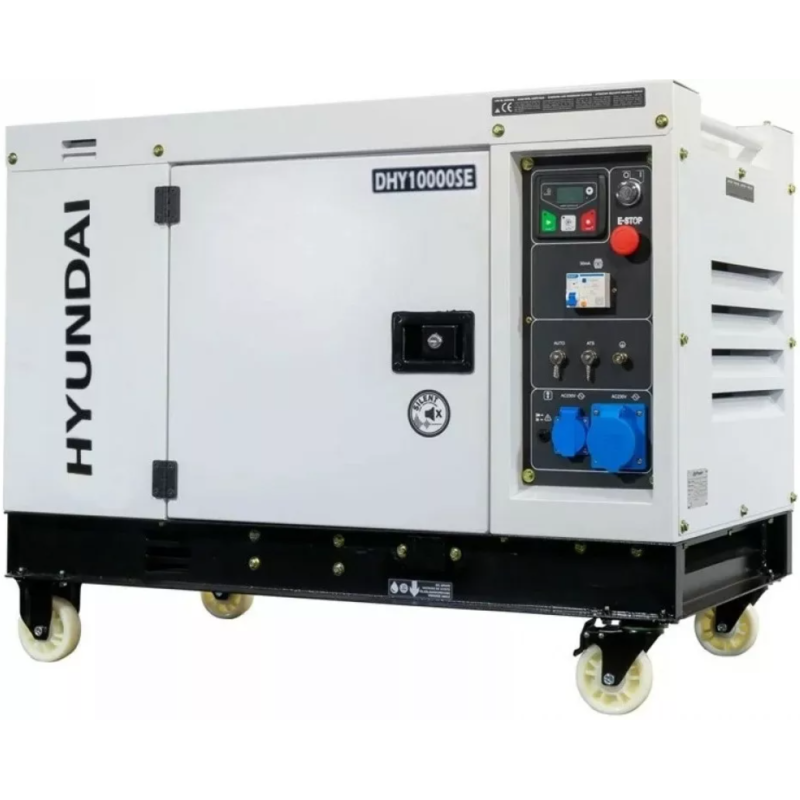

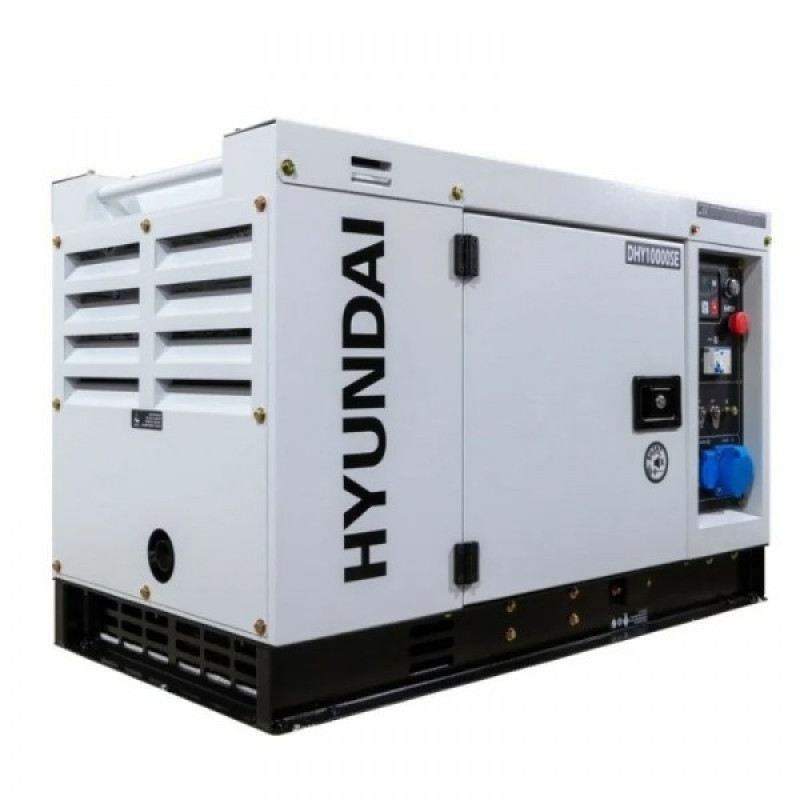

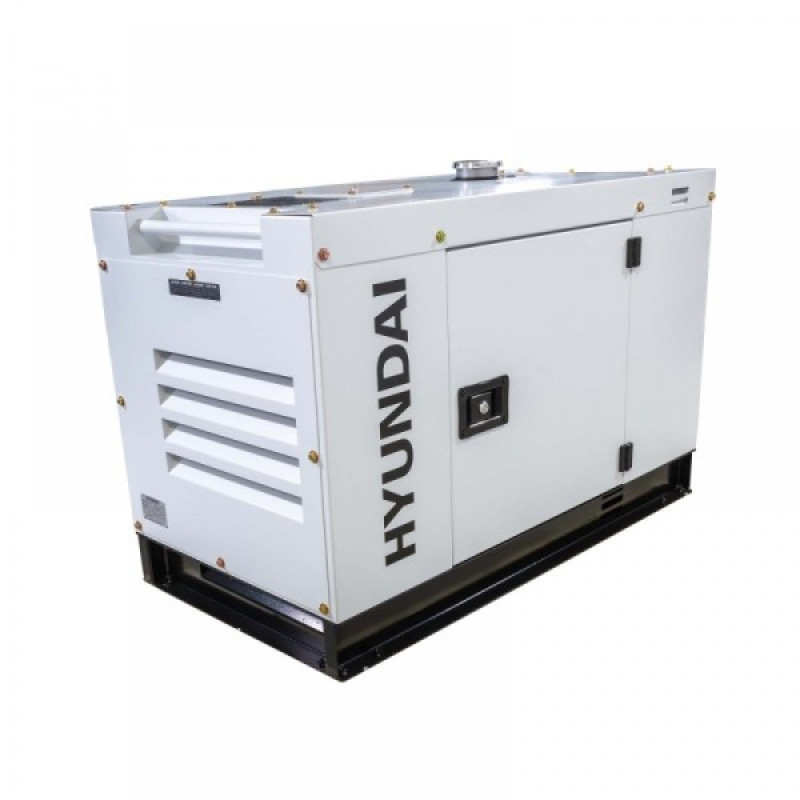

Hyundai DHY10000SE Diesel Generator (8.5 kW, ATS output)

Hyundai DHY10000SE is a reliable, premium-class diesel generator designed to provide long-term and stable backup power. This model is ideal for supplying electricity to large private homes, cottages, farms, and commercial facilities such as offices, small production sites, and stores. Thanks to its ATS output, the unit is ready for backup power automation, allowing for continuous energy supply without operator intervention.

• Full-fledged backup power for private and agricultural facilities.

• Application in commercial facilities (offices, retail outlets, small production sites).

• Suitable for facilities requiring backup automation due to ATS support.

Technical Specifications

• Power:

  • Rated (1ph): 8.5 kW

  • Maximum (1ph): 9.5 kW

• Number of phases: Single-phase (1ph), output voltage 230 V.

• Fuel type: Diesel.

• Engine: 4-stroke Hyundai diesel engine, known for exceptional fuel efficiency and a service life of up to 4000 engine hours.

• Housing type: Enclosed, sound-absorbing casing for noise reduction and protection from external environmental factors.

• Current quality: AVR (automatic voltage regulator) system ensures a stable sinusoidal voltage waveform, safe for sensitive electronics.

• Alternator: Synchronous alternator with 100% copper winding for increased reliability and durability.

Key Features and Benefits

• 1. ATS Support: Features a dedicated output and readiness for connecting an automatic transfer switch (ATS) unit, allowing for automatic generator activation upon main power outage.

• 2. Start type: Electric start (SE) with battery ensures quick and reliable startup in any season.

• 3. Fuel efficiency: Diesel fuel and an efficient engine design guarantee minimal fuel consumption during extended operation.

• 4. Autonomy: A spacious fuel tank, approximately 15–16 L, allows for longer operation without refueling, which is convenient for remote locations and critical situations.

• 5. Mobility: Integrated wheels and handles facilitate generator transport even with the unit's significant weight.

This Hyundai generator combines high power and fuel efficiency, modern voltage regulation systems, and a robust synchronous alternator with copper winding. The enclosed sound-absorbing casing makes the unit's operation more comfortable in areas with high noise level requirements. Automatic transfer switch (ATS) support and electric start with battery make the DHY10000SE model an optimal choice for facilities where continuous power and rapid power restoration are critical.

With this generator, you get a reliable backup power source with a rated power of 8.5 kW and a maximum of 9.5 kW, allowing it to power a wide range of household and commercial loads. The model runs on diesel fuel and is designed for intensive use, possessing all key characteristics for application in the private, agricultural, and commercial sectors.
