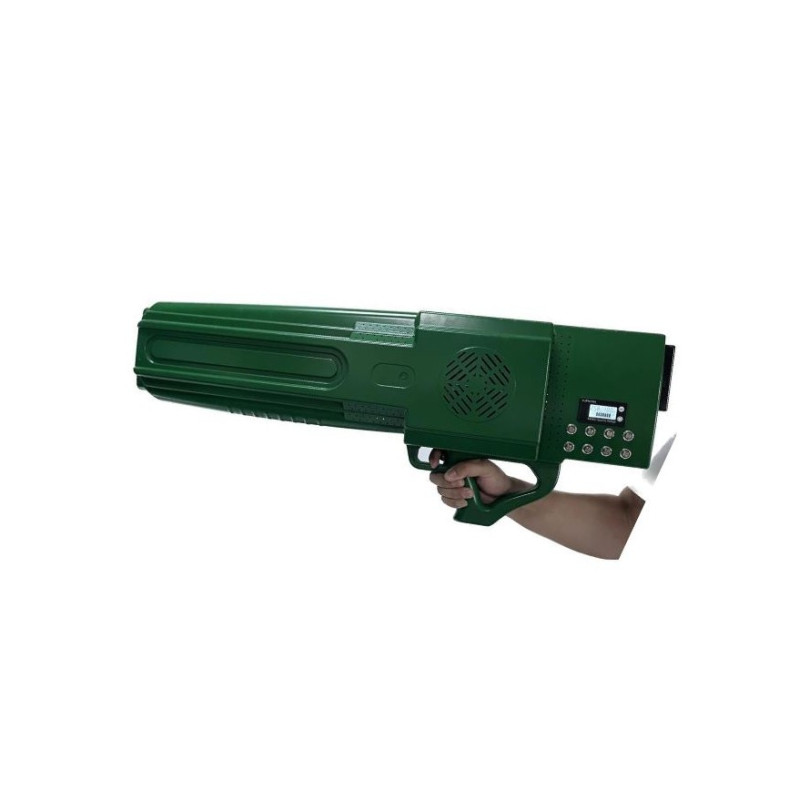

Anti-Drone Gun TX-T08 — Effective 8-Channel Device from Nvectech

Anti-Drone TX-T08 is a professional UAV jammer from Nvectech, designed for reliable blocking of drone control and navigation signals. The device features 8 channels and a total output power of 160 W, ensuring stable suppression across a wide range of frequencies. Compact dimensions of 780*302*165 mm and a weight of approximately 5.4 kg make the TX-T08 convenient for transport and rapid deployment in field conditions or as a stationary protection tool.

Key Advantages

• 8 channels for parallel coverage of the most common drone frequency bands.
• Total output power of 160 W for reliable signal jamming.
• Universal frequency coverage from 433 MHz to 5.8 GHz.
• Built-in 24 V 15 A lithium-ion battery with 40–50 minutes of autonomy, with the option to connect an external battery for extended operation.
• Compact dimensions of 780*302*165 mm and a weight of approximately 5.4 kg for mobile use.

Description and Applications

The Anti-Drone TX-T08 is intended for security companies, government agencies, military units, special operations, and the protection of large infrastructure or mass events from unauthorized UAVs. In real-world conditions, the effective operating range is 2000 to 2500 meters depending on the environment, allowing for control of airspace over a significant distance. Reliable construction and a well-designed channel configuration ensure quick adaptation to various anti-drone protection tasks.

Technical Specifications

Frequencies and Channel Output Power

The TX-T08 covers the main frequency bands used in commercial and amateur UAVs, with power distribution per channel:

• 410-485 MHz (433 MHz) — 10 W
• 840-920 MHz (900 MHz) — 10 W
• 1100-1280 MHz (1.2 GHz) — 10 W
• 1400 MHz (1.4 GHz) — 10 W
• 1559-1620 MHz (1.5 GHz) — 30 W
• 2400-2500 MHz (2.4 GHz) — 30 W
• 5150-5350 MHz — 30 W
• 5725-5850 MHz (5.8 GHz) — 30 W

Internal Antenna Gain

The built-in antennas have gain that allows for effective energy focusing on the required frequencies and enhances the jamming effect:

• 433 MHz — 5 dBi
• 900 MHz — 9 dBi
• 2400 MHz — 14 dBi
• GPS L1-L5 (1.2 GHz 11 dBi / 1.5 GHz 12 dBi)
• 5200 MHz — 16 dBi
• 5800 MHz — 16 dBi

Manufacturer and Purpose

Manufacturer: Nvectech. The device features a reliable design and flexible channel configuration, allowing the TX-T08 to be used as part of a comprehensive anti-drone defense system or as a standalone tool for local drone suppression. If a compact and powerful device for rapid deployment is needed, the TX-T08 is an optimal choice.
