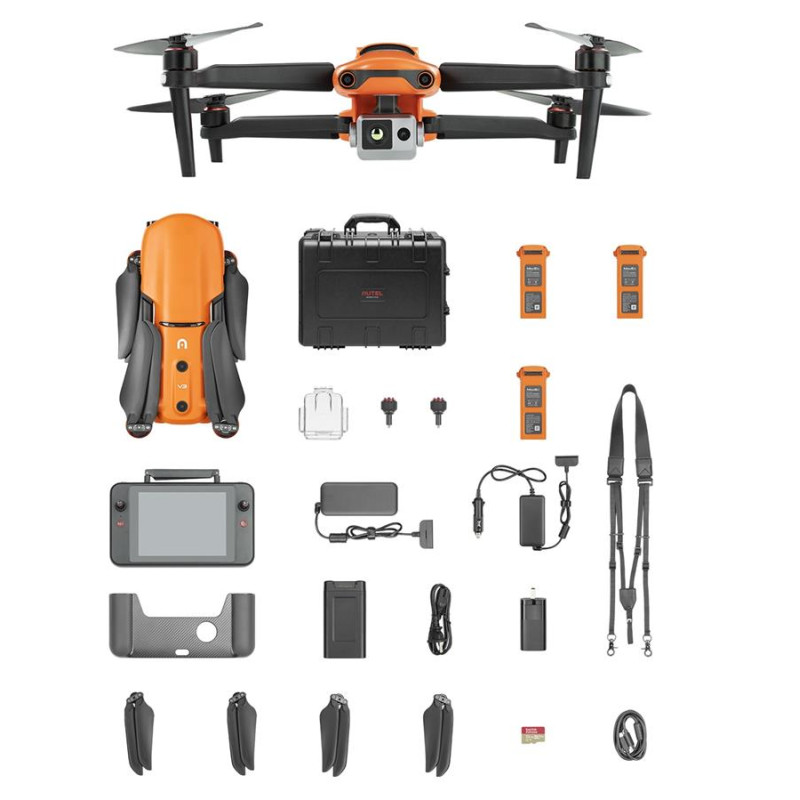

- Drone (with battery, propellers, gimbal cover, and 32GB SD card) — 1
- Autel Smart Controller V3 - 1
- Spare battery – 1
- Spare pair of propellers - 2
- Charger and power cable – 1
- Car charger - 1
- Multi-charger - 1
- Controller charger and charging cable - 1
- Spare control sticks – 2
- Controller lanyard – 1
- Controller protective case - 1
- Protective hard case - 1
Autel EVO II Dual 640T V3: Power. Efficiency. Reliability.
Features:
- Interchangeable payload - 920g lifting capacity
- 38 minutes flight time
- 15 km video transmission range
- Level 8 wind resistance
- Max flight speed 20 m/s
- Video live streaming
- Open SDK
New Generation Thermal Imager
New generation thermal imager
Autel Robotics' new generation thermal sensor features a resolution of up to 640x512 at 30 frames per second. It comes standard with a 13mm lens, 16x digital zoom, and the ability to detect objects up to 100m away.
The 640x512 resolution thermal sensor provides higher quality than any similar camera in its class, allowing pilots to see deep details in the dark.
DRI Ranges
DRI stands for Detection, Recognition, and Identification.
| Human | SUV | Truck | |
| Dimensions | 1.8*0.5 m | 4.2*1.8 m | 6*4 m |
| Detection | 542 m | 1661 m | 2889 m |
| Recognition | 135 m | 415 m | 722 m |
| Identification | 68 m | 208 m | 361 m |
• Detection: detecting an object.
• Recognition: determining the type of object (e.g., human, vehicle, or aircraft).
• Identification: reliably distinguishing friend/foe.
Multiple Temperature Measurement Modes
- Center temperature measurement | Spot temperature measurement | Regional temperature measurement
- 10 Thermal color palettes
- Picture-in-picture display mode
- Temperature alarm | Isotherm | Image enhancement
- Powerful infrared thermal analysis tool
Capture and Preserve Even the Smallest Details
50-Megapixel Ultra-Sensitive Camera
The EVO II Dual 640T V3's RYYB sensor features Moonlight Algorithm 2.0, which provides excellent noise reduction in low-light conditions, and its 50-megapixel camera further enhances detail for higher quality forensic examination and analysis.
0.8-inch Sensor Size
The EVO II Dual 640T V3's 0.8-inch RYYB CMOS sensor offers 144–233% larger surface area compared to 1/2-inch or 1/2.3-inch competitors for maximum detail in high-contrast lighting conditions.
RYYB Sensor Technology
RYYB sensor technology deviates from RGB cameras, offering up to 40% greater light sensitivity in low-light conditions.
PDAF+CDAF Autofocus System
Never lose track of subjects with the combination of PDAF (Phase Detection Autofocus) and CDAF (Contrast Detection Autofocus) technologies for fast and accurate tracking.
Full Scene Capture
The system supports 16x digital zoom and 4x lossless zoom, ensuring safe long-range image acquisition and detailed scene analysis.
4K HDR for Greater Dynamic Range
4K HDR automatically balances overexposure and underexposure when shooting high-contrast scenes, creating clearer images with more layers.
SkyLink 2.0
SkyLink 2.0 is built into the EVO II V3 chipset, expanding capabilities for critical workflows.
15+ km
Do more because you can fly further.
QHD
Incredible video resolution within a mile, suitable for most common use cases.
2.4 GHz/5.8 GHz/900 MHz
Supports tri-band communication with automatic frequency hopping for maximum interference protection.
* 900 MHz applies only to FCC countries.
360° Obstacle Avoidance
Equipped with 19 groups of sensors, including 12 visual sensors, main camera, ultrasound, IMU, and other sensors, allowing for real-time 3D mapping and path planning.
Practical and Convenient Features
- Quick deployment - in 45 seconds
- No no-fly zones
- No forced updates
- Not subject to ITAR regulations
Industry-Leading Performance
Autel Smart Controller V3
The Smart Controller V3's 7.9-inch high-brightness screen with 2000 nits is clearly visible even in direct sunlight. SkyLink 2.0 transmission technology ensures long-range operation up to 14 km and improves anti-interference capabilities with tri-band frequency hopping. The custom Android system provides additional flexibility with third-party apps, and the IP43 rating ensures operation in all weather conditions.
- 7.9-inch HD touchscreen
- Temperature range from -20 °C to 40 °C
- Max brightness 2000 nits
- IP43 protection
Areas of Application
Power Line Inspection
Reduce costs, increase safety, and improve inspection workflow.
Firefighting
Locate hot spots, provide surveillance, and reduce response time.
Public Safety
Conduct surveillance, forensic examination, accident reconstruction, and crowd monitoring.
Search and Rescue
Identify objects, reduce response time, and optimize search area with mission planning
Chemical Industry
Inspect plants more efficiently, increasing occupational safety and reducing costs
Solar Industry
Optimize the inspection process, detect defects or faulty equipment with a thermal imager
Autel EVO II Dual 640T Specifications
Drone
| Takeoff Weight | 1150 g |
| Maximum Takeoff Weight | 1999 g |
| Size (L * W * H) | 508*634*111 mm (with propellers) |
| 258*368*111 mm (without propellers) | |
| Wheelbase | 397 mm |
| Max Flight Time (no wind) | 38 min |
| Max Hovering Time (no wind) | 33 min |
| Max Horizontal Flight Speed | 20 m/s (Ludicrous mode) |
| Max Ascent Speed | 8 m/s (Ludicrous mode) |
| Max Descent Speed | 4 m/s (Ludicrous mode) |
| Max Flight Range (no wind) | 22 km |
| Max Angular Velocity | 120 ° / s |
| Max Service Ceiling | 7000 m |
| Max Wind Resistance | 12 m/s (takeoff and landing) |
| Operating Temperature Range | -10°C ~ 40°C |
| Operating Frequency | 902-928MHz (FCC only); 2.400–2.4835 GHz; 5.725–5.850 GHz |
| Transmission Power | 900M |
| FCC/ ISED:≤31dBm | |
| 2.4G | |
| FCC/ISED: ≤27 dBm | |
| SRRC/CE/MIC/RCM:≤20dBm | |
| 5.8G | |
| FCC/ISED/SRRC/MIC: ≤27dBm | |
| CE/RCM:≤14dBm | |
| Hovering Accuracy | Vertical: ±0.1 m (with normal visual positioning operation); |
| ±0.5 m (with normal GNSS operation) | |
| Horizontal: ±0.3 m (with normal visual positioning operation); | |
| ±1.5 m (with normal GNSS operation) | |
| GNSS | GPS/Beidou/Glonass/Galileo |
| Storage | 8GB |
| SD Memory | max. support 256GB (UHS-3 or Class-10) |
Gimbal
| Mechanical Range | Tilt: -135 ° to +45 ° |
| Pan: -100 ° to +100 ° | |
| Controllable Rotation Range | Tilt: -90 ° to +30 ° |
| Pan: -90 ° to +90 ° | |
| Gimbal | Three-axis stabilization |
| Max Control Speed (tilt) | 300 ° / s |
| Angular Vibration Range (°) | ±0.005° |
Remote Control and Data Transmission
| Operating Frequency | 902-928MHz (FCC only); 2.400–2.4835 GHz; 5.725–5.850 GHz |
| Max Transmission Distance (unobstructed, no interference) | FCC: 15 km |
| CE: 8 km | |
| Transmission Power | FCC:≤33dBm |
| CE:≤20dBm@2.4G,≤14dBm@5.8G | |
| SRRC:≤20dBm@2.4G,≤33dBm@5.8G/5.7G | |
| Remote Control Screen | 2048x1536 60fps |
| Remote Control Battery | 5800 mAh |
| Operating Time | 3 hr (max brightness) |
| 4.5 hr (50% brightness) | |
| Charging Time | 2 hr |
| Storage | ROM 128GB |
Sensor System
| Sensor System Type | Omnidirectional sensing system |
| Front | Precise measurement range: 0.5-18 m |
| Effective detection speed:
Specifications
Kit Contents
Weight (kg)
10.24
